Overview
BrotherHobby SE 2808 1350KV Motor (CW) is a brushless motor designed for 6S setups. It features a 12N14P configuration, M5 prop adapter shaft thread, and lightweight 58.2 g construction.
Key Features
- CW rotation version
- SUS420 heat-treated steel shaft
- 7075 aluminum caps (hard anodized) and hollow-carved design for weight saving and heat dissipation
- N52H arc magnet rotor
- Premium high-precision bearings (Japanese NMB 12 x 6 x 4)
- TU1 grade enameled wire
- Ultra-thin non-oriented silicon steel sheet stator (0.2 mm Kawasaki silicon steel)
Specifications
| Model | SE 2808 |
|---|---|
| KV | 1350KV |
| Configuration | 12N14P |
| No. of Cells (LiPo) | 6S |
| Base casing | Al 7075 |
| Bell cap | Al 7075 |
| Shaft | SUS420 |
| Prop adapter shaft thread | M5 |
| Bolt pattern | M3 (19 x 19 mm) |
| Bearings | Japanese NMB 12 x 6 x 4 |
| Rotor / Magnet | N52H arc magnets |
| Stator | 0.2 mm Kawasaki silicon steel |
| Stator dimension | 28.00 mm |
| Stator height | 8 mm |
| Motor dimension | 33.3 x 36.2 mm |
| Weight | 58.2 g |
| Wire AWG | 18# (25 cm length / 250 mm length) |
| Internal resistance | 52.00 m |
| Idle current @ 10V | 1.02A/10V |
| Insulation resistance | >= 0.5M |
| Coil test | PASS |
| Dynamic balance requirement standard | <= 3mg |
| Max power (test report) | 1646.96 W |
| Max current (test report) | 69.20 A |
| Max thrust (test report) | 2734 g |
| Test propeller | HQ 8X4.5X3 |
| Test ESC | 6S 80A |
Prop Test Report (6S, HQ 8X4.5X3)
| Throttle (%) | Voltage (V) | Current (A) | RPM | Thrust (gf) | Input Power (W) | Thrust efficiency (G/W) |
|---|---|---|---|---|---|---|
| 30 | 25.20 | 8.00 | 9215 | 765.00 | 201.60 | 3.79 |
| 40 | 25.20 | 10.50 | 10188 | 982.00 | 264.60 | 3.71 |
| 50 | 25.20 | 19.60 | 12125 | 1421.00 | 493.92 | 2.88 |
| 60 | 25.20 | 30.30 | 13667 | 1816.00 | 763.56 | 2.38 |
| 70 | 25.10 | 35.80 | 14351 | 2019.00 | 898.58 | 2.25 |
| 80 | 24.90 | 49.70 | 15023 | 2325.00 | 1237.53 | 1.88 |
| 90 | 24.50 | 56.10 | 15689 | 2460.00 | 1374.45 | 1.79 |
| 100 | 23.80 | 69.20 | 15963 | 2734.00 | 1646.96 | 1.66 |
Copper wire temperature (motor inside copper wire): 104C. Ambient temperature: 26C. Temperature measured with motor running 2 minutes at 100% throttle.
Whats Included
- SE 2808 motor x1
- M3 x 8 screw x4
- M5 flange nut x1
Applications
- 6S multirotor builds requiring a 2808-class 1350KV brushless motor
- Setups using HQ 8X4.5X3 propellers (as per the test report)
For compatibility questions (mounting, props, ESC selection) or support, contact [email protected] or visit https://rcdrone.top/.
Details

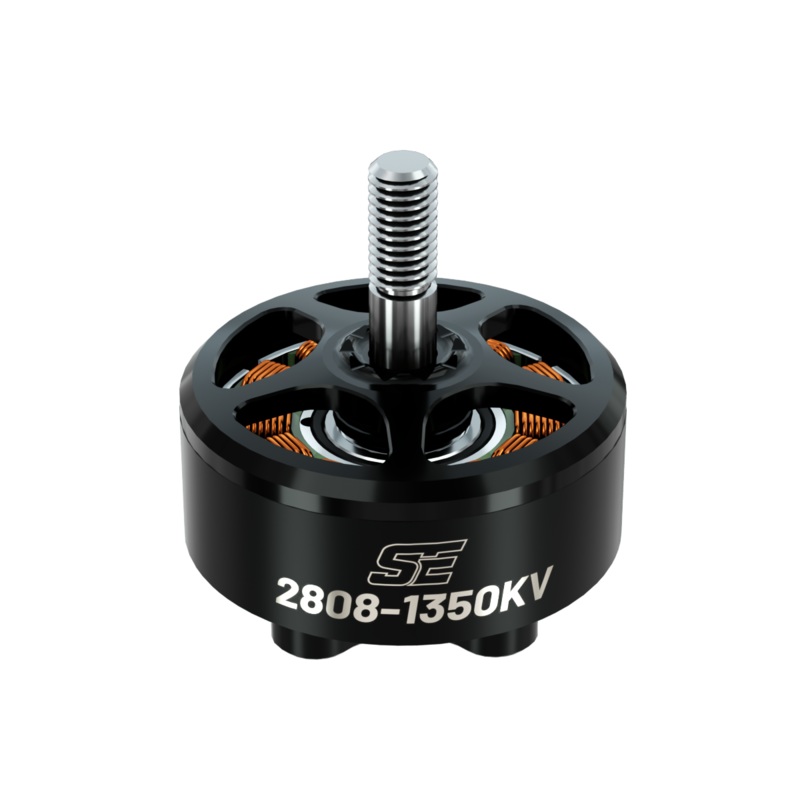

The BrotherHobby SE 2808 1350KV brushless motor features a threaded shaft and a clearly labeled motor bell for quick identification during setup.
BrotherHobby SE 2808 1350KV CW motor lists 58.2g weight and up to 2734g thrust on 6S (23.8V) with an HQ 8×4.5×3 prop.
The BrotherHobby SE 2808 1350KV CW brushless motor features a compact black housing with a threaded shaft for secure prop mounting.
BrotherHobby SE 2808 1350KV CW motor uses a SUS420 steel shaft, 7075 aluminum caps, N52H magnets, and precision bearings in a compact 2808 form factor.
The BrotherHobby 2808 motor includes four M38 screws and an M5 flange nut for mounting and installation.
The BrotherHobby SE 2808 1350KV motor report includes key specs like 12N14P configuration, 58.2 g weight, and 6S test data with an HQ 8×4.5×3 prop.
