Overview
BrotherHobby SE 2816 810KV Motor (CW) is a brushless motor designed for 6S LiPo setups. It features a 12N14P configuration, Al 7075 housing components, and an M5 prop adapter shaft thread.
Key Features
- SUS420 heat-treated steel shaft
- Al 7075 base casing and bell cap
- N52H arc magnets (rotor)
- Japanese NMB bearings (12 x 6 x 4)
- 0.2mm Kawasaki silicon steel stator material
- 18# wire, 25cm length
Specifications
| Model | SE 2816 |
| KV | 810KV |
| Rotation | CW |
| No. of Cells (LiPo) | 6S |
| Configuration | 12N14P |
| Base casing | Al 7075 |
| Bell cap | Al 7075 |
| Stator | 0.2mm Kawasaki silicon steel |
| Stator dimension | 28.00 mm |
| Stator height | 12 mm |
| Motor dimension | phi34 x 46.2 mm |
| Prop adapter shaft thread | M5 |
| Shaft material | SUS420 |
| Bolt pattern | M3 (19 x 19mm) |
| Bearings | Japanese NMB 12 x 6 x 4 |
| Rotor / Magnet | N52H arc magnets |
| Wire | 18# (25cm length) |
| Weight | 98.5g |
| Weight including cable | 98.45g |
| Internal resistance | 74.60 mOhm |
| Idle current @ 10V | 1.36A/10V |
| Insulation resistance | >= 0.5MOhm |
| Dynamic balance requirement standard | <= 3mg |
| Coil test | PASS |
6S Prop Test Report (HQ 10x5x3)
| Throttle | 100% |
| ESC | 6S 55A |
| Propeller | HQ 10x5x3 |
| Max thrust | 3538 gf |
| Max power | 1302.72 W |
| Max current | 55.20 A |
| Voltage (at 100%) | 23.6 V |
| Thrust efficiency (at 100%) | 2.72 g/W |
| Copper wire temperature | 109C (ambient 30C) |
Load Test Data (HQ 10x5x3)
| Throttle (%) | Voltage (V) | Current (A) | RPM | Thrust (gf) | Input Power (W) | Thrust efficiency (g/W) |
|---|---|---|---|---|---|---|
| 30 | 24.00 | 3.40 | 5123 | 482.00 | 81.60 | 5.91 |
| 40 | 24.00 | 6.20 | 6288 | 870.00 | 148.80 | 5.85 |
| 50 | 24.00 | 13.10 | 8159 | 1471.00 | 314.40 | 4.68 |
| 60 | 24.00 | 17.30 | 8792 | 1793.00 | 415.20 | 4.32 |
| 70 | 23.90 | 26.50 | 10163 | 2286.00 | 633.35 | 3.61 |
| 80 | 23.80 | 37.60 | 10935 | 2885.00 | 894.88 | 3.22 |
| 90 | 23.80 | 42.10 | 11613 | 3082.00 | 1001.98 | 3.08 |
| 100 | 23.60 | 55.20 | 12368 | 3538.00 | 1302.72 | 2.72 |
Temperature value is the inside copper wire temperature after running 2 minutes at 100% throttle. Test data is for reference only.
What’s Included
- 2816 motor x1
- M3 x 8 screw x4
- M5 flange nut x1
For installation questions or compatibility checks, contact support at https://rcdrone.top/ or [email protected].
Details

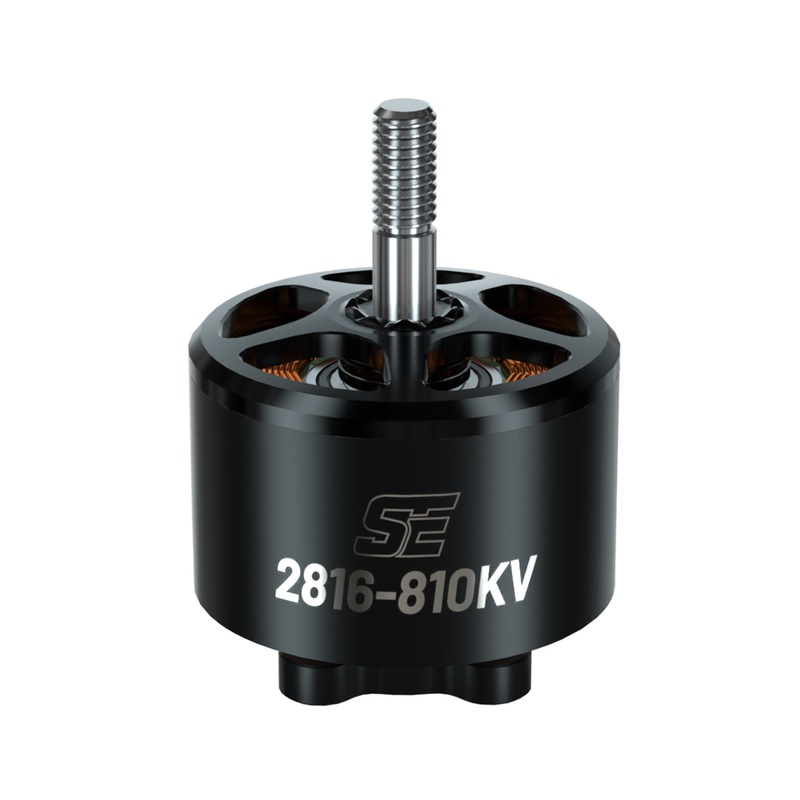

The BrotherHobby SE 2816 810KV CW brushless motor features a black can body with a silver shaft for straightforward installation.
BrotherHobby SE 2816 810KV motor specs list up to 3538g thrust at 100% throttle with an HQ 10x5x3 prop on 6S 23.6V (55A ESC), and a 98.5g motor weight.
The BrotherHobby SE 2816 810KV brushless motor is designed to pair with a 10-inch prop for high-speed flight.
The SE 2816 810KV motor uses a SUS420 steel shaft, 7075 aluminum caps, N52H magnets, and 4M3 mounting for reliable builds.
BrotherHobby SE 2816-810KV brushless motor comes with four M38 screws and an M5 flange nut for mounting.
BrotherHobby SE 2816 810KV motor documentation includes a dimension drawing plus 6S test data with an HQ 10x5x3 prop.
