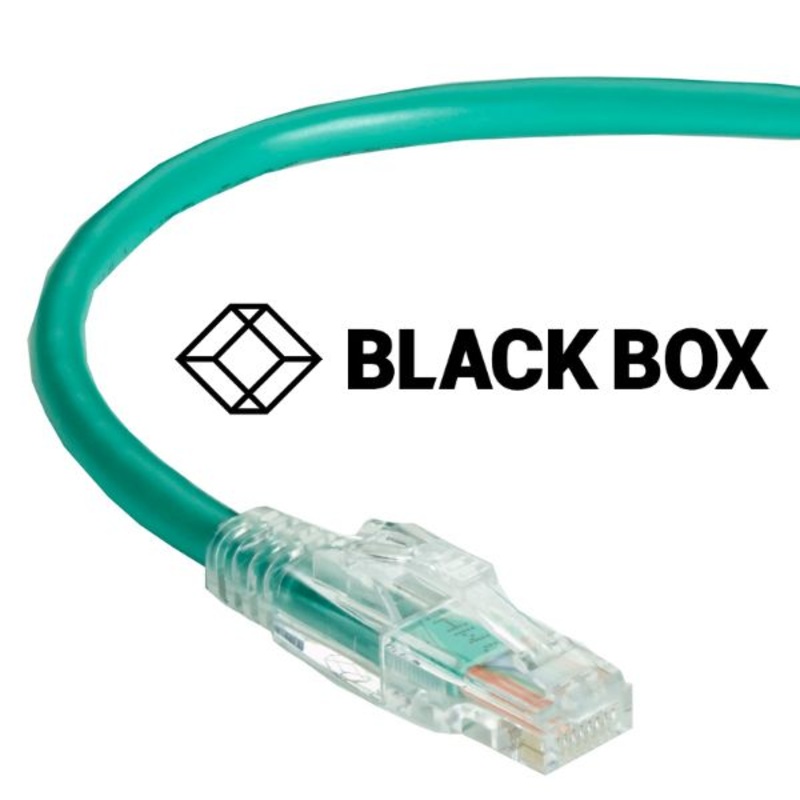

GigaTrue 3 CAT6 550MHz Lockable Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M)

• Use for all your network connections.
• Insert the optional Locking Pin to lock down ports.
• Tested to 550 MHz.
• Prevent unauthorized personnel from disrupting vital network connections.
• Protect publicly accessible network connections.
• Avoid downtime from accidental disconnects.
• Cables stay locked in placeuntil YOU take them out.

• ACR	20.5 dB at 100 MHz; 0 dB at 250 MHz
  ACRF	27.8 dB at 100 MHz; 19.8 dB at 250 MHz 13.0 at 550 MHz
  Capacitance Unbalance	Pair to ground: 330 pF/100 m maximum
  Conductor Gauge	24 AWG stranded UTP CM
  DC Resistance Unbalance	5% maximum
  Delay Skew	40 ns/100 m (328 ft.) maximum
  Diameter	0.22 (5.7 mm)
  Impedance	100 15 ohms at 100 MHz; 100 22 ohms at 100550 MHz
  Insertion Loss (Maximum)	23.8 dB at 100 MHz; 39.3 dB at 250 MHz; 62.2 dB at 550 MHz
  Jacket	PVC CM
  Mutual Capacitance	56 pF/m maximum
  NEXT	44.3 dB at 100 MHz; 38.3 dB at 250 MHz; 33.2 dB at 550 MHz
  Propagation Delay	550 MHz 535.5 ns/100 m maximum
  PSACR	18.5 dB at 100 MHz
  PSACRF	24.8 dB at 100 MHz; 16.8 at 250 MHz; 10.0 at 550 MHz
  PSNEXT	42.3 dB at 100 MHz; 36.3 dB at 250 MHz; 31.2 dB at 550 MHz
  Resistance	9.09 ohms/100 m (328 ft.)
  Return Loss	19.0 dB at 100 MHz; 15.6 dB at 250 MHz
  Standards	TIA/EIA568C.2 Category 6; ISO/IEC 11801 Class E; UL 444; EN713 EPA 3050B; 2002/95/EC RoHS
  Structured Return Loss	22.5 dB at 100 MHz; 20.5 dB at 250 MHz
