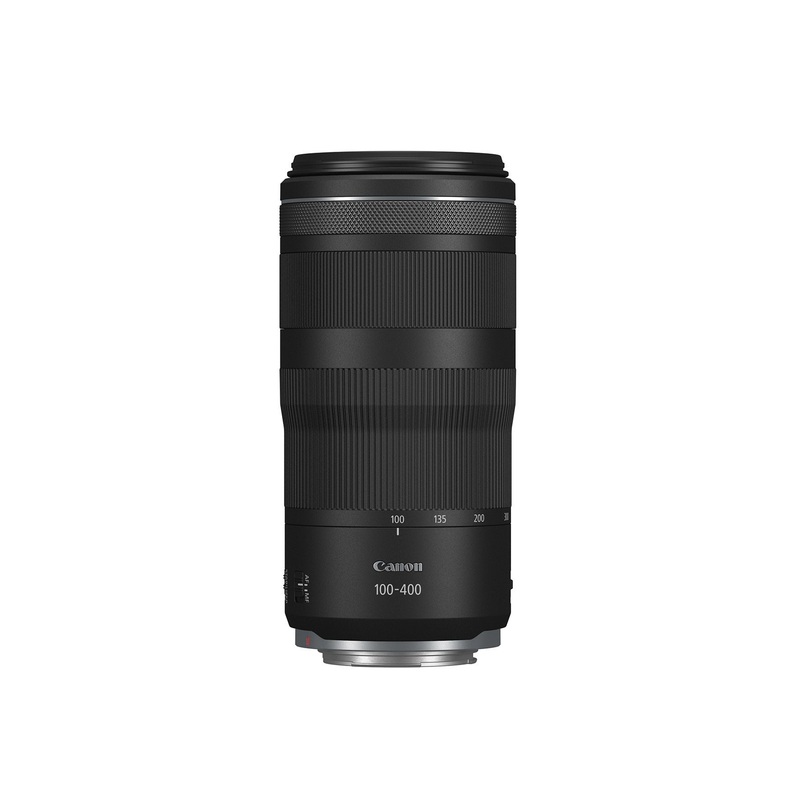

Canon RF 100-400mm f/5.6-8 IS USM
MFR SKU: 5050C002 | Helix SKU: CA5050C002
Overview
RF100-400mm F5.6-8 IS USM Lens
Perfect for wildlife, sports, travel and more, the RF100-400mm F5.6-8 IS USM is a compact, lightweight telephoto lens for EOS R Series cameras, offering a versatile zoom range that brings subjects closer with ease. The RF100-400mm F5.6-8 IS USM is similar in size to the EF 70-300mm F4.5-5.6 IS II USM lens, and not only reaches to 400mm, but also has fast Nano USM focusing and up to 6 stops of Coordinated IS when used in combination with an EOS R series camera featuring In-body Image Stabilization, like the EOS R5 and EOS R6, or 5.5 stops with an EOS R/RP camera. Using a single Ultra Low Dispersion lens element towards the front of the lens group corrects chromatic aberration throughout the entire zoom range, making your images look crisp and colorful with minimal color blur. The RF100-400mm F5.6-8 IS USM lens can also accept both the RF1.4x and RF2x tele extenders giving you the effective maximum focal length of 560mm and 800mm respectively. With a control ring that allows for quick setting changes, including shutter speed and aperture, the RF100-400mm F5.6-8 IS USM lens puts quality, convenience and control in your hands.
Features:
Compact, lightweight and high-image quality RF tele zoom lens, with a versatile zoom range of 100-400mm
The travel-friendly size and weight (similar in size to the EF 70-300mm F4.5-5.6 IS II USM lens but a bit lighter) of this lens makes it easier for it to be attached with a camera around your neck while walking around for an extended time and also allows room for more lenses in a camera backpack.
Optical Image Stabilizer with up to 5.5 Stops* of shake correctionBecause RF lenses are designed specifically for the RF Mount found on EOS R series cameras, the lens and camera combine to share Image Stabilization data, helping to dramatically reduce the effect of camera shake that can occur when working handheld. This applies when capturing both stills and video with up to 5.5 stops of stabilization* for accurate and clear content.
Up to 6 stops of shake correction** when paired with EOS R series cameras featuring In-Body Image Stabilizer (IBIS) This IS enabled lens can provide even more steadiness when shooting, up to 6 stops of coordinated IS, if paired with an EOS R Series camera featuring In-Body Image Stabilization, such as the EOS R5 and EOS R6, to further help you capture impressively clear results with slower shutter speeds.
Minimum focusing distance of 2.89 feet at 200mm and maximum magnification of 0.41x at 400mmWith a minimum focusing distance of 2.89 feet at 200mm, the RF100-400mm F5.6-8 IS USM lens is capable of capturing sharp and detailed images from various distances. Especially noteworthy is the lenss close-up capabilities at the 400mm zoom setting at its minimum focus distance, at 400mm, you can fill the frame with a subject about the size of a credit card providing outstanding versatility and strikingly sharp images.
High speed, smooth and quiet autofocus with Canons Nano USMWith any Canon EOS R-series camera, expect swift and positive autofocus. The Nano USM focus system is especially advantageous to video users, because of its combination of quiet operation and outstanding smoothness of focus changes during actual recording.
9-blade circular aperture for beautiful bokehGetting a smooth and natural looking out-of-focus background blur isnt a problem for this lens as it has a 9-blade circular aperture which separates your subject from the background, while also providing a beautiful backdrop that’s visually appealing in itself.
Control Ring for direct setting changesThe RF100-400mm F5.6-8 IS USM lens incorporates a Control Ring on the lens barrel that can directly adjust numerous settings including shutter speed, aperture, ISO, exposure compensation and more. Located towards the front of the lens it effectively adds a third dial to EOS R and RP cameras, and a fourth dial to cameras such as EOS R5 and R6 cameras. With a tactile, easily distinguished surface and a clicking mechanism that provides tangible feedback for confident use while looking through the viewfinder, the control ring adds outstanding connection to any shooting scenario. For photographers and movie makers who would prefer a silent control ring, the clicking mechanism can be removed at a Canon Factory Service Center location for a fee.
Compatible with optional Canon Extenders RF1.4x^ and RF2x^^To help get you even closer to the subject, attach the compatible optional Canon RF extenders to the RF100-400mm F5.6-8 IS USM and get the equivalent of 560mm focal length coverage with the Extender RF1.4x, or 800mm using the Extender RF2x. In fact, the RF100-400mm F5.6-8 IS USM is the first non-L-series Canon lens with tele extender compatibility, helping transform the lens into an incredibly powerful telephoto combination, with relatively modest additional size and weight. This added flexibility and versatility helps make the RF100-400mm F5.6-8 IS USM an amazing option for nature photography and more.
Specifications
Specifications
Lens
| Focal Length | 100-400mm |
| Maximum & Minimum Aperture | (Max.) f/5.6 f/8 (f/8 at 400mm position) (Min.) f/32 f/45 (f/45 at 400mm position) |
| Lens Mount Type | RF Mount; Metal Mount |
| Minimum Focusing Distance | 3.94 feet (1.2m) at 100mm 2.89 feet (0.88m) at 200mm 3.44 feet (1.05m) at 400mm |
| Maximum Magnification | 0.41x, at 400mm (0.09x at 100mm) |
| Field of View (At Minimum Focus Distance) | Approx. (100mm) – 10.2 x 15.2 in. (260 x 386mm) (400mm) – 2.2 x 3.3 in. (57 x 85mm) |
| Angle of View (Diagonal) | Approx. 24 610 |
Extender RF Compatibility
| Compatible with Canon Extender RF1.4x & RF2.0x | Yes |
| Equivalent Focal Length / Maximum Aperture | RF1.4x – 140mm560mm, f/811 RF2x – 200800mm, f/1116 |
| Maximum Close-Focusing Magnification | RF1.4x – 0.12x 0.58x RF2x – 0.18x 0.83x |
| Autofocus with EOS R Series Cameras (As of September 2021) | Possible with either extender, at all zoom settings |
| Image Stabilizer with EOS R Series Cameras (As of September 2021) | Possible with either extender, at all zoom settings |
Optical Design
| Lens Construction | 12 elements in 9 groups |
| Special Elements | (One) UD-glass element (One) Aspherical element |
| Lens Coating | Canon SSC (Super Spectra Coating) |
| Filter Size Diameter | 67mm |
| Aperture Blades | 9 Circular |
Focusing
| Focusing Drive System | Nano USM; rear focusing system |
| Full-Time Manual Focusing | Yes (Lens Electronic MF) |
| Dual Pixel CMOS AF Coverage (Horizontal x Vertical) | EOS R, EOS RP Approx. 88% x 100% With Extender RF1.4x – approx. 80% x 80% With Extender RF2x – approx. 40% x 60% EOS R5, EOS R6 |
Image Stabilization
| IS On-Off | Image Stabilizer switch, on lens barrel |
| Optical Image Stabilization | Provided 5.5 stops optical IS correction (at 400mm) Conforms to CIPA test standards, using EOS R |
| Coordinated IS (With EOS R Series Cameras having In-Body Image Stabilization) | Provided 6 stops Coordinated IS correction (at 400mm) Conforms to CIPA test standards, using EOS R-series cameras with In-Body Image Stabilization |
| IS Mode Selection | None (Automatic switching to panning correction IS, when panning is detected) |
| Panning Mode Support (SCN Mode) | Supported |
Exterior Design
| Control Ring | Provided (with click-stops) Programmable via Customize Dials in cameras Custom Functions menu 58 clicks per revolution Clicks can be removed by Canon service center, for a service fee |
| Manual Focus Ring | Electronic ring system Full-time Manual focus possible No physical limit to ring rotational angle |
| Distance Scale | None Distance scale available in EVF or Live View LCD screen of compatible EOS R cameras |
| Distance Limiter Switch | None |
| Dust / Weather Resistant Construction | None |
Dimensions & Weight
| Maximum Outer Diameter x Length | Approx. 6.48 in. x 3.13 in. (164.7 x 79.5mm) |
| Weight | Approx. 22.4 oz. / 1.4 lb. / 635g |
Accessories
| Lens Hood | Canon ET-74B Optional accessory, sold separately |
| Lens Cap | (Front) Canon E-67 II (center pinch-type) (Bundled) (Rear) Canon Dust Cap RF |
| Dust Cap | Canon Lens Dust Cap RF (Bundled) |
| Lens Case | Canon Lens Case LP-1224 Optional accessory, sold separately |
| Extension Tubes | None (No Canon RF mount extension tubes) |
| Close-Up Lenses 250D / 500D | None (no 67mm size available) |
DISCLAIMERS
* Based on CIPA (Camera & Imaging Products Associations) standards. Testing performed at focal length of 400mm, using the EOS R camera.
** Based on CIPA (Camera & Imaging Products Associations) standards. Testing performed at focal length of 400mm, using the EOS R5 camera.
^ A focal length range of 140mm (wide) through 560mm (tele) is possible to be achieved using the Extender RF1.4x.
^^ A focal length range of 200mm (wide) through 800mm (tele) is possible to be achieved using the Extender RF2x.
Item Includes
RF100-400mm F5.6-8 IS USM
- RF100-400mm F5.6-8 IS USM
- Lens Cap E-6711
- Lens Dust Cap RF
