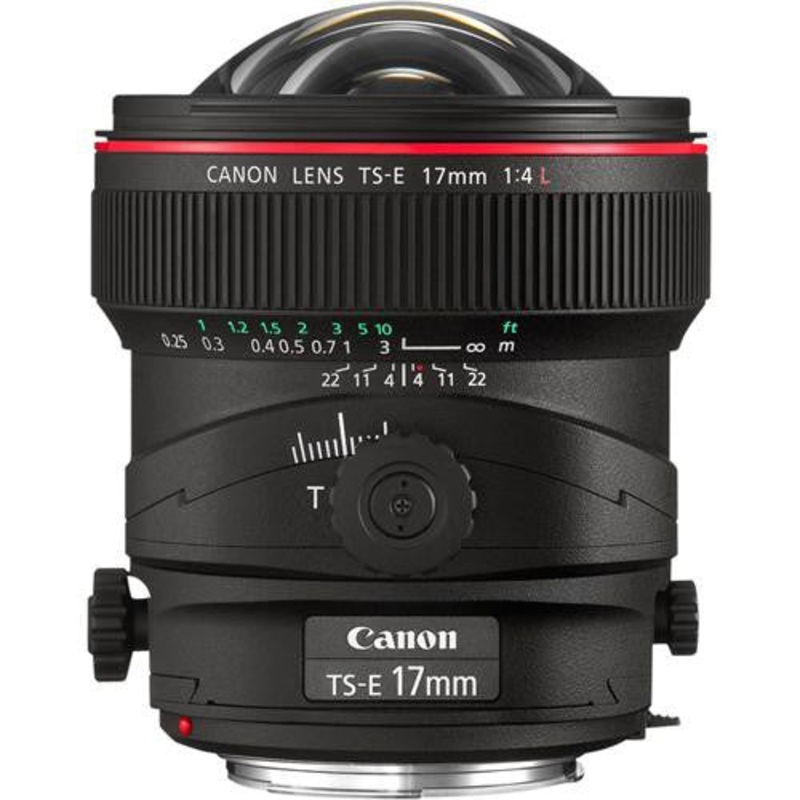

Canon TS-E 17mm f/4L Tilt-Shift

Canon TS-E 17mm f/4L Tilt-Shift

Canon SKU:3553B002 | Helix SKU:CA3553B002*Special Order ItemOverview

The widest tilt-shift lens in Canon’s lineup, the new TS-E 17mm f/4L lens expands shooting possibilities exponentially on EOS Digital cameras. Designed with UD glass to minimize and compensate for chromatic aberrations, with a specially coated aspherical element for the highest possible glare-free image quality, this tilt-shift lens offers a diagonal angle of view of 104 on a full-frame SLR camera.

New TS rotation lets users freely combine tilting and shifting within the range of +/- 90 in the direction of movement. The lens also has an improved tilt & shift knob with an enhanced range of movement of up to +/- 6.5 and 12mm respectively, with a revolving function for better operability. It uses a circular aperture for beautiful out-of-focus areas and has an SWC lens coating to control ghosting and flare to a far greater degree than with earlier coating technologies.

SPECIFICATIONS:

Focal Length & Maximum Aperture
17mm 1:4
MINIMUM APERTURE
f/22
LENS CONSTRUCTION
18 elements in 12 groups
DIAGONAL ANGLE OF VIEW
104 (without tilt or shift)
IMAGE CIRCLE DIAMETER
67.2mm
FOCUS ADJUSTMENT
Manual focus, rear focusing system with focusing cam (with floating system)
CLOSEST FOCUSING DISTANCE
0.82 ft./0.25m (maximum close-up magnification: 0.14x)
APERTURE CONTROL
EMD with 8 blade iris diaphragm, circular aperture
MAX. DIAMETER X LENGTH, WEIGHT
3.5 x 4.2 in./88.9 x 106.7mm (maximum lens length), 28.9 oz./820g
LENS CAP, LENS HOOD AND POUCH
Lens cap and pouch provided. (No lens hood available.)

Prices and specifications subject to change without notice.
