TheCD4053 is a CMOS logic-based triple 2-channel analog multiplexer/demultiplexer IC. It consists of three independent single-pole, double-throw (SPDT) analog switches. Each switch has a digital control input and two input/output terminals. The IC allows analog or digital signals to pass through and is commonly used for signal routing, audio switching, and multiplexing applications.
Packaged in a DIP-16 through-hole format, the CD4053 is ideal for prototyping and integration into a variety of electronic circuits where multi-channel switching is required.
Features of CD4053 Multiplexer/Demultiplexer IC:
- Three independent SPDT analog switches
- Supports both analog and digital signal switching
- Low ON resistance and high OFF resistance
- High speed and low power consumption
- TTL and CMOS compatible control inputs
- Wide voltage operation and low crosstalk
Specifications of CD4053 IC:
- Model: CD4053
- Function: Triple 2-channel multiplexer/demultiplexer
- Operating Voltage: 3V to 15V
- Signal Type: Analog/Digital
- ON Resistance: ~125 ohms at 10V VDD
- Switching Time: ~100ns (typical)
- Control Input Logic: TTL/CMOS Compatible
- Package: DIP-16 Through-Hole
- Operating Temperature: -55C to +125C
Package Includes:

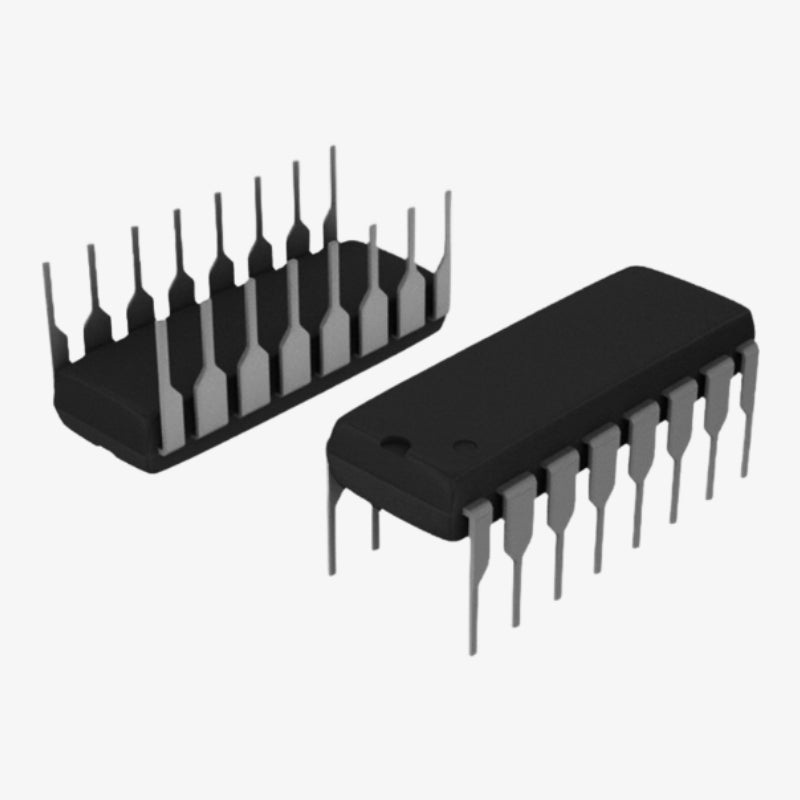

1 CD4053 Triple 2-Channel Multiplexer/Demultiplexer IC DIP-16 Package
