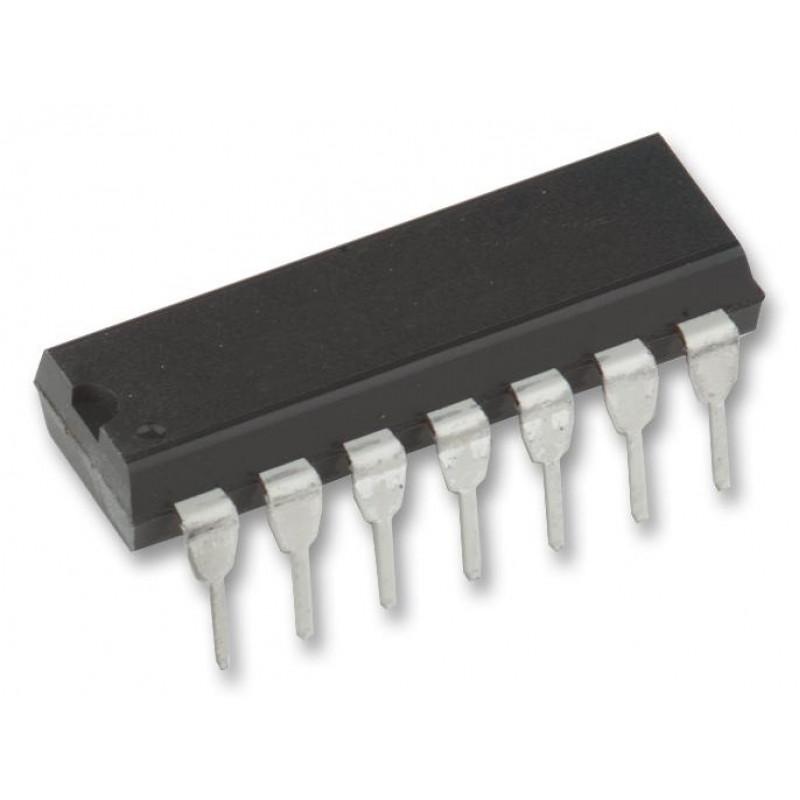

CD4081 – Quad 2 Input AND Gate IC

CD4081 – Quad 2 Input AND Gate IC

CD4081 Quad 2 Input AND gates IC provides the system designer with direct implementation of the AND function and supplements the existing family of CMOS gates.

The CD4081 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).

check out :CD4532 – 8 Bit Priority Encoder IC (Original)

Pinout:

Pinout OfCD4081 IC
