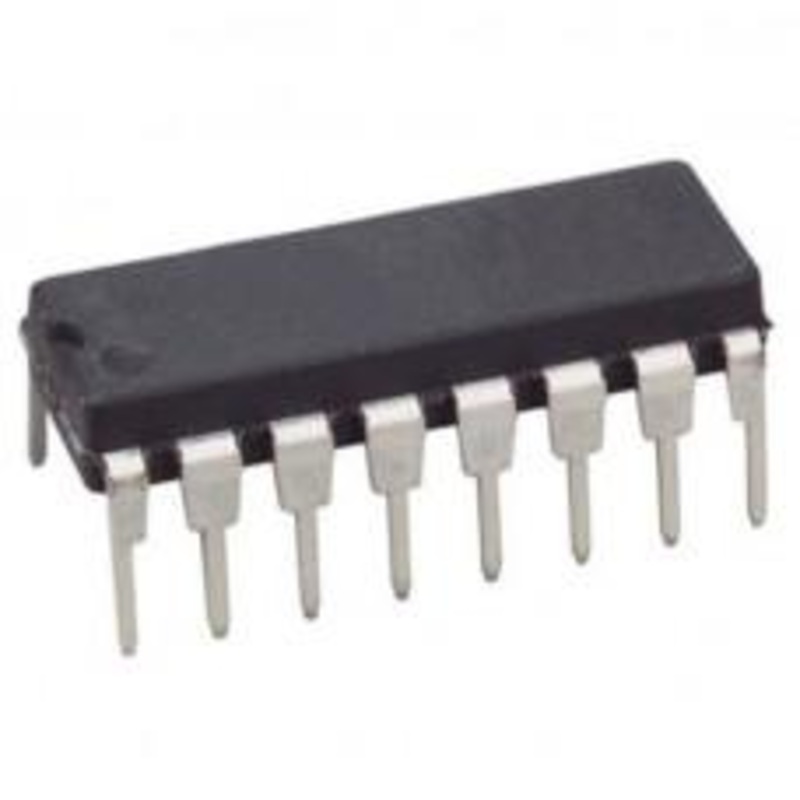

CD4519 – Quad AND/OR Select Gate IC (Original)

CD4519 – Quad AND/OR Select Gate IC

The CD4x Series CD4519 CMOS IC can be configured as 4-bit AND/OR selectors, as quad 2-channel data selectors, or as quad exclusive-NOR gates. This is achieved by setting the control inputs to produce the particular function desired. Thesingle supply voltage of the CD4519 quad IC is3V to 18V.

Pinout:

Pinout ofCD4519 IC
