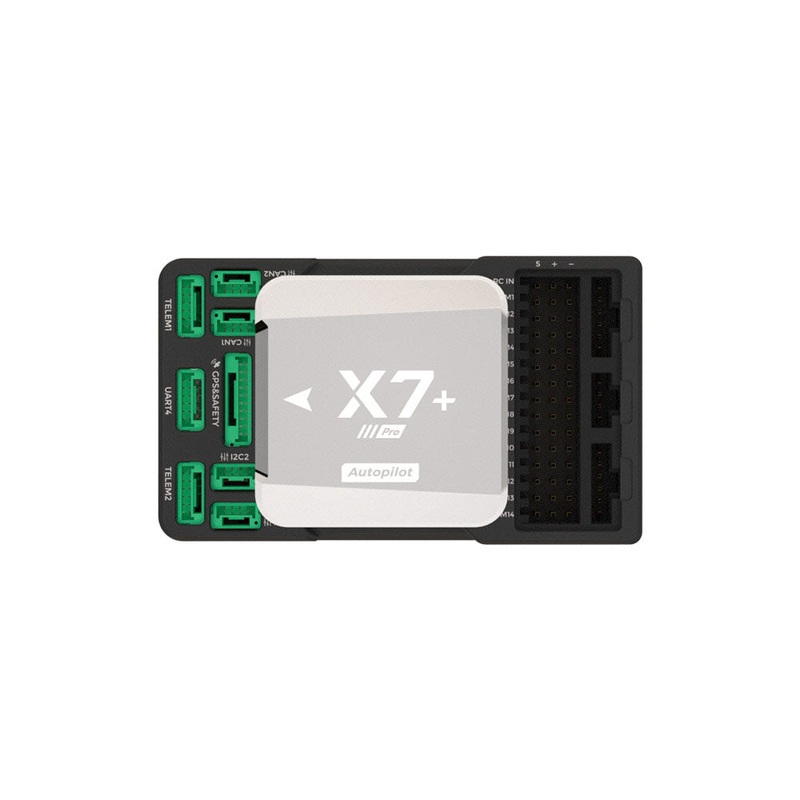

CUAV NEW X7+ PRO Flight ControllerSPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Flight controller

Tool Supplies: Assembly Category

Technical parameters: KV1100

Size: 77*45.5*39mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Speed Controllers

Quantity: 1 pcs

Origin: Mainland China

Model Number: X7+ PRO

Material: Metal

Four-wheel Drive Attributes: Shell/Chassis/Wing/Head

For Vehicle Type: Airplanes

Color: Gray

Certification: CE.FCC

Brand Name: CUAV

CUAV X7+ Pro Autopilot

CUAV NEW X7+ pro Pixhawk Open Source Flight Controller for PX4 ArduPilot FPV RC Drone Quadcopter

X7+ Pro Introduction

X7+ Pro flight controllers are for professional-grade users. The X7+ series features high-end processors. sensors. and industrial-grade compasses. built-in CAV’s patented shock absorption design and temperature compensation system. with processing speeds up to 480MHz. 1M memory. and 2M flash memory. X7+ Pro uses a vehicle-grade ADIS16470 sensor to further improve stability

X7+ Pro Features

1 –Aero-Grade ADIS16470 Sensor
2 –Built-in shock absorption
3 –3 sets of Imus support intelligent failover
4 –Support temperature compensation
5 –Support CAN ammeter
6 –Modular design. support custom baseboard

The CUAV NEW X7+ Pro flight controller features an aerospace-grade ADI16470 accelerometer and gyroscope. as well as a RM3100 industrial-grade compass. making it suitable for autopilot applications.

The CUAV NEW X7+ Pro flight controller utilizes an STM32H743 series processor with a Cortex-M7 core. allowing for increased operating frequency up to 48MHz. This provides sufficient computing power to meet the higher demands of modern flight controllers.

The ICM-42688-P IC features a significantly reduced noise figure. with a 40% improvement. Additionally. its temperature stability has been enhanced two-fold.

The CUAV NEW X7+ Pro flight controller features a built-in high-precision sensor temperature compensation system. ensuring that the sensor operates at a consistent temperature. This allows the sensor to maintain stable performance with high precision and sensitivity across a wide range of temperatures.

The CUAV NEW X7+ Pro flight controller continuously monitors data from multiple sensors in real-time. In the event of sensor failure. it immediately switches to redundant systems. enhancing overall flight safety and reliability.

The CUAV NEW X7+ Pro flight controller features a modular design. integrating the main MCU and IMU into the CORE module. which can be sold as a standalone unit. This allows users to customize their baseboard according to their individual needs and preferences.

The CUAV NEW X7+ Pro flight controller utilizes an aerospace-grade ADIS16470 sensor. which features the high-end ADI16470 chip for exceptional performance. This results in outstanding gyroscopic and acceleration drift characteristics.

The CUAV NEW X7+ Pro flight controller features a patented Better Shock Absorption System. which has undergone rigorous testing and verification. This system was developed through hundreds of material tests. dozens of iterations. and a thorough analysis using computer models. as well as thousands of flight tests to ensure optimal performance.

The standard pack for the CUAV NEW X7+ Pro flight controller includes a Digital Power Module. which features the UAVCAN protocol for digital power detection. This module utilizes CUAV’s independent R&D ITT algorithm to provide accurate real-time measurement of voltage and current. enabling precise monitoring and control of your drone’s power usage.

The specifications for the CUAV NEW X7+ Pro flight controller are as follows: Processor – STM32H743. Frequency – 48MHz. Flash Memory – 2MB. RAM – 1MB. The unit features an accelerometer and gyroscope combination using the ADIS16470 chip. along with the ICM-42688-P and ICM-20689 components. Additionally. it includes a compass module based on the RM3100 sensor and a barometer module utilizing the MS5611 chip. The controller also provides multiple interfaces. including 2 UARTs. 1 CAN bus. 6 analog-to-digital converter (ADC) inputs that support both 6.6V and 3.3V. as well as SPI and PWM output capabilities through 14 available channels.

The CUAV NEW X7+ Pro flight controller supports a wide range of firmware and model types. including PX4 ArduPilot for copter. plane. and helicotper models. as well as non-ArduPilot platforms such as manned vehicles and rovers. Additionally. it can accommodate all other copter models with adaptability.

The CUAV NEW X7+ Pro flight controller packing list includes:* X7# main board* CAN PMU Lite Power Module* Dupont cable for connecting accessories* CAN extension board* Pw-Link module for power and data transmission* USB-Type-C cable for connectivity* SanDisk 16GB microSD card ( Ultra Class)* MGR @A1 FAA manual
