CUAV Pixhawk V6X AutopilotSPECIFICATIONS

Brand Name: CUAV

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Speed Controllers

Size: 45*90*29.2mm

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Certification: CE

Certification: FCC

Upgrade Parts/Accessories: Flight controller

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Assembly Category

Quantity: 1 pcs

Technical parameters: Value 2

Model Number: V6X

Four-wheel Drive Attributes: Shell/Chassis/Wing/Head

Wheelbase: Bottom Plate

Color: Gray

Processor: STM32H753IIK6

Compass: RM3100

Barometer: 2xICP-20100

PMW I/O: 16

CAN interference: 2

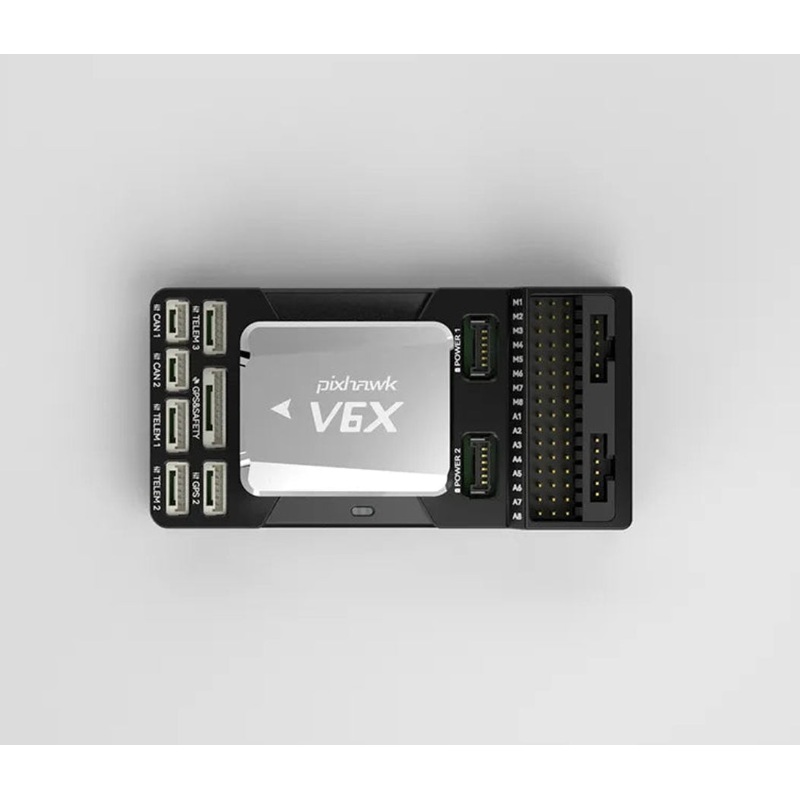

Pixhawk V6X Flight Controller

CUAV NEW Pixhawk FMU V6X Customize Carrier Board and Core VT240 pro VTOL flight controller

V6X Introduction

Pixhawk V6X is a new generation of Pixhawk built by CUAV&PX4, based on the modular design of Pixhawk FMU V6X standard, the pursuit of the ultimate safety and stability, users can also customize the carrier board according to their needs.Using H7 double-precision floating-point arithmetic unit and Cortex-M3 coprocessor, three redundant IMUs with independent bus and power supply, IMU temperature factory pre-calibration technology, double redundant barometer design, and new generation of patented shock absorption design to ensure the flight safety and rich expansion capabilities of the UAV in an all-round way; The integrated 100M Ethernet interface can communicate with industrial UAV mounting
equipment such as task computers, optical fiber inertial navigation, and mapping cameras, which meets the needs of highend UAVs

V6X Features:

1 –H7 Double-precision floating-point processor
2 –High-performance ARM M3 coprocessor
3 –Low noise Car-grade IMUs.
4 –Triple redundant IMUs and dual redundant
barometer designs.
5 –Car-grade RM3100 magnetic compass
6 –New built-in shock absorption design

The Raefly VT240 Pro is a lightweight electric vertical takeoff and landing (eVTOL) unmanned aerial vehicle (UAV). Its fuselage is constructed from carbon fiber and Kevlar composite materials, offering up to 4 hours of battery life and a cruising range of approximately 310 kilometers.

The CUAV Pixhawk V6X Autopilot features a processor based on STM32H75311K6, accompanied by an accelerometer (ICM42688-P), gyroscope (ICM-20649), and BMI088 compass. Additionally, it includes a RM3100 barometer, 2x ICP-20100 PWM I/O, and supports up to 16 power channels. It also provides two UAVCAN ports and two SMBUS (I2C) interfaces.

The CUAV Pixhawk V6X Autopilot features a standard connector and bus, specifically designed for autopilot systems. The ‘Pixhawk V6x: Autopilot -009’ designation indicates compatibility with the Pixhawk V6x system.

Firmware and model support includes PX4, ArduPilot, and DUtOPILOt, with compatibility for all models, including copter, plane, helicopter, and VTOL (vertical takeoff and landing) configurations.

The CUAV Pixhawk V6X Autopilot flight controller includes a range of connectivity options, including: * CAN module with PMU Lite board * SamDisk WiT TF memory card (16GB) * Type-C cable (100cm) * RSSI cable (30cm) * DSM RC cable (30cm) * PPM RCISBUS OUT cable (30cm) * Ethernet cable (40cm)
