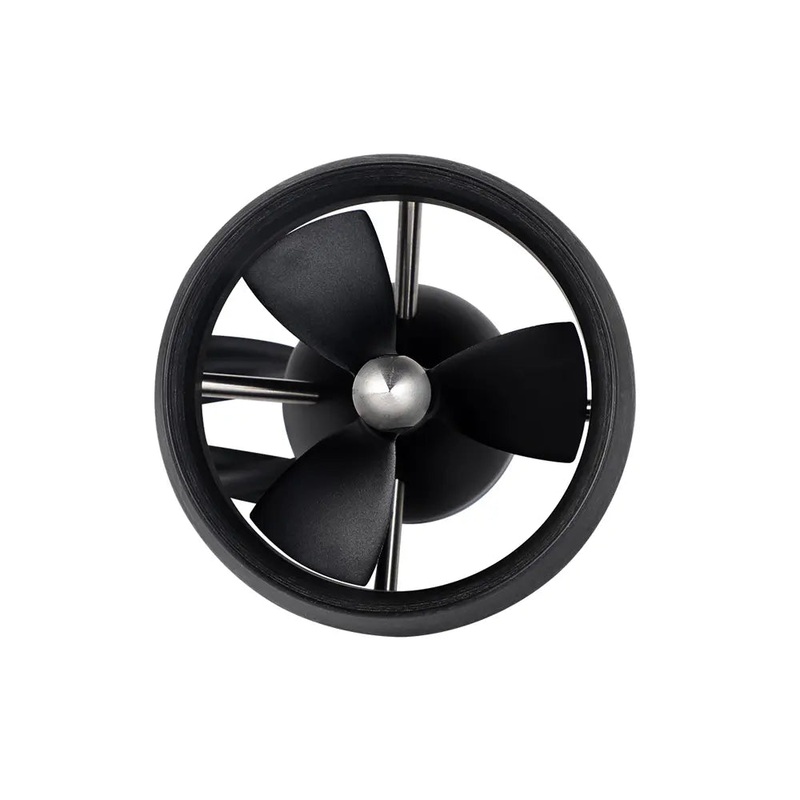

CubeMars DW15 48V 750W Underwater Thruster, 15kgf Thrust, 350M Depth, Aluminum Alloy for ROVs & USVs

Overview

The CubeMars DW15 Underwater Thruster delivers reliable, efficient propulsion for unmanned surface vehicles (USVs), remotely operated vehicles (ROVs), and electric surfboards. Engineered with 48V rated voltage, 750W power output, and a maximum mooring thrust of 15 kgf, it operates at depths up to 350 meters. The aluminum alloy precision-cast shell and propeller ensure high strength, corrosion resistance, and long service life, while the low-resistance dynamic seal and two-stage sealing chamber provide superior water ingress protection. Its POM nozzle, 28-pole motor rotor, and 106 mm propeller enhance propulsion efficiency, and the integrated thermal conductive filling supports effective water-cooled heat dissipation.

Key Features

• High Performance 48V, 750W, 15 kgf maximum mooring thrust.

• Deep-Water Capability Operates reliably at 0350 m depth.

• Durable Construction Aluminum alloy shell & propeller with POM nozzle for strength and corrosion resistance.

• Advanced Sealing Low-resistance dynamic shaft seal and two-stage sealing chamber.

• Optimized Heat Dissipation Thermal conductive filling enables water-immersed cooling.

• Precise Engineering 28-pole rotor, 106 mm propeller for balanced forward/reverse thrust performance.

• Lightweight Design 1300 g in air, 735 g in water.

• Easy Maintenance Rinse with clean water after use.

Specifications

Parameter	Value
Rated Power	750 W
Rated Voltage	48 V
Maximum Mooring Thrust	15 kgf
Applicable Water Depth	0350 m
Nozzle Material	POM
Propeller Material	Aluminum alloy
Shell Material	Aluminum alloy
Propeller Diameter	106 mm
Motor Rotor Pole Number	28P
Main Shaft Seal	Low-resistance dynamic seal
Body Structure	Two-stage sealing chamber
Cable Specs	TPU (Glossy) 8 mm 316 AWG 1.5 m
Driver	External
Applications	USV, ROV, electric surfboard
Weight	1300 g (air), 735 g (water)
Environmental Conditions	Storage: 050 C; Operation: 040 C
Recommended ESC	TW-40A-12S
Usage Tip	Rinse with clean water after use

Performance Analysis

• Speed vs Power Forward thrust reaches peak power at ~3250 RPM, with slightly lower reverse thrust efficiency.

• Power vs Thrust Forward thrust exceeds 15 kgf at full rated power, reverse thrust slightly lower.

• Speed vs Thrust Linear increase with RPM, optimal performance between 25003250 RPM.

Applications

• ROVs (Remotely Operated Vehicles) For underwater exploration, inspection, and maintenance.

• USVs (Unmanned Surface Vehicles) For autonomous navigation and marine data collection.

• Electric Surfboards & Watercraft Provides high torque for water propulsion.

Manual Downloads

DW15-2D.pdf

DW15-3D.zip

Details

CubeMars DW15 Underwater Thruster dimensions: 130.6 x 111.5 mm, fan diameter 106 mm, mounting height 88 mm.

CubeMars DW15 Underwater Thruster: 750W power, 48V voltage, 15kgf thrust, 0-350M depth. Aluminum alloy propeller/shell, POM nozzle. For USVs, electric surfboards, ROVs. Weighs 1300g (air), 735g (water).

CubeMars DW15 Underwater Thruster analysis: Speed vs Power, Power vs Thrust, and Speed vs Thrust graphs illustrate performance metrics for forward and reverse thrust operations. Data highlights efficiency across RPM and power ranges.

CubeMars DW15: 48V, 750W, 15KGF thrust, 0-350m depth, 1260g weight, 130.6*174.5mm size. High-performance underwater thruster for various aquatic applications.

Compact, powerful underwater thruster with 15kgf thrust for easy navigation.

Alloy precision casting ensures corrosion resistance, durability, lightweight, high-strength aluminum alloy.

Innovative design, cutting-edge engineering. Advanced sealed casing for superior performance.

Designed for depth, multiple specification options. Navigates from 0 to 350 meters, engineered for ROVs. DW10 (10kgf), DW15 (15kgf), DW20 (20kgf), DW25 (25kgf).

CubeMars DW15 Underwater Thruster uses sealing tech, shaft system, and streamlined nozzle for efficiency.
