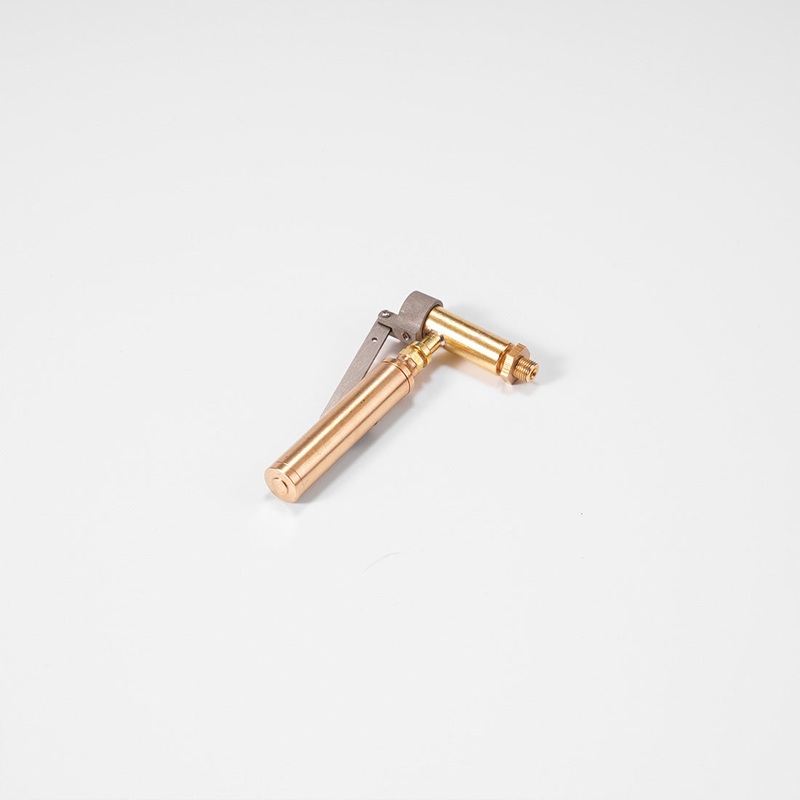

Custom Steam Whistle Upgrade Component with Push / Pull Control for RW Series Steam Engine Boiler Models

Custom Steam Whistle Upgrade Component with Push / Pull Control for RW Series Steam Engine Boiler Models

Features:

.Model-Specific Structural Matching: Engineered for RW series steam boiler models, the whistle aligns accurately with existing interfaces and operating conditions, allowing direct installation without additional adjustment.
.Controlled Steam Sound Output: Operates within a pressure range of 1.54 kg/cm, producing a clear 8595 dB steam whistle sound. At higher pressure levels, sound output can reach approximately 100 dB, requiring appropriate distance during operation.
.Defined Safety Operating Guidance: Steam is released laterally during use and may be hot. The control rod requires decisive actuation rather than slow movement to maintain sound quality and component condition.
.Flexible Control Configuration: Features a rotatable control bracket that allows switching between push-rod and pull-cord operation. Rope attachment enables remote activation, expanding control flexibility during model operation.
.Functional Mechanical Sound Upgrade: Delivered ready for installation, this steam whistle adds mechanical sound feedback to RW steam boiler models, enhancing operational realism through purely mechanical interaction.

Specifications:

.Product Name: Steam Whistle
.Thread Interface: M5x0.5
.Working Pressure: 1.5-4 kg/cm
.Volume: 85-95 dB
.Operation Method: Push rod or pull rod
.Product Weight: 28g
.Package Weight: 50g
.Product Dimensions: 1.5 x 1.5 x 6.5cm
.Package Dimensions: 10 x 5 x 5cm
.Packing: Bag
.Age: 16+

Packing List:

.Steam Whistle *1set
.Instruction Manual *1
