Please be aware these have been cycled 2-3 times for testing.
Compared with traditional battery, Diamond solid-state lipo batteryachieves both safety and performance improvement, whichfeatureshigh energy density, high discharge rate and high safety performance, small size andlight weight.
This12S 22,000mAh solid-statelipo batteryis only4050g,with 251.7Wh/kgenergy density, the continuous discharge rate is 5C,Max. discharge rate is 10C. It also has along cycle life, over 600 times.
Compared with Li-ion battery, the Diamond Solid-state Lipo battery has higher discharge current. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate isabout 5 times higherthan that of Li-ion battery.
Compared with traditional lipo battery, the Diamond Solid-state Li-ion batteryhas light weight and higherenergy density. Its energy density increased by 30%-35%, even 20% higher than that of high-voltage version lipo battery. So the drone endurance time will be increased by 20%-35% by using the Diamond Solid-state Li-ion battery.
Diamond Solid-state Lipo batterysupports Max.10C discharge and Max. 2C charge, there is no obvious heating during 7C discharge. The recommendeddischarge rateis1C-5Cto achieve the maximum discharge capacity, chargingwith 1C current to improve battery life.
Specification:
Voltage: 44.4V
Capacity: 22,000mAh
Continuous Discharge: 5C
Max.Discharge: 10C
Charge: 1C
Energy: 976Wh
Energy density: 251.7Wh/kg
Size: 19.5 x 13cm x 7.7cm
Weight: 4050g
Plug: XT90
Working Condition Temperature:
Charge: 045
Discharge: -1055
Your Purchase Includes

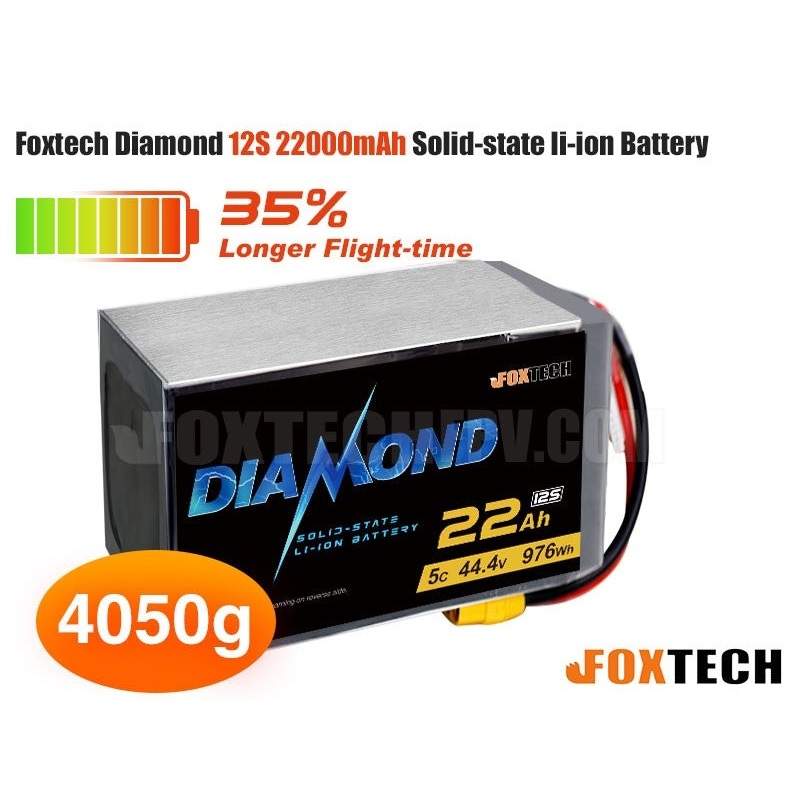

1x Foxtech Diamond 12S 22,000mAh Solid-state Lipo Battery
