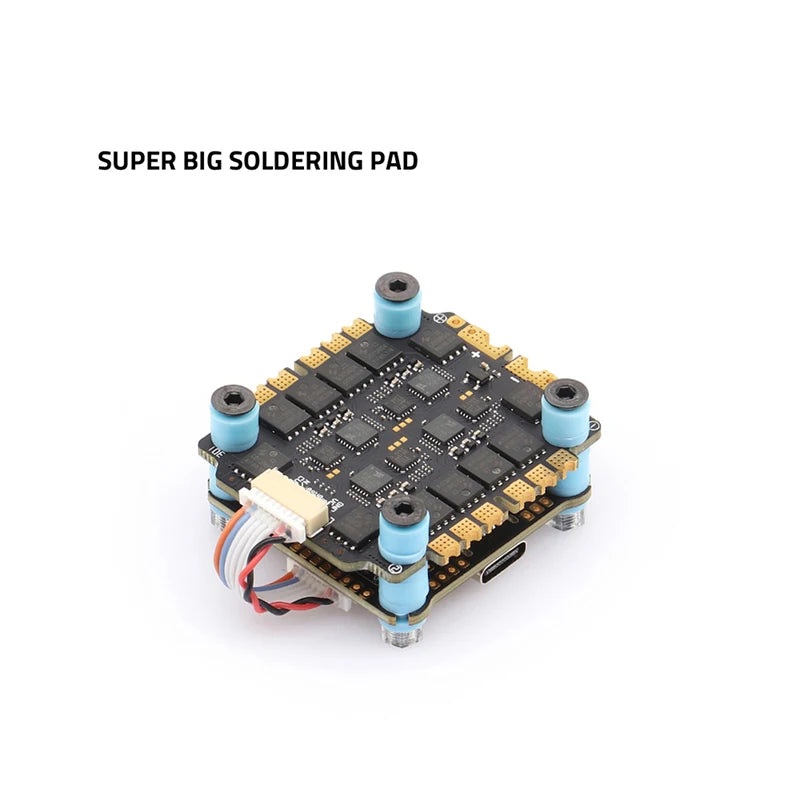

DIATONE F405 MK2 V2 FC&ESC Stack F405MK2 Flight Controller F55 BLS ESC 3-6S DSHOT300/600 For FPV Drone Quadcopter

Descriptions:
Product Parameters

Firmware: FURYF4OSD

Main Controller: 168MHz STM32F405

Gyroscope: ICM – 42688 – P

OSD (On – Screen Display): Supported

Black Box (Data Logging): 16M Flash Memory

Barometer: None

Serial Ports: 3 Sets

I2C Signal: Supported

F.Port Signal: None

RSSI Signal (Received Signal Strength Indicator): Supported

Buzzer: Supported

ESC (Electronic Speed Controller) Output: 6 Sets

ESC Protocol: Dshot300/600

ESC Telemetry: Supported

Status Indicator Light: Available

LED Output: With BF LED

VTX (Video Transmitter) Interface: Supported

WIFI Tuning: None

VTX Power Control: None

BEC (Battery Eliminator Circuit) Protection: Yes

Receiver Protection: Yes

TVS (Transient Voltage Suppressor) Power Protection: Yes

BEC Output: 3.3V 0.5A, 5V 2A, 9V 2A

Operating Voltage: 3 – 6S Lipo (12.6 – 25.2V)

Mounting Size: 30.5mm/M3

For MAMBAF55 BLS ESC

Input Voltage: 4 – 6S Lipo (12.6 – 25.2V)

Rated Current: 55A4

Peak Current: 60A (10S)

BEC: None

Program: Dshot300/600

Firmware: BLHeli_S C4H0

TVS Power Protection: Yes

Mounting Hole Pattern: 30.5mm/M3

Dimensions: 44.5406.8mm

Shipping Include

High – Frequency Capacitor 470F/35V1

8pin sh1.02

12AWG 100mm2

AMASS Original XT601
