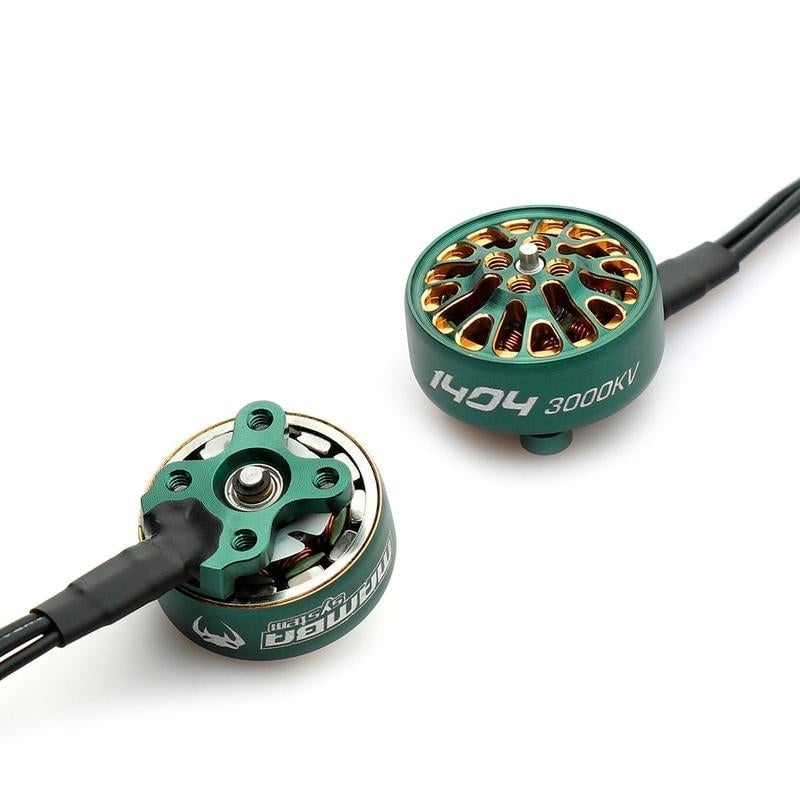

Diatone Mamba Toka 1404 Motor (3000kV / 4000kV)

TOKA 1404 3000KV Specifications

• Overall Dimension:20.515mm
• prop mounting shaft diameter:1.5mm
• Installation hole position:1212mmM2
• Prop: 2.5inch~4inch(Toothpick)
• Bearing 5*2*2.5
• Shaft Diameter:2mm
• Lead Wire Size24AWG150mm
• slots/poles:9N12P
• Magnet Wire: 240 Enameled Wire
• Stator Diamter14mm
• Stator Height:4mm
• Rated Voltage:3S~6S (12.6V~25.2V)
• Peak Current: 11.95A
• ldle Current10V/0.3~1.0A
• Maximum Power: 286.8W
• Internal Resistance310
• Weight: 10.5g

TOKA 1404 4000KV Specifications

• Overall Dimension:20.515mm
• prop mounting shaft diameter:1.5mm
• Installation hole position:1212mmM2
• Prop: 2.5inch~4inch(Toothpick)
• Bearing 5*2*2.5
• Shaft Diameter:2mm
• Lead Wire Size24AWG150mm
• slots/poles:9N12P
• Magnet Wire: 240 Enameled Wire
• Stator Diamter14mm
• Stator Height:4mm
• Rated Voltage:3S~4S (12.6V~16.8V)
• Peak Current: 13.48A
• ldle Current10V/0.5~1.2A
• Maximum Power: 215.6W
• Internal Resistance175
• Weight: 10.5g
