Features audible continuity tester and a detachable rubber case & stand.
DC voltage test, DC current test, AC voltage test, Uses standard PP3 battery (supplied), Resistance test
Diode test, Large LCD display, Low battery indicator, Overload protection, Low battery indicator

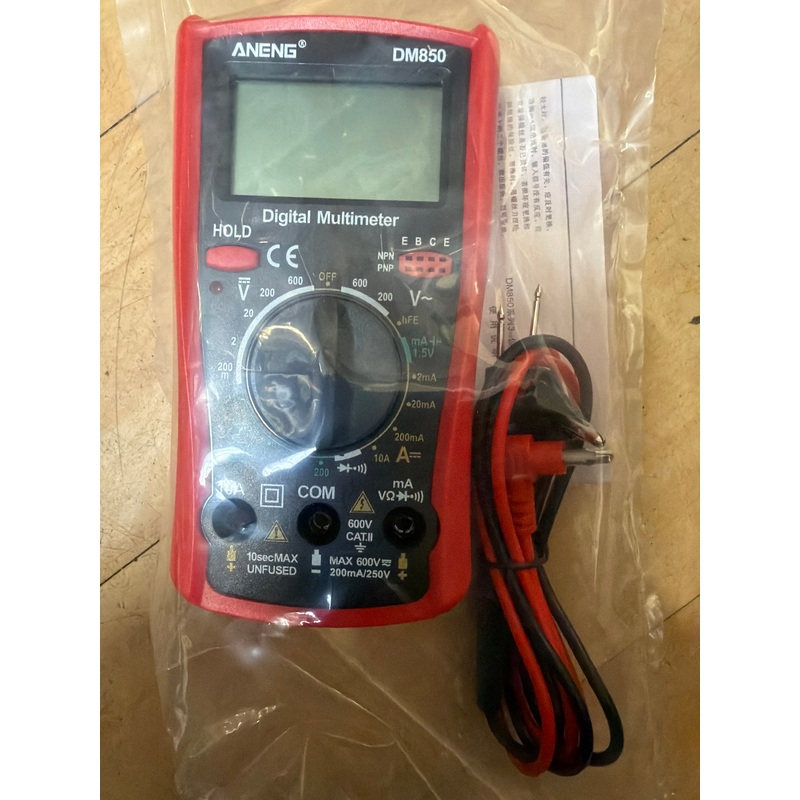

This instrument is a compact pocket-sized digital multimeter for measuring AC&DC voltage,DC Current,Resistance and Diode.Also provide Temperature,audible continuity test function or can be used as single generator.Full range overload protection and low battery indication are provided.They are the ideal instrument for use in fields,such as laboratory,workshop,DIYers,and the home applications.
Specification:
|
Function |
Range |
Accuracy |
|
DC Voltage |
200mV |
+-(2% of rdg+3D) |
|
2000mV/20V/200V |
+-(2% of rdg+5D) |
|
|
600V |
+-(2.5% of rdg+5D) |
|
|
AC Voltage |
200V/600V |
+-(2% of rdg+10D) |
|
Frequency Range |
45Hz~450Hz |
|
|
Audible Continuity Test |
Yes |
|
|
DC Current |
200uA/2000uA/20mA |
+-(2% of rdg+2D) |
|
200mA |
+-(2.5% of rdg+2D) |
|
|
10A |
+-(2.5% of rdg+10D) |
|
|
Resistance |
200 |
+-(2.5% of rdg+10D) |
|
2000/20k/200k/2000k |
+-(2.5% of rdg+4D) |
|
|
Overload Protection |
15 second |
Package:
1*Multimeter
1*test leads
1*manual
