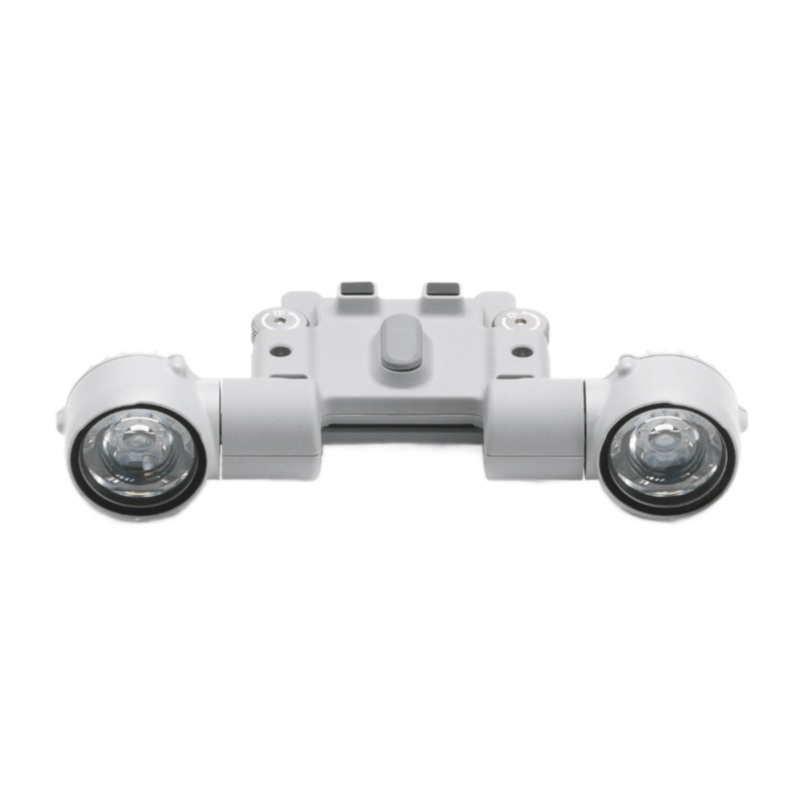

DJI Matrice 4 Series AL1 Spotlight

DJI Matrice 4 Series AL1 Spotlight | Enhanced Wide-Angle Coverage

Designed to bring unmatched clarity and precision, theDJI Matrice 4 Series AL1 Spotlight supports two modes: always-on and strobe. With a range of up to 100 meters it can clearly illuminate subjects while intelligently linking with the gimbal to follow the camera’s movements, ensuring the illuminated area matches the camera’s view. The AL1 offers a wide FOV lighting mode to light up expansive areas for superior situational awareness.

Lightweight, durable, and versatile the AL1 Spotlight an be used independently or in combination with the DJI Matrice 4 Series AS1 Speaker, adapting seamlessly to diverse operational scenarios.

Compatibility

DJI Matrice 4 Series

Applications

• Public Safety & Search and Rescue
• Inspection and Maintenance
• Surveillance and Security
• Agriculture and Wildlife Monitoring

In the Box

1 – DJI Matrice 4 Series AL1 Spotlight

2 – Spare Screws

1 – Hex Key

Tips

• Tighten the screws to ensure secure installation. When installing on the aircraft for long-term use, use the included hex key to tighten the screws again after installation.
• Activate the spotlight following the app prompts after installation. If a firmware update is available, please upgrade to the latest version promptly.
• The performance of the Matrice 4 Series aircraft’s propulsion and vision system will be affected after the spotlight is mounted. Fly with caution.
• DO NOT point the spotlight directly at peoples eyes.
• The spotlight may become hot after prolonged operation. Please be careful to avoid burns.

Specifications

Weight:

• 99 g (including bracket
• Approx. 91 g (excluding bracket)

LWH, including bracket: 9516430 mm

LWH, without bracket: 7916428 mm

Max Power: 32 W

Illuminance: 4.30.2 lux @ 100 meters, 170.2 lux @ 50 meters

Effective Illumination Angle: 23(10% relative illuminance)

Effective Illumination Area:

• 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode)
• 2,200 square meters @ 100 meters (10% relative illuminance, Wide FOV Mode)

Modes: Always-on and strobe

Gimbal Mechanical Range (Tilt): -135 to 45

Gimbal Controllable Range (Tilt): -90 to 35

Max Control Speed (tilt): 120/s

Gimbal Alignment Accuracy: 0.1

Operating Temperature: -4 to 122 F (-20 to 50 C)

Mounting Method: Quick-release hand-tightened screws
