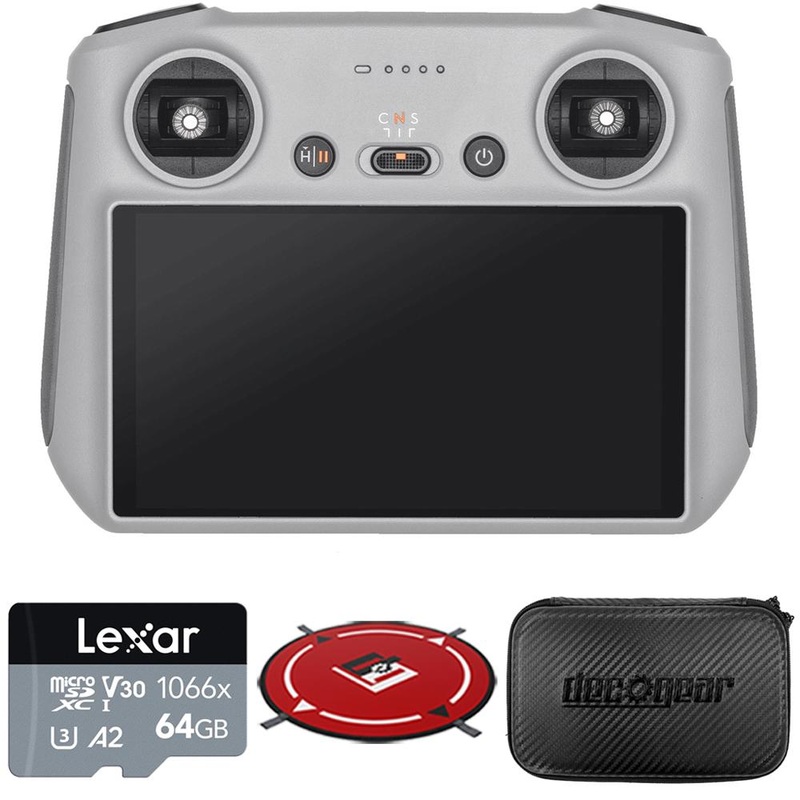

DJI RC

DJI RC is a remote controller that delivers an exceptional operating experience for DJI drones. With a lightweight body, FHD display, and ultra-long battery life, it also features new dual-spring control sticks for more comfortable flying and supports the advanced DJI O3+ video transmission technology. With its powerful functionality, aerial creation is more convenient than ever.

Product Highlights:

– 15km O3+ Video Transmission

– 390g Lightweight Body

– 5.5-inch FHD Display

– 4-hour Ultra-Long Operating Time

– Dual-Spring Control Sticks

– Common Ports Built-in

– Compatibility: DJI Mavic 3 Classic, DJI Mavic 3, DJI Mavic 3 Cine, DJI Mini 3 Pro, DJI Air 2S

Product Features:

Video Transmission Technology

When used with drones that support O3+ transmission, like DJI Mavic 3, DJI RC can provide low-latency HD 1080p/60fps live feeds with a max transmission range of 15 km for smoother control and safer flight.

Light, Compact, Powerful

Thanks to its innovative design, the antennas of DJI RC pack excellent performance in a smaller body that is built into the RC itself. The new hardware design further reduces the size of DJI RC, resulting in a weight of just 390 grams.

4-Hour Ultra-Long Runtime

DJI RCs new design enables use for up to four hours on a full charge.

Highlights in Detail

DJI RC is equipped with dual-spring control sticks for a smoother and more precise control experience.

Get Started Fast to Seize Any Moment

With a built-in screen, DJI RC can directly link with your drone after powering on

Crystal-Clear FHD Display

The built-in 5.5-inch FHD screen supports long-lasting typical brightness of 700 nits, convenient for checking the camera view and playback.

Stunningly Smooth Control

DJI RC is equipped with dual-spring control sticks for a smoother and more precise control experience.

Product Specifications:

Video Transmission System	DJI RC adopts OcuSync HD video transmission technology. When connected to other compatible drone models, DJI RC will switch to the corresponding video transmission technology. With different aircraft hardware, the corresponding video transmission specifications are as follows: DJI Mini 3 Pro: O3 | DJI Mavic 3 Classic: O3+ | DJI Mavic 3: O3+ | DJI Mavic 3 Cine: O3+ | DJI Air 2S: O3
Max. Transmission Distance (unobstructed, free of interference)	DJI Mini 3 Pro: 12 km (FCC); 8 km (CE/SRRC/MIC) | DJI Mavic 3 Classic: 15 km (FCC); 8 km (CE/SRRC/MIC) | DJI Mavic 3: 15 km (FCC); 8 km (CE/SRRC/MIC) | DJI Mavic 3 Cine: 15 km (FCC); 8 km (CE/SRRC/MIC) | DJI Air 2S: 12 km (FCC); 8 km (CE/SRRC/MIC)
Operating Frequency	2.400-2.4835 GHz; 5.725-5.850 GHz
Antennas	2 antennas, 1T2R
Transmitter Power (EIRP)	2.400-2.4835 GHz: less than 26 dBm (FCC), less than 20 dBm (CE/SRRC/MIC) | 5.725-5.850 GHz: less than 26 dBm (FCC), less than 23 dBm (SRRC), less than 14 dBm (CE)
Protocol	802.11 a/b/g/n
Operating Frequency	2.400-2.4835 GHz | 5.150-5.250 GHz | 5.725-5.850 GHz
Transmitter Power (EIRP)	2.400-2.4835 GHz: less than 23 dBm (FCC), less than 20 dBm (CE/SRRC/MIC) | 5.150-5.250 GHz: less than 23 dBm (FCC/CE/SRRC/MIC) | 5.725-5.850 GHz: less than 23 dBm (FCC/SRRC), less than 14 dBm (CE)
Bluetooth Protocol	Bluetooth 4.2
Operating Frequency	2.400-2.4835 GHz
Transmitter Power (EIRP)	less than 10 dBm
Resolution	19201080
ProdSizeSpec3	5.5 inches
Frame Rate	60fps
Brightness	700 nits
Touch Control	10-point multi-touch
Battery	Li-ion (5,200 mAh @ 3.6 V)
Charging Type	It is recommended to use a charger rated 5 V/2 A or above
Rated Power	4.5 W
Storage Capacity	Expandable (with microSD card)
Charging Time	1.5 hours (with 5 V/3 A charger)
Operating Time	4 hours
Video Output Port	N/A
Operating Temperature	-10 to 40 C (14 to 104 F)
Supported Aircraft Models	DJI Mini 3 Pro, DJI Air 2S, DJI Mavic 3 Classic, DJI Mavic 3, DJI Mavic 3 Cine
GNSS	GPS + BeiDou + Galileo
Dimensions (LWH)	Without control sticks: 168.4123.746.2 mm | With control sticks: 168.4123.762.7 mm
Weight	Approx. 390 g
Model	RM330
Supported SD Cards	UHS-I Speed Grade 3 rating microSD card or above
Warranty	DJI 1-Year Warranty
