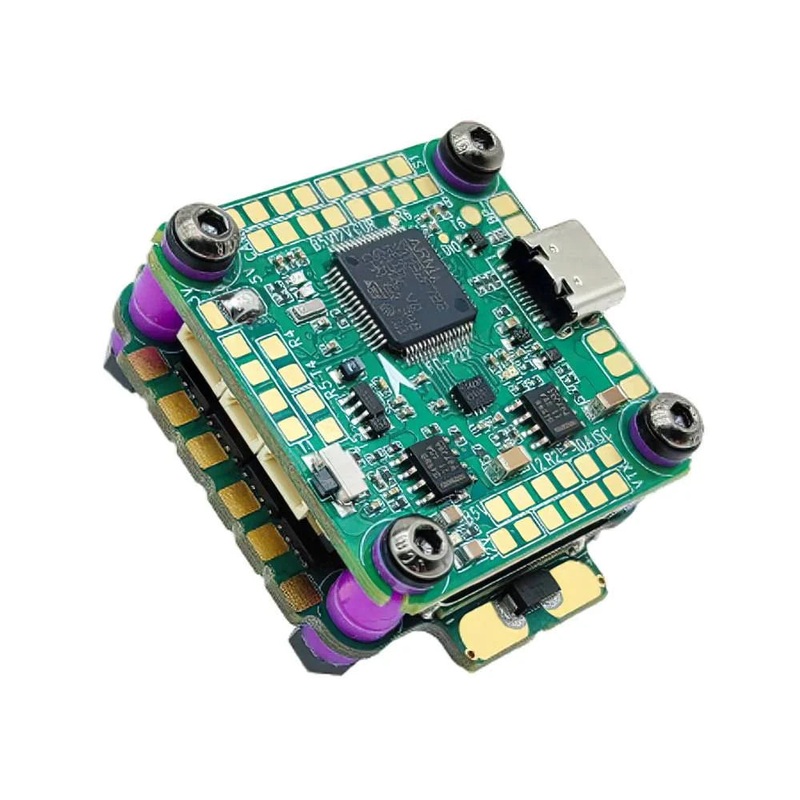

DYS F7 Stack F722 FC + 65A AM_32 2-8S ESC Stack

Ideal for 5-8″+ quads.

Package Includes:

1x FC

1x ESC

1x Hardware Kit

Flight Controller Information:

Mounting Hole: 30.5mm x 30.5mm/M3

BEC Output: 3.3V/1A; 5V/3A; 12V/3A

Gyroscope: ICM42688P

Barometer: BMP280

ESC Signal: 8 Motors

Size: 38mm x 38mm

MCU: STM32F722

Air Unit Port: Yes

Black Box: 16MB

VTX Switch: Yes

OSD: AT7456E

UART: 6 Ports

Input: 6S Lipo

Weight: 10g

ESC Information:

Mounting Hole: 30.5mm x 30.5mm/M3

Firmware: AM32 with F4 MCU

Continuous Current: 65A

Input Voltage: 2-8S Lipo

Burst Current: 80A

Current Rate: 200

Weight: 15.3g
