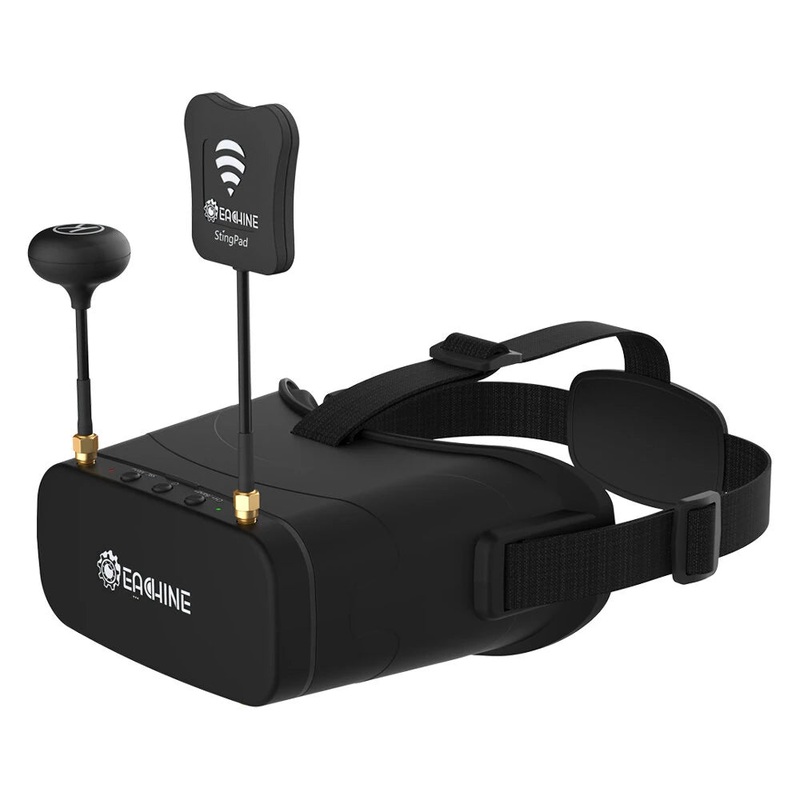

Eachine EV800DM Diversity FPV Goggles

EV800D vs EV800DM Comparison

	EV800D	EV800DM
Weight	362g without antenna	320g without antenna
DVR	720*576px	720*576px
Diversity	Yes	Yes
Varifocal	NO	20mm focal length adjustable;Multi-stop points design for vertical individual user adjust;For more users with different eyesight
Screen size	5.0 inch	3.0 inch
Screen resolution	800*480	900*600
Ratio	16:9, 4:3	4:3
Separable Design	Removable screen, can be used as a monitor.	NO
Support Tripod	Yes, with 1/4 inch screw hole	NO
Glasses Fit	NO	Fit for wear with 140mm*40mmglasses;
Battery	7.4V/1200mAh or3.7V/2000mAh	3.7V/2000mAh

Features:

• Built-in with super HD DVR up to 720*576px resolution
• Diversity RaceBand 40ch Auto-Searching
• Two system (Display/rec0rd duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 speed card to ensure the full frame rec0rding)
• Work friendly withplayer-OSD, no block on the important flying OSD information;
• Focal length adjustable design;Room for eyeglasses
• HD high brightness 3 inch LCD specially tuned for FPV racing;
• Diversity function, Built-in super sensitive5.8GHz 40ch receiver module, with RaceRand;
• Advanced auto-searching function and the working frequency show on screen;
• Built-in3.7V 2000mAh battery, each full charge offer 2.2 hours working time;
• Wide rang re-chargevoltag 5-18V;
• Accept 2S or 3S batteries as back-up power source, to prolong the working time;
• Nice ergonomic design and fit different faces;
• Super-wide visible angle up to 82 degree;
• 92% transparent lens adopted, no distort, no blur on the edge of screen;
• Light weight 320g with 2.2 hr 2000mAh battery, RTF for any scale racing game;
• 3 Inch 900*600px HD high brightness LCD

Description:

• Brand Name : EACHINE
• Item Name : EV800DM
• English ManualClick here

Appearance	Dimension: 150*170*80mm Weight: 320g without antenna Belt : three-way adjustable belt
Specification	Build in DVR rec0rd up to 720*576px full frame rate video, no frame lost (C10 card required) Riplay in MENU Require C10 card to rec0rd full frame rate
Diversity	– 90dB Super sensitiveness in 2pcs RX5808 PRO modules Great performance when two types (Linear and Omni) antennas are used
Display	Screen size: 3.0 inch Screen resolution: 900*600(No blur after enlarge by the lens) Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV Ratio : 4:3 View Angle: 140/120 degree(Horizontal/Vertical)
Lens	3x boost of the video to acquire intense feel-in-there video; 92% transparent rate distort if light;
Varifocal	20mm focal length adjustable; Multi stop points design for vertical individual user adjust; For more users with different eyesight
Glasses Fit	Fit for wear with glasses; Glasses Fit Size;140mm*40mm; Focal length need to be reset when wear glasses
Battery	Built-in 3.7V/2000mAh battery; Each battery circle offer around 2.2hr working time; 5-20V wide rang recharging voltag rang, typical recharging with 5V/2A Charger : 5V, 2A, DC 2.5mm 2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.

Frequencies (5.8GHz, with RaceBand)

CH	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
GROUP
Aor FR1	5865MHZ	5845MHZ	5825MHZ	5805MHZ	5785MHZ	5765MHZ	5745MHZ	5725MHZ
Bor FR2	5733MHZ	5752MHZ	5771MHZ	5790MHZ	5809MHZ	5828MHZ	5847MHZ	5866MHZ
Cor FR3	5705MHZ	5685MHZ	5665MHZ	5645MHZ	5885MHZ	5905MHZ	5925MHZ	5945MHZ
Dor FR4	5740MHZ	5760MHZ	5780MHZ	5800MHZ	5820MHZ	5840MHZ	5860MHZ	5880MHZ
Ror FR5	5658MHZ	5695MHZ	5732MHZ	5769MHZ	5806MHZ	5843MHZ	5880MHZ	5917MHZ

Package Included :

• 1x EV800DM 40CH 5.8G Varifocal FPV Diversity Goggles with DVR
• 1x Clover Antenna
• 1x Panel Antenna
• 1x Battery Charger

• 1x USB Power Charging Cable
• 1x AV In/Out cable
• 1x User Manual
