Overview

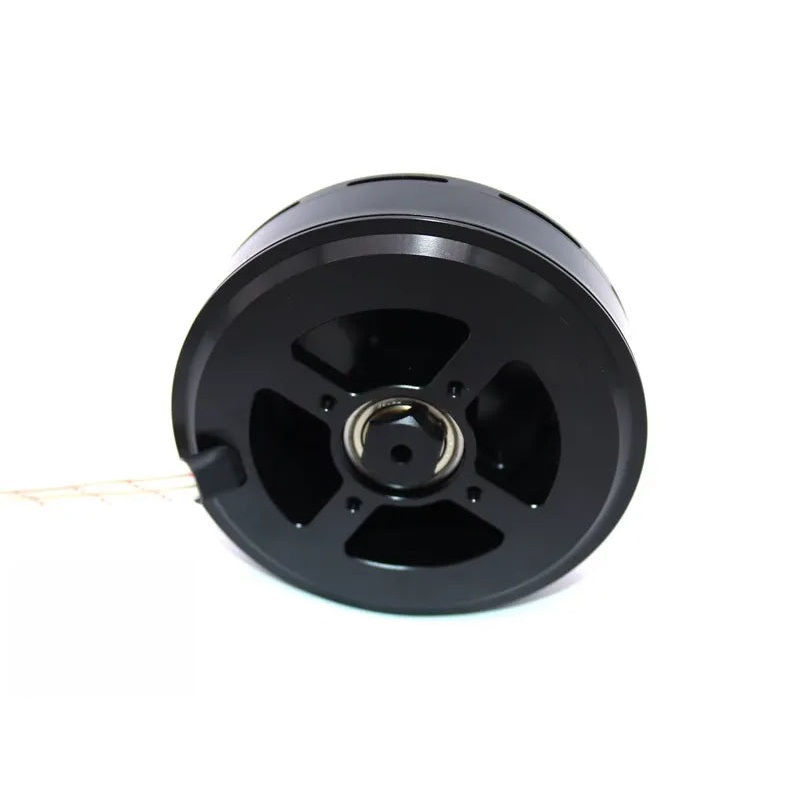

The EaglePower X10 KV115 is a high-performance brushless motor engineered for agriculture and industrial drones requiring heavy-lift capability. With a maximum thrust of 14.9kg when paired with a 12S LiPo battery and UP3212 propeller, this motor delivers efficient, reliable power for demanding aerial applications. Its low internal resistance and optimized mounting structure make it ideal for multi-rotor platforms.
Specifications
| Parameter | Value |
|---|---|
| Model | X10 KV115 |
| Configuration (N / P) | 36N42P |
| Motor Size (mm) | 108 32.9 mm |
| Weight | 560 g |
| Recommended Battery | 12S 14S LiPo |
| No-load Current | 1.4A @ 24V |
| Max Continuous Current | 56.5A (with 12S LiPo + UP3212 propeller) |
| Max Continuous Power | 2738W (with 12S LiPo + UP3212 propeller) |
| Max Thrust | 14900 g (with 12S LiPo + UP3212 propeller) |
| Internal Resistance | 54.5 m |
| Stator Mounting Hole | 4M4, 40 mm |
| Rotor Mounting Hole | 4M3, 31 mm |
| Spindle Diameter | 15 mm |
Load Test Parameters (with 12S LiPo & UP3212 Propeller)
| Pulling Force (g) | Current (A) | RPM | Power (W) | Efficiency (g/W) | Torque (Nm) |
|---|---|---|---|---|---|
| 1520 | 1.85 | 1120 | 89.54 | 16.9757 | 0.7635 |
| 3030 | 4.9 | 1560 | 237.16 | 12.7762 | 1.4518 |
| 4530 | 8.8 | 1906 | 425.92 | 10.6358 | 2.1341 |
| 6050 | 13.45 | 2350 | 650.98 | 9.2937 | 2.6455 |
| 7560 | 19.15 | 2505 | 960.82 | 7.8672 | 3.9512 |
| 9030 | 26.25 | 2755 | 1270.5 | 7.1074 | 4.4041 |
| 10750 | 33.52 | 2980 | 1622.368 | 6.6261 | 5.2963 |
| 12300 | 43.3 | 3250 | 2029.45 | 6.0606 | 6.2727 |
| 13800 | 50.32 | 3468 | 2435.488 | 5.6662 | 6.7604 |
| 14900 | 56.58 | 3504 | 2738.472 | 5.4410 | 7.4636 |
Note: Recommended takeoff weight is 55006500g per motor. All values measured at 100% throttle.
Applications
The EaglePower X10 motor is ideal for:
-
Agriculture drones (crop spraying, seeding)
-
Heavy-lift multi-rotor UAVs
-
Aerial logistics and mapping
-
Industrial drone platforms
Details
E-POWER X10 KV115 motor specifications: 36N42P, 108×32.9 mm size, 560g weight, 12S-14S battery, 1.4A/24V no-load current, 56.5A max continuous current, 2738W max power, 14900g max thrust, 54.5m internal resistance, 4xM4 stator mounting holes, 4xM3 rotor mounting holes, 15mm spindle diameter.
X10 test parameters include load tests with a KV110 motor, 12S lithium battery, and UP3212 propeller. Data covers pulling force, current, RPM, power, efficiency, torque, and notes for various weights from 5500 to 6500g. Results show increasing values as pulling force rises, with maximum efficiency at lower forces.
