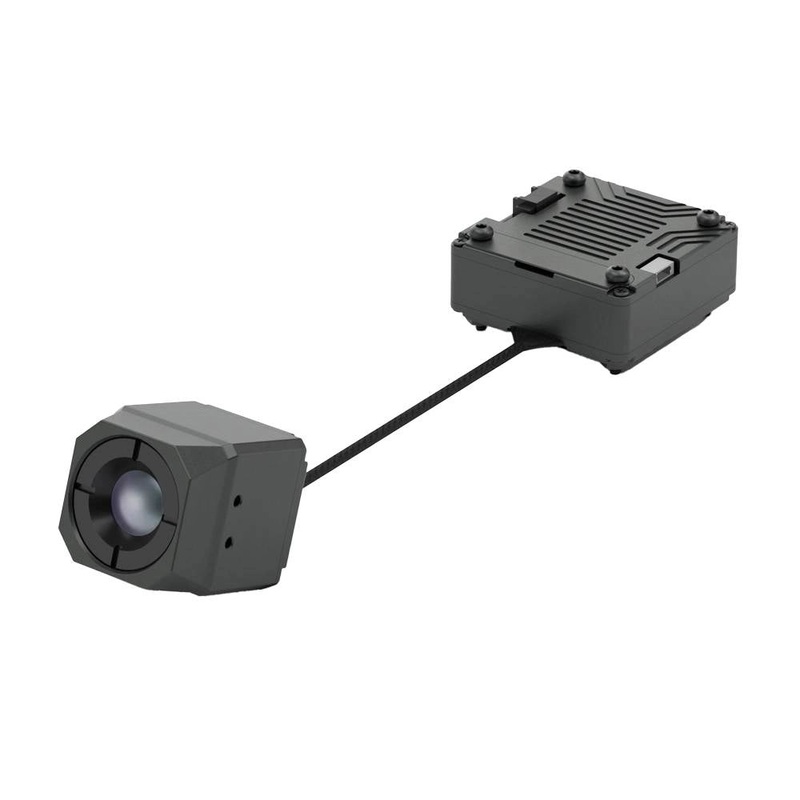

ECLIPSE 004 480 Thermal Analog Camera

Remember when DJI O3 dropped and everyone cried about price? Same energy hereexcept this time its a thermal FPV camera system that actually opens new doors. Meet the ECLIPSE 004 480: a thermal analog camera made for FPV pilots, DIY makers, and anyone who thinks seeing in the dark is more fun than paperwork with the CAA. Infrared, thermal imaging, and proper low-light vision packed into a system that still speaks analog. Yes, Bardwell will eventually review itno, you dont need to wait.

Why You Want It

This isnt just night vision cosplayits actual thermal imaging down to 480p resolution. Spot heat signatures, find lost quads in tall grass, or just creep on your neighbours cat without leaving turtle mode. Its lightweight, plug-and-play, and finally gives analog pilots a way to flex on their digital-only mates. And no, it wont turn you into Predatorbut admit it, you hoped.

Specifications

• Resolution: 480 (thermal, not Netflix 4Kmanage expectations)
• Sensor Type: Thermal infrared imaging (heat vision, basically)
• Output: Analog video signal (yes, your goggles will still understand), however you can also connect this to your digital VTX (such as Avatar, Avatar GT etc..)
• Weight: ~42 g (give or take your solder blobs)
• Lens: Wide-angle thermal lens (spot the warm pizza box at 20m)
• Voltage: 5V input (because everything fun runs on 5V)
• Able to connect with Caddx Air Unit (such as Avatar GT)

Full specs:

• Model Name: Caddx ECLIPSE 004 480 Thermal Analog Camera System
• Detector Type: Uncooled Vanadium Oxide
• Resolution: 480 x 360
• Wavelength range: 812um
• Frame Rate: 50 fps
• Output: PAL
• Latency: 20ms Average
• Interface: CVBS / Digital
• Supply Voltage: 9v – 24v
• Power Consumption: <1.5W
• Lens: F1.0/9.1mm
• FOV: 48(H) x 34(V) x 59(D)
• Image Quality: AI Image Enhancement
• Operating Temperature: -20C~60
• AI module size: 33.5 x 33.5 x 16.5mm

Whats in the Box*

• 1 ECLIPSE 004 480 Thermal Camera
• 1 Wiring Harness

This item does not include individual retail boxes or inserts.

Disclaimer

Accessories may change, but the thermal eye of Sauron (aka the camera) is always included.

Still Here?

Alright, heat-seekeryouve scrolled this far, which means youre either writing a spec sheet or seriously considering a thermal FPV analog camera. Either way, the ECLIPSE 004 480 gives you eyes in total darkness without needing a second mortgage. Toss it in your basket, or at least send this page to that one mate who still thinks flying at night is too risky.
