Overview

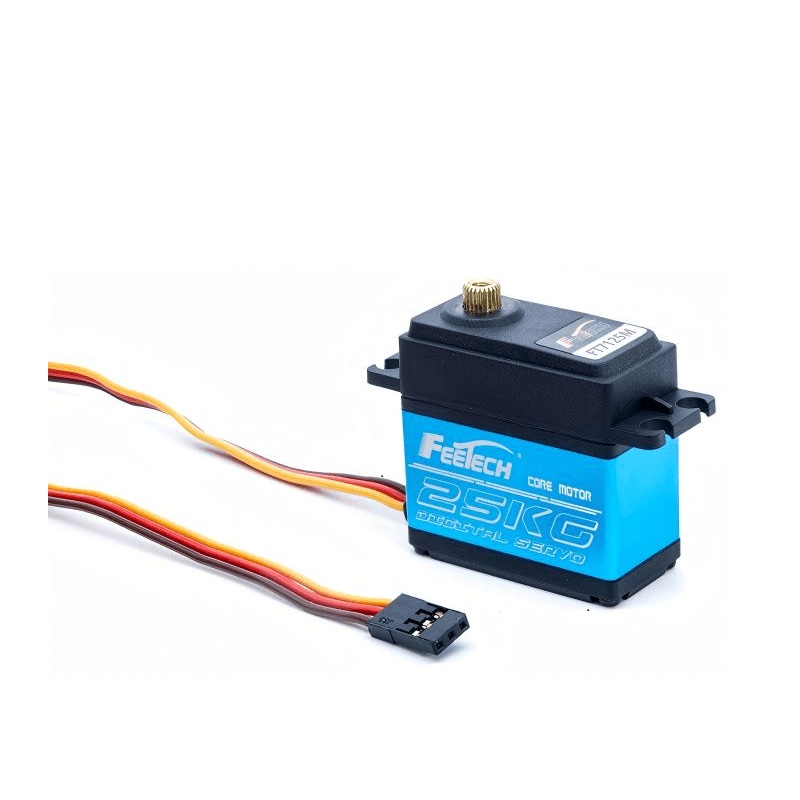

The FEETECH FT7125 Servo Motor is a high-torque, 7.4V 180 PWM-controlled unit designed for robotics and motion applications. It features steel gears, ball bearings, and an aluminum case for durability. For engineers researching FEETECH SCS125, this FT7125 model offers comparable 7.4V performance with 25kg.cm-class capabilities and precise digital control.
Key Features
- Servo Motor with 7.4V 25kg.cm 180 rating
- Steel gear train and ball bearings
- Aluminum case for rigidity and heat dissipation
- PWM command signal with digital comparator control
- 25T/5.9mm horn gear spline
- Gear ratio 1/275; running degree 180 5 (at 5002500 sec)
- Operational voltage range 48.4V
- Electronic protection: stall 8sec
Specifications
| Parameter | Value |
|---|---|
| Model | FT-7125-C001 |
| Product Name | 7.4V 25kg.cm180/7.4V 25KG 180 Degree Servo |
| Storage Temperature Range | -2080 |
| Operating Temperature Range | -1060 |
| Size | A40.16mm B20.16mm C: 40.05mm |
| Weight | 64.5 1g |
| Gear type | Steel |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Gear Ratio | 1/275 |
| Case | Aluminum |
| Connector wire | 30CM |
| Motor | Core Motor |
| Operating Voltage Range | 4-8.4V |
| Idle current (stopped) | [email protected] |
| No load speed | 0.139sec/60(58RPM)@8.4V |
| Runnig current(at no load) | [email protected] |
| Peak stall torque | [email protected] |
| Rated torque | [email protected] |
| Stall current | [email protected] |
| Command signal | Pulse width modification |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 sec |
| Stop position | 1500 sec |
| Running degree | 180 5(at 5002500sec |
| Dead bandwidth | 4 sec |
| Rotating direction | Counterclockwi se (15002500 sec) |
| Electronic Protection | Stall 8sec |
Applications
- Humanoid Robots
- Robotic Arms
- Exoskeletons
- Quadruped Robots
- AGV Vehicles
- ARU Robots
Manuals
- FT-7125-C001 Product Specification (PDF)
- FT-7125-C001 Product Structure Diagram (PDF)
- SC-0090-C001 Serial Communication Specification (PDF)
