Overview

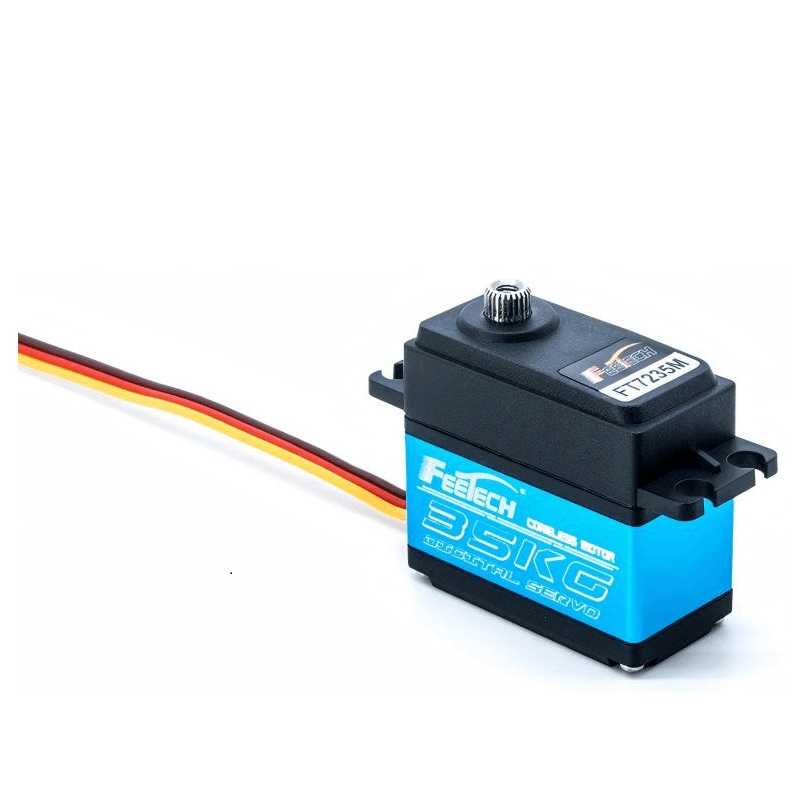

The FEETECH FT7235 is a high-torque Servo Motor designed for robotics and motion-control applications requiring precise 180 positioning and durable construction. Model FT-7235-C001 features a magnetic encoder, steel gear train, aluminum case, and digital comparator control for stable response over a wide 49V operating range.
Key Features
- Magnetic encoder feedback and digital comparator control
- Steel gears with ball bearings for durability and smooth output
- 180 5 travel (at 5002500 sec)
- High torque: peak stall torque [email protected]; rated torque [email protected]
- Fast speed: 0.098sec/60 (102RPM)@8.4V
- Wide operating voltage: 49V
- 25T/5.9mm output spline; aluminum case; 300.5CM connector wire
- Electronic protection: Stall 8sec
Specifications
| Model | FT-7235-C001 |
| Product Name | 7.4V 35KG 180 Degree Magnetic Encoders Steel Gear Servo |
| Storage Temperature Range | -2080 |
| Operating Temperature Range | -1060 |
| Size | A40.7mm B36.5mm C: 20.16mm |
| Weight | 64.5 1g |
| Gear type | Steel |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Gear Ratio | 1/275 |
| Case | Aluminum |
| Connector wire | 300.5CM |
| Motor | Core Motor |
| Operating Voltage Range | 4-9V |
| Idle current (at stopped) | [email protected] |
| No load speed | 0.098sec/60(102RPM)@8.4V |
| Running current (at no load) | [email protected] |
| Peak stall torque | [email protected] |
| Rated torque | [email protected] |
| Stall current | [email protected] |
| Command signal | Pulse width modification |
| Control System Type | Digital comparator |
| PULSE width range | 500~2500 sec |
| Stop position | 1500 sec |
| Running degree | 180 5(at 5002500sec) |
| Dead band width | 4 sec |
| Rotating direction | Counterclockwise (15002500 sec) |
| Electronic Protection | Stall 8sec |
Applications
- Humanoid Robots
- Robotic Arms
- Exoskeletons
- Quadruped Robots
- AGV Vehicles
- ARU Robots
Manuals
- FT-7235-C001-PRODUCT_SPECIFICATION.pdf
- FT-7235-C001_Product_structure_diagram.pdf
- SC-0090-C001Serial_Communication_Specification.pdf
