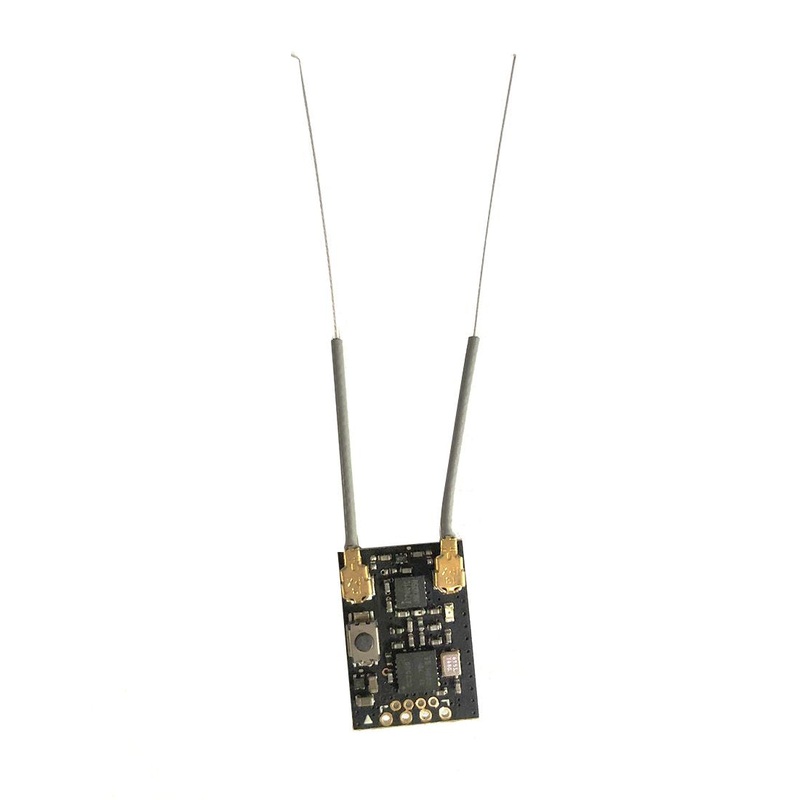

FEICHAO XR602T-A 14CH Mini Receiver for FPV Racing Drone Compatible AFHDS-2A FPV Receiver FLYSKY Radio Controller

FEICHAO XR602T-A 14CH Mini Receiver for FPV Racing Drone Compatible AFHDS-2A FPV Receiver FLYSKY Radio Controller

This receiver is FlySky AFHDS 2A compatible receiver!

Features:
1 Super small size (XR601T is 10*17*3mm, XR602T is 11*17*3mm, Note 1)
2 Super light ( XR601T is 0.66g, XR602T is 0.8g)
3 All XR600T series receivers can be used on any F4 and F7 flight control board with or without signal inverter.
4 Can connect and work on any serial port of F4 and F7 flight control board;
5 IPEX4 antenna plug;
6 Diversity antenna provides best range and best radio frequency performance(only XR602T series receivers support)!
7 Supports data-back function (Note: B1 version doesnt support this function as it is limited by its protocol)
8 Supports working temperature measurement;
9 Supports RSSI output;
10 Supports normal or reversed SBUS (DMA control)
11 Supports normal speed (100Kbs) or high speed SBUS (200Kbs, very useful for reducing time-lapse, Note 2)
12 Supports normal or reversed Fport (DMA contro);
13 Supports normal speed(115.2Kbs) or high speed Fport (230Kbs, helpful for reducing time-lapse, Note 2)
14 Working current/voltage: 50mA/5.0V( when data-back function is on full power running)
15 Supports port function configuration by user (port output protocol configuration, normal or reversed, normal speed or high speed)
16 Supports configured data-back function (configured data-back working or not working, RF output power);
17 Protocol switchable for SPEKTRUM DSMX/2 to SBUS and Fport protocol (A1 version)
18 Protocol switchable for Futaba SFHSS to SBUS and FPort (B1 version);
19 Protocol switchable for FrSky D16 to SBUS and Fport (B3 version)
20 Protocol switchable for FlySky AFHDS-2A to SBUS and Fport (C2 version)
21 Supports firmware online updating;
22 It can change data output protocol and data-back protocol according to customer requirement.
