Overview

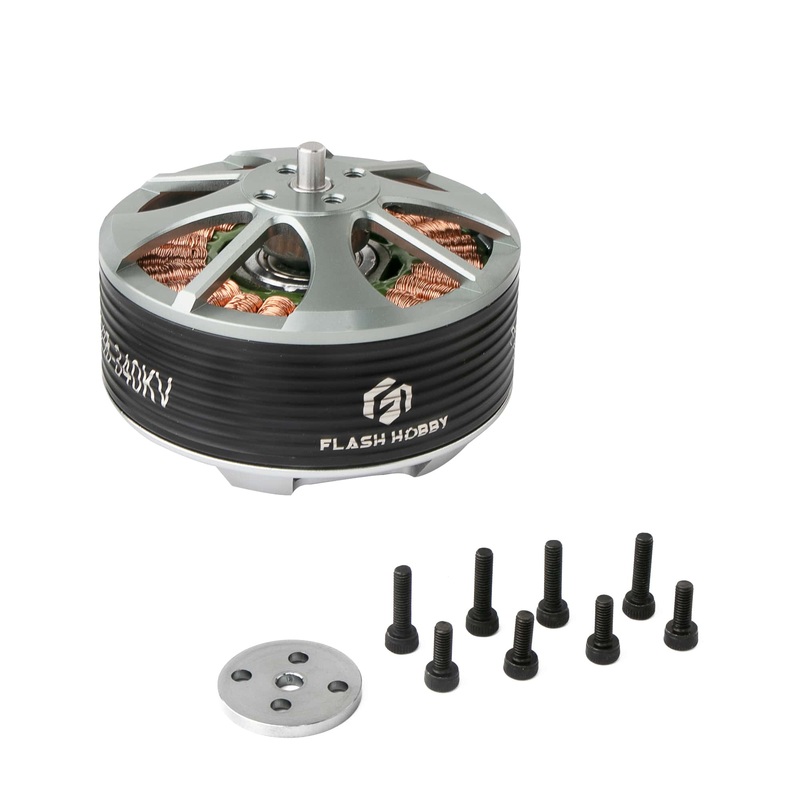

Flashhobby 5215 340KV brushless motor for RC power systems. Listed motor size is 60 x 35mm with a 5.0mm shaft, 289.0g weight (including the cables), and 18# AWG 220mm motor leads.
Key Features
- 48SH magnets (22P)
- NMB/NSK bearing
- Screw lock shaft design
- Precision balanced rotor test
- CNC 6061-T6 aluminum bell
- High temperature resistant copper wire winding
Specifications
| Model | 5215 |
| KV | 340KV (or custom KV) |
| Weight | 289.0g (including the cables) |
| Motor size | 60 x 35mm |
| Shaft diameter | 5.0mm |
| Motor mount | 19*25mm (M3*4) |
| Configuration | 24N22P |
| Motor cable | 18# AWG, 220mm |
Mechanical drawing dimensions (mm)
| Motor outer diameter | 60 |
| Motor length | 35 |
| Mounting holes | 4-M3 |
| Shown diameter | 25 |
| Shown dimensions | 15, 12 |
| Shown diameters | 22, 23.5 |
| Shown hole diameters | 3.1, 5.5, 6 |
| Shown thickness | 2.3 |
| Shown lengths | 26.5, 21.5, 13.6, 3.3 |
| Shown thread | M6 (right-hand) |
| Shown thickness | 2.2 |
| Shown diameters | 17.8, 15 |
| Shown length | 19.6 |
| Shown tip diameter | 3.2 |
Connection
- Connect the motors three phase wires (A/B/C) to a brushless ESC.
- Connect the ESC PWM input signal cable to the receiver.
- Connect the battery to the ESC power leads.
For compatibility questions (ESC, prop adapter fitment, or custom KV requests), contact [email protected] or https://rcdrone.top/.
Details
The 5215 340KV brushless motor features 48SH magnets, an NMB/NSK bearing, and a screw-lock shaft for secure assembly.
The 5215 brushless motor uses a 4M3 mounting pattern and a compact 60mm diameter by 35mm body for easier fit checks in your build.
A brushless motor connects to the ESC through three phase wires (A/B/C) while the receiver supplies the PWM signal and the battery powers the system.
