Overview
The Flashhobby A5020 230KV brushless motor is a 12N14P (14P12N) BLDC motor designed for stable torque output. Manufacturer feature text includes: Precision Control, Stable Torque.
Key Features
- Precision balanced rotor test
- 14P12N (12N14P) high-torque motor design
- CNC 6061-T6 aluminum bell
- High RPM bearing (NSK-5x11x5mm bearing specified)
- High temperature resistant copper wire winding
Specifications
| Model | A5020 |
|---|---|
| KV | 230KV (custom KV option stated) |
| Configuration | 12N14P |
| Weight | 383.65 g (including the cables); scale display shown: 384.0 g |
| Motor size | 57.5 x 45.2 mm |
| Outer diameter | 57.5 mm |
| Overall length (drawing) | 70.2 mm |
| Shaft diameter | 6.0 mm |
| Shaft/thread marking (drawing) | M6 |
| Shaft length (drawing) | 25 mm; additional segment marked 15 mm |
| Motor mount | 25 x 25 mm (4-M4) |
| Mount marking (drawing) | 25 |
| Motor cable | 16AWG-600MM (16AWG black); cable length tolerance shown: +5/0 mm |
| Bearing | NSK-5x11x5mm |
For compatibility checks (mounting pattern, shaft/thread fit, and cable length), contact support at https://rcdrone.top/ or email [email protected].
Details

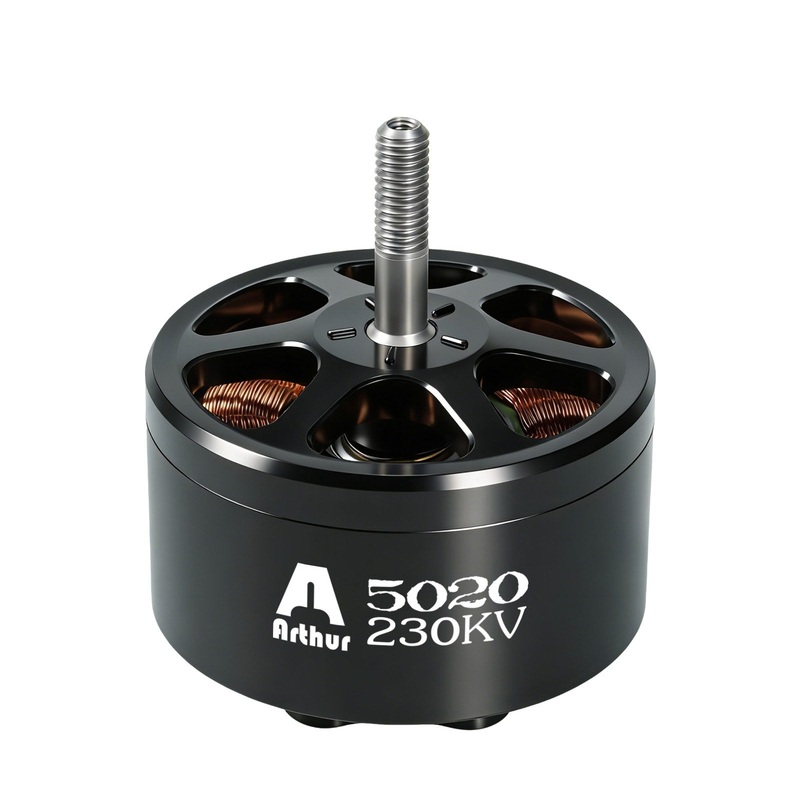

The A5020 230KV brushless motor features a vented can design and a threaded output shaft for secure prop mounting.
The CNC 6061-T6 aluminum bell housing provides a sturdy, impact-resistant motor casing for demanding setups.
The A5020 brushless motor uses tightly wound copper coils around the stator core for consistent operation under heat.
Flashhobby A5020 230KV brushless motor design highlights include a precision balanced rotor, 14P12N high-torque layout, and high-RPM bearings.
The Flashhobby A5020 230KV brushless motor uses a 14-pole, 12-slot (14P12N) design for smooth, consistent torque delivery.
The A5020 brushless motor uses a high-RPM ball bearing design intended to reduce friction and noise during high-speed operation.
The A5020 motor uses an M6 output shaft, 4M4 mounting holes, and 600mm 16AWG black leads for straightforward installation.
The Flashhobby A5020 230KV brushless motor features a black housing with a threaded shaft and exposed copper windings for easy installation.
The A5020 230KV brushless motor features an open bell design with visible copper windings and a threaded output shaft for prop mounting.
The Flashhobby A5020 230KV brushless motor features a threaded output shaft and ventilated housing for easy mounting and airflow.
The Flashhobby A5020 230KV brushless motor features an open-frame design with visible copper windings and a threaded output shaft for prop mounting.
The Flashhobby A5020 230KV brushless motor weighs about 384 g with its attached lead wires.
