Overview
The Flashhobby H450 Helicopter Motor is a brushless motor offered in two KV options (1850KV and 3800KV). It features a 3.5mm shaft, 9N/6P configuration, and a compact motor body size of 29.4 x 38.5mm, suitable for helicopter power systems across the specified LiPo ranges.
Key Features
- Two KV options: 1850KV (1850RPM/V) or 3800KV (3800RPM/V)
- 3.5mm shaft diameter
- 9N/6P configuration
- 3.5mm male connectors
- Specified motor timing: 5deg; drive frequency: 8KHz
Specifications
General
| Model | H450 |
| Weight | 94g (including the cables) |
| Motor size | 29.4 x 38.5mm |
| Motor diameter | 29.4mm |
| Motor body length | 38.5mm |
| Stator diameter | 22mm |
| Stator height / thickness | 22mm |
| Shaft diameter | 3.5mm |
| Overall shaft length | 55.5mm |
| Configuration | 9N/6P |
| Motor mount | 16 x 19mm (M3 x 4) |
| Bolt holes spacing | 16/19mm |
| Bolt thread | M2.5/M4 |
| Connection | 3.5mm |
| Motor timing | 5deg |
| Drive frequency | 8KHz |
1850KV Version
| Motor KV | 1850KV (1850RPM/V) |
| LiPo cell | 2-6S |
| Idle current (Io/10V) | 2.5A |
| Motor resistance (RM) | 0.0382 ohm |
| Max continuous current | 30A |
| Max continuous power | 720W |
| Max peak current | 45A (2seconds) |
| Max peak power | 1080W (2seconds) |
| Suggested ESC | 45A |
| Connector | 3.5mm male connector |
| Weight | 94g |
| Shaft | 3.5mm |
3800KV Version
| Motor KV | 3800KV (3800RPM/V) |
| LiPo cell | 2-4S |
| Idle current (Io/10V) | 3.8A |
| Motor resistance (RM) | 0.0182 ohm |
| Max continuous current | 40A |
| Max continuous power | 650W |
| Max peak current | 65A (2seconds) |
| Max peak power | 950W (2seconds) |
| Suggested ESC | 65A |
| Connector | 3.5mm male connector |
| Weight | 94g |
| Shaft | 3.5mm |
Motor Drawing Dimensions
| Outer diameter (drawing) | 28.4 |
| Body length (drawing) | 38.5 |
| Shaft diameter (drawing) | 3.5 |
| Shaft section lengths (drawing) | 17 / 6 / 5 |
| Bolt hole spacing (drawing) | 19 / 16 |
| Threads noted (drawing) | 2-M4 and 2-M2.5 |
For compatibility questions (ESC, LiPo, connectors) or order support, contact [email protected] or visit https://rcdrone.top/.
Whats Included
- Flashhobby H450 motor
- Mounting screws (set shown)
- Heat-shrink tubes (red/black/blue, set shown)
- 3x bullet-style connectors (set shown)
Applications
- RC helicopter power systems (select 1850KV or 3800KV based on required LiPo cell count and setup)
Details
The Flashhobby H450 helicopter motor uses a 28.4mm diameter body, 38.5mm overall length, and a 3.5mm output shaft for fit checks and mounting alignment.

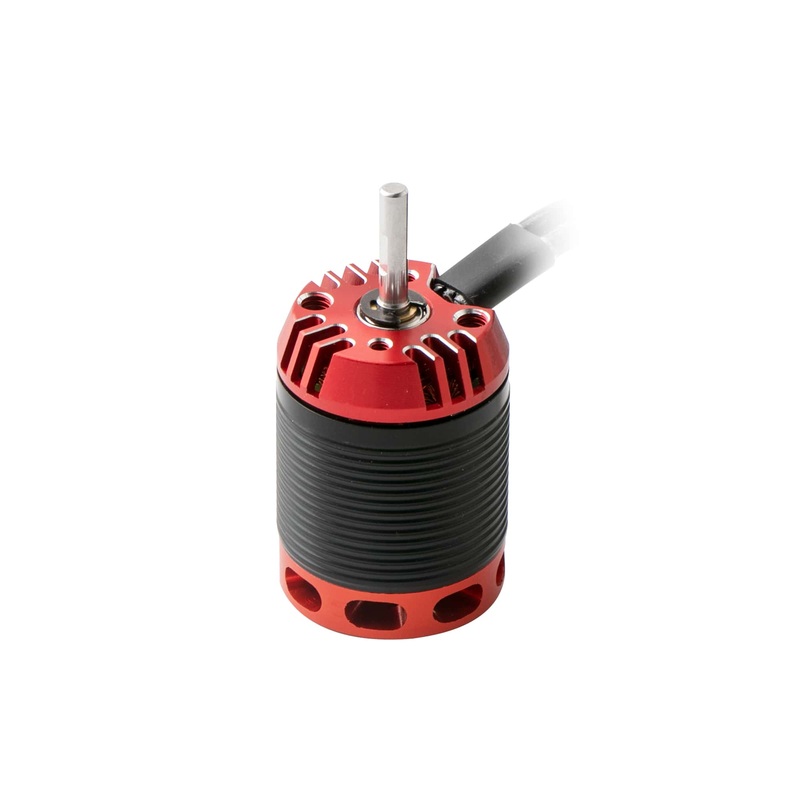

The Flashhobby H450 3800KV motor features a ribbed cylindrical housing with a red end cap and a protruding output shaft for helicopter builds.
The Flashhobby H450 helicopter motor comes with mounting screws, bullet connectors, and heat-shrink tubing for clean wiring.
A basic brushless setup connects the H450 motor to an ESC via three phase wires and uses a PWM lead to the receiver, with the battery powering the system.
