Overview
The Flashhobby H700 530KV Helicopter Motor is a brushless helicopter motor designed for RC helicopter power systems, supporting 3-12S LiPo input and up to 4500W continuous power.
Key Features
- 530KV (530RPM/V)
- Max continuous current: 100A; max continuous power: 4500W
- Peak capability: 150A (2 seconds), 7000W (2 seconds)
- 12N/10P configuration
- 6mm shaft; 5mm male connector
- Motor timing: 5deg; drive frequency: 8KHz
- Mounting options: bolt hole spacing 30/25mm; bolt thread M4/M3; drawing shows 4 x M3 on 025 and 4 x M4 on 030
For pre-sales compatibility questions or setup support, contact https://rcdrone.top/ or [email protected].
Specifications
| Model | H700 |
| Motor KV | 530RPM/V |
| LiPo Cell | 3-12S |
| Max Continuous Current | 100A |
| Max Continuous Power | 4500W |
| Max Peak Current | 150A (2 seconds) |
| Max Peak Power | 7000W (2 seconds) |
| Idle Current (Io/10V) | 1.98A |
| Motor Resistance (RM) | 0.0155a9 |
| Weight | 492g (including the cables) |
| Configuration | 12N/10P |
| Motor Diameter | 53.2mm |
| Motor Body Length | 61mm |
| Motor Size | 53.2 x 61mm |
| Stator Diameter | 41mm |
| Stator Height / Thickness | 35mm |
| Shaft Diameter | 6mm |
| Overall Shaft Length | 99mm |
| Motor Mount | 30 x 25mm (M3*4) |
| Bolt holes spacing | 30/25mm |
| Bolt thread | M4/M3 |
| Connection | 5mm (5mm male connector) |
| Motor Timing | 5deg |
| Drive Frequency | 8KHz |
| Suggested ESC | 150A |
| Drawing dimensions | 38mm section length; shaft segments 24mm and 7mm; 025 (4-M3) and 030 (4-M4) |
Applications
- RC helicopter brushless power systems (3-12S)
Connection Instruction
- Connect the ESC three-phase outputs (A/B/C) to the motor wires.
- Connect the ESC PWM input signal cable to the receiver.
- Connect the battery to the ESC power input.
Details
The H700 motor uses a 53.2mm diameter can, 61mm overall length, and a 6mm shaft with clearly marked mounting hole patterns for fit checks.

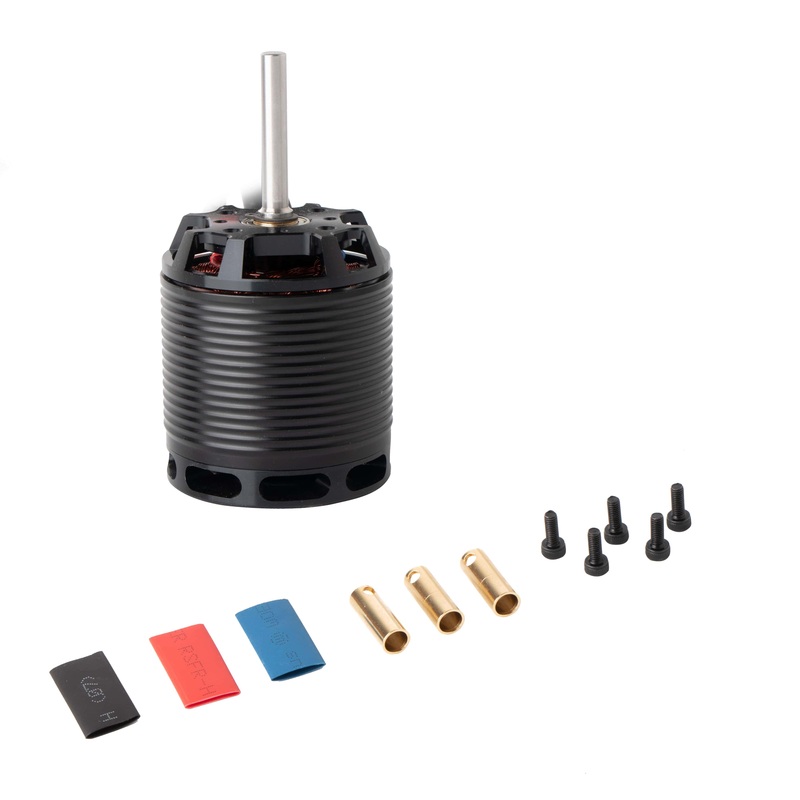

The Flashhobby H700 530KV motor features a finned housing and a 6mm output shaft for helicopter power setups.
Brushless ESC wiring uses a battery lead, a PWM signal cable to the receiver, and three motor phase wires for setup.
