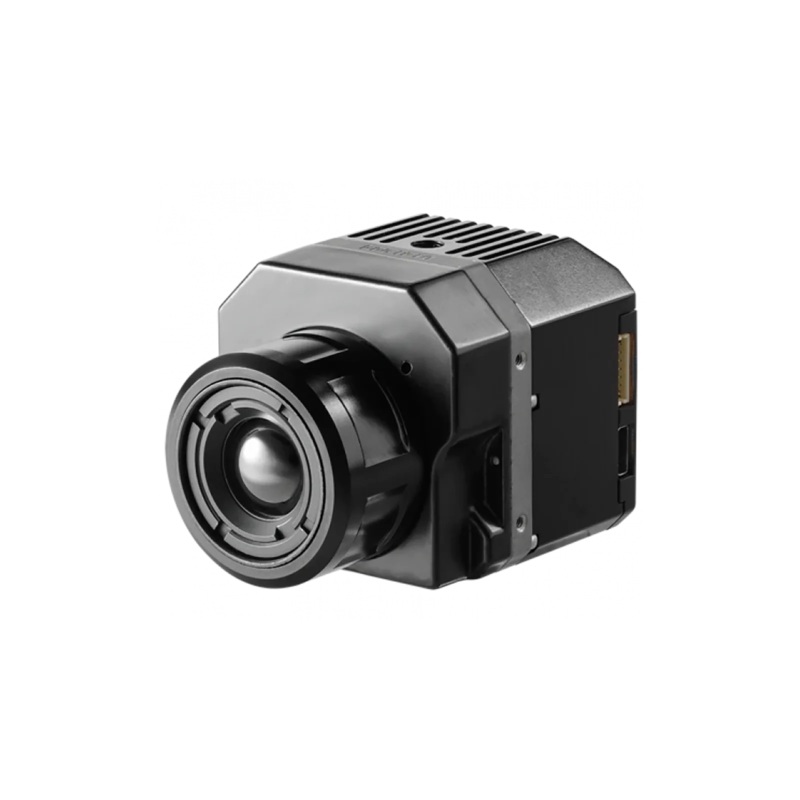

Designed for professional use. FLIR Vue Pro is more than a thermal camera. it is a thermal measurement instrument and data recorder that adds tremendous value to your sUAS operations and services.
Drone Thermal Imaging & Data Recording
- ON-BOARD RECORDING
Vue Pro records digital video and still imagery to a removable micro-SD card so you won’t lose any of your data to transmission loss.
- MAVLINK INTEGRATION & PWM CONTROLS
In addition to MAVLink compatibility for image geo-tagging. the Accessory Port lets you control camera functions in flight by integrating with your drone’s control system.
- EASY TO CONFIGURE
Easy configuration with the FLIR UAS app lets pilots set color palettes. image optimization features. configure PWM inputs without lugging a computer to the field.
4 Ways to Make Drone Inspections More Efficient
To successfully capture accurate drone inspection data. you need to fly in the right conditions. with the right aircraft. and in the right relationship to your target. It is just as important to know how to use the right software to optimize image appearance. batch process images to save time. and more!
SPECIFICATIONS
CONNECTIONS & COMMUNICATIONS
Analog Video OutputYes
ELECTRICAL
Input Voltage4.8 – 6.0 VDCPower Dissipation peak2.1 W (3.9 W)
ENVIRONMENTAL & APPROVALS
Non-Operating Temperature Range-55C to +95COperating Temperature Range-20C to +50COperational Altitude+40.000 feet
IMAGING & OPTICAL
Color PalettesYes Adjustable in App and via PWMFrame Rate30 Hz (NTSC); 25 Hz (PAL)HDMI Output1280x720 @ 50hz. 60hzImage OptimizationYesInvertable ImageYes Adjustable in AppIR Camera Resolution336 x 256Lens13 mm; 25 19Lens Options FOV for NTSC Analog Output13 mm; 24 18Scene Presets & Image ProcessingYes Adjustable in AppSpectral Band7.5 – 13.5 mThermal ImagerUncooled VOx Microbolometer
MECHANICAL
Precision Mounting HolesTwo M2x0.4 on each of two sides & bottom One 1/4-20 threaded hole on topSize2.26″ x 1.75″ (including lens)Weight3.25 – 4 oz (Configuration Dependant)ZoomYes Adjustable in App and via PWM
OPTIONAL POWER & HDMI VIDEO MODULE
Input Power Range5 VDC 28 VDCReverse Polarity ProtectionYes
OTHER
ECCN Code6A003.b.4.b (Fast Video. 60Hz)
6A993.A (Slow Video. 9Hz)
- Model VUE PRO R 336 9mm 9Hz
- Lens 9mm with 35 x 27 FOV
- Sensor Uncooled VOx Microbolometer
- Resolution 336 x 256
- Full Frame Rate 7.5 Hz (NTSC); 8.3 Hz (PAL)
The Vue Pro R gives drone operators and certified thermographers the power to gather accurate. non-contact temperature measurements from an aerial perspective. Every still image the Vue Pro R saves contains accurate. calibrated temperature data embedded in every pixel. adding even more value to your sUAS operations and services than ever. Vue Pro R adds fully radiometric data-gathering to sUAS applications like building and roof inspections. power grid inspections. infrastructure analysis. natural resources management. livestock management. public safety. search and rescue.
Affordable Thermal Imaging and On-board Data Recording
Record digital video and still imagery to a removable micro-SD card. eliminating data transmission loss.
- Simple power-in/video-out interface over 10-pin mini-USB connector
- Image settings optimized for airborne operations
- Record real-time thermal videos in MOV format
- Aircraft flight information is saved in each still image
MAVLink Integration & PWM Controls
In addition to MAVLink compatibility for image geotagging. the accessory port allows remote in-flight camera function control.
- Multiple recording options including flight data in each image
- Mobile app allows for PWM configurations in the field
- MAVLink integration with convenient RS-232 connection
Flexible. Powerful Camera Control and Configurations Options
Easy configuration with the FLIR UAS app lets pilots set color palettes and image optimization features.
- Control selectable camera functions with PWM inputs imagery controls. recording start/stop. and still image capture
- Vue Pro R saves Radiometric JPEGs with temperature data embedded in every pixel
- Vue Pro R saves still images as Radiometric JPEGs or 14-bit TIFF formats
Optional Power & HDMI Video Module
The Optional Power & HDMI Video Module makes the Vue Pro R easier to integrate than ever.
- 10-pin mini-USB connector accepts a wider input power range. provides reverse polarity protection. still provides analog video output and access to the camera’s on-board storage
- The micro-HDMI connector outputs HDMI video for live digital video downlink systems like DJI Lightbridge and 3DR Solo
In The Box
- Vue Pro R Camera
- Bench Cable
- Accessory Cable
- MicroSD card
Manuals/Guides
Manuals
- FLIR Vue Pro R User Guide
Spec Sheets
- FLIR Vue Pro R Data Sheet
Manufacturer Specs
| FLIR VUE PRO R 336 9mm 9Hz Specifications | |
| OVERVIEW | |
| Precision Mounting Holes | Two M2x0.4 on each of two sides & bottom One 1/4-20 threaded hole on top |
| Size | 2.26 x 1.75 (including lens) |
| Spectral Band | 7.5 13.5 m |
| Thermal Imager | Uncooled VOx Microbolometer |
| Weight | 3.25 4 oz (Configuration Dependant) |
| Zoom | Yes Adjustable in App and via PWM |
| CONNECTIONS & COMMUNICATIONS | |
| Analog Video Output | Yes |
| ENVIRONMENTAL & APPROVALS | |
| Non-Operating Temperature Range | -55C to +95C |
| Operating Temperature Range | -20C to +50C |
| Operational Altitude | +40.000 feet |
| IMAGING & OPTICAL | |
| Color Palettes | Yes Adjustable in App and via PWM |
| Full Frame Rate | 7.5 Hz (NTSC); 8.3 Hz (PAL) |
| Image Optimization for sUAS | Yes |
| Invertable Image | Yes Adjustable in App |
| Lens Options | 9 mm; 35 x 27 |
| Lens Options FOV for NTSC Analog Output | 9 mm; 34 x 26 |
| Scene Presets & Image Processing | Yes Adjustable in App |
| Sensor Resolution | 336 x 256 |
| OPTIONAL POWER & HDMI VIDEO MODULE | |
| HDMI Output | 1280720 @ 50hz. 60hz |
| Input Power Range | 5 VDC 28 VDC |
| Reverse Polarity Protection | Yes |
| PERFORMANCE | |
| Measurement Accuracy | +/-5C or 5% of reading |
| POWER | |
| Input Voltage | 4.8-6.0 VDC |
| Power Dissipation peak | 2.1 W (3.9 W) |
Tech Specs
| Thermal Imagers/Building and Industrial Thermal Imagers Template | |
|---|---|
| Detector Size | 336 x 256 Sensor |
| Image Frequency | 9 Hz |
| Video Output | Yes |
| Focus | Adjustable |
| Video Recording | Yes |
| Accuracy | +/-5C or 5% of reading |
| Intrinsically Safe | No |
| Test Equipment General Attributes | |
| Unique Features | Vue Pro R adds fully radiometric data-gathering |
| Warranty | 1 YEARS |
| Warranty Details | This covers evaluation and repair or replacement of nonconforming components. |
| Interfaces I/O | Analog Output. Bluetooth. USB |
| Storage | Micro SD |
| Product Weight | 0.25 LBS |
| Product Height | 1.75 IN |
| Product Length | 2.26 IN |
| Product Width | 1.75 IN |
| Shipping Weight | 0.28 LBS |
| Data Logging | Yes |
| ECCN Number | 6A993.a |
