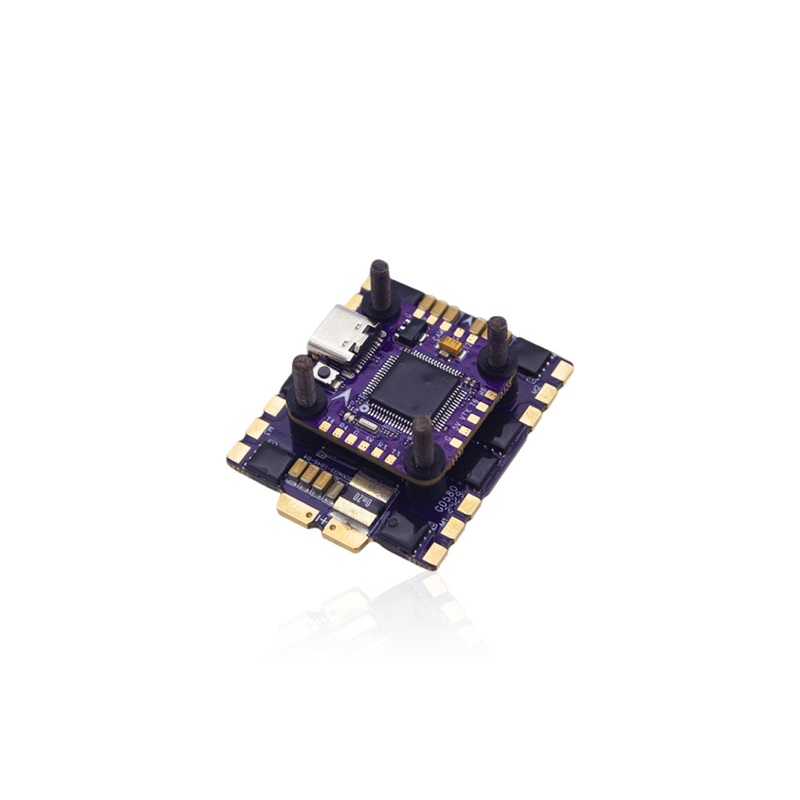

FLYCOLOR 32-bit MINI F7 Flight Controller 60A ESC 3-6S Stack 20X20 for Racing Drone

Features:
1.Double-layer tower structure
Extremely simple two-layer tower structure; the ESC and flight control are connected by quick-connect wiring and supported by silicone shock-absorbing columns. effectively reducing the impact of vibration on the flight control
2.Multiple signals
Supports pulse width input of ordinary PWM throttle mode. supports all DSHOT and PROSHOT digital signals
3.Racing design
Ultra-small PCB size. better device selection. designed for racing
4.High-performance MCU
ARM 32-BIT CORTEX core MCU STM32G0 series. operating frequency up to 64MHZ; flight control MCU: STM32F722

Speficication:
Number of lithium batteries:3-6S
Continuous current:4560A
Flight control output voltage:5V3A
Dimensions:44x36x16.5mm
Weight:20g
Typical application:170-450 multi-rotor

F7 Flight Control
An additional spare pad is reserved at the bottom of the socket for emergency use
Ultra-small PCB size. better device selection. specially designed for racing;
Supports analog image transmission and digital image transmission.

60A ESC
MCU: ARM 32-bit Cortex core MCU STM32G0 series
ESC parameter adjustment and upgrade: BLHeliSuite32Test (stand-alone version)
Mounting hole: 30.5×30.5mm/20*20. M3
PWM frequency supports up to 128K
High performance. low internal resistance Mosfet. not afraid of high current. more suitable for violent flight

Package Includes:
1x FLYCOLOR 32-bit Mini F7 Flight Controller 60A ESC 3-6S Stack
