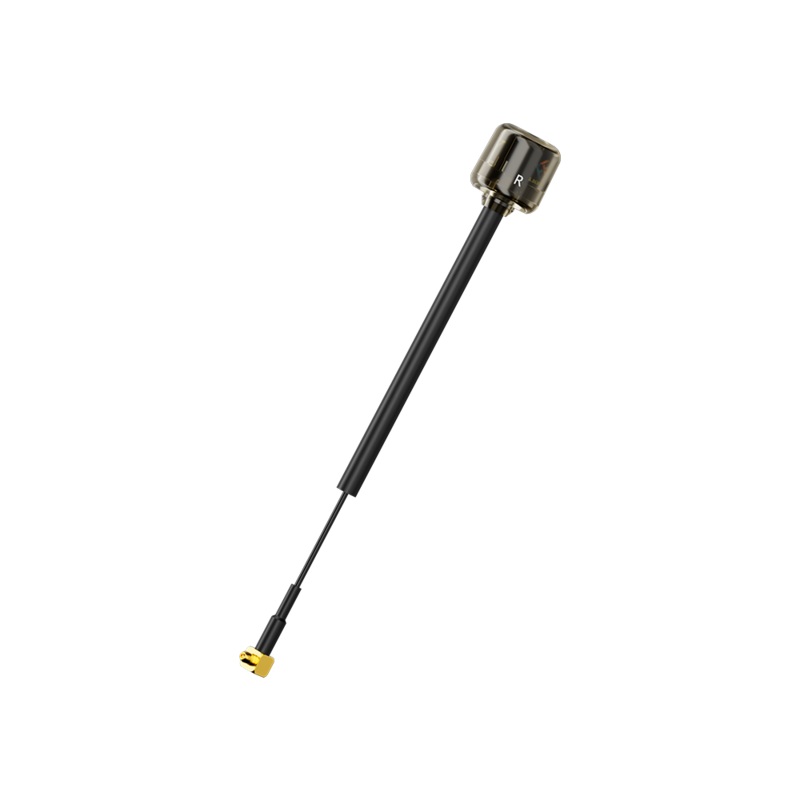

The FlyFishRC Osprey Antenna combines a lightweight structure with an innovative 4-leaf design to deliver exceptional signal clarity, strength, and penetration, all at a competitive price for FPV pilots. Its transparent casing houses a unique hybrid network, making it more compact than typical 5.8GHz CP antennas, measuring just 14.1mm in diameter and 14mm in height. Despite its size, it achieves a high gain of up to 2.8dBi and 99% radiation efficiency, surpassing many alternatives. Precision engineering ensures a nearly perfect circular shape for enhanced range and penetration, covering a 5.6GHz6.0GHz bandwidth suitable for all standard FPV frequencies. The durable, hermetically sealed polycarbonate casing protects internal components from impact and environmental damage.
Package Includes
1x FlyFishRC Osprey 5.8Ghz SMA Antenna – MMCX 90mm
Specifications
Gain: 2.82dBi
Frequency: 5.8GHz
V.S.W.R: 1.2:1
Radiation Efficiency: 99%
Polarization: RHCP
Connector:Gold plated MMCX
Dimensions(head): 14.1mm dia. X 14mm height.
Length: 104mm
Cable: Resilient RG141 coax.
Colors: Transparent Black
Weight: 3.77g
