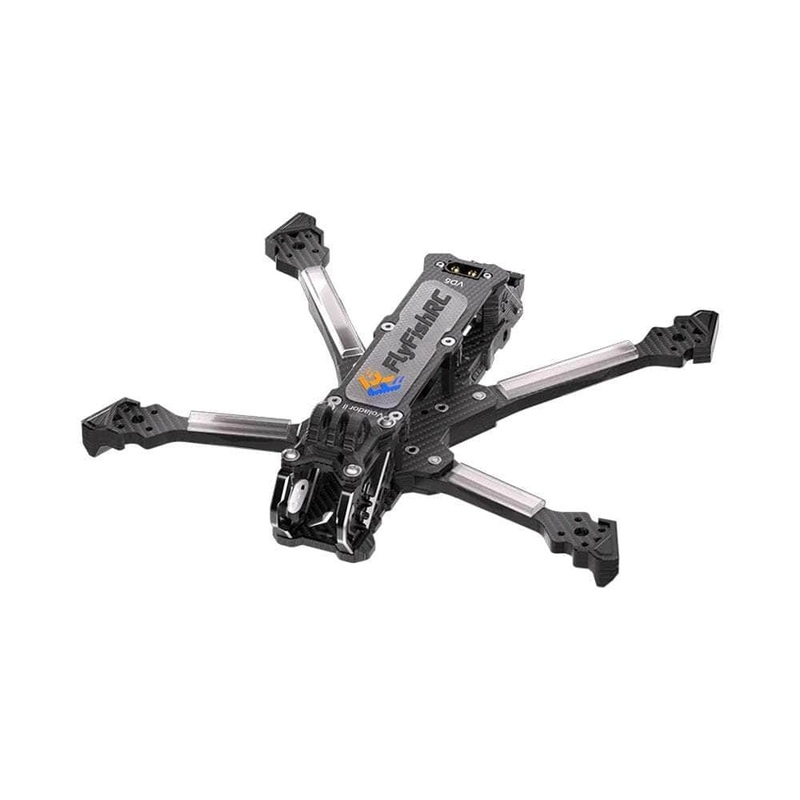

The FlyFishRC Volador II VD5 O4 Pro Frame Kit is a refined 5-inch Deadcat frame designed for ultra-clean HD footage with no props in view. Based on pilot feedback, its been upgraded for easier builds, better durability, and a sleeker look. Using smart design features like an anti-vibration camera mount for the DJI O4, high-quality materials, and neatly integrated parts, the VD5 offers a smooth, stable flying experience and a super tidy setup.
Check out our other 5″ framesas well as the rest of ourFlyFishRC productsselection!
Features
- CNC aluminum camera plates
- Strong hardware with Loctite
- Low-resonance frame design
- Fits 19mm & 20mm cameras
- Anti-jello O4 camera mount
- Durable TPU components
- Wide electronics support
- Built-in XT60 connector
- Ready for analog & HD
- Motor wire protectors
- Anti-slip battery pad
- T700 carbon fiber
Specifications
- Stack mounting holes: 20mm x 20mm / 30.5mm x 30.5mm (M3)
- VTX mounting holes: 20mm x 20mm / 25.5mm x 25.5mm (M2)
- Total Dimensions: 190 mm x 136 mm
- Wheelbase: 225mm
- Weight: 186.4g (with TPU parts)
- FPV cam spacing: 19mm / 20mm
- Bottom plate thickness: 2.5mm
- CNC Side plate thickness: 5mm
- Middle plate thickness: 2.5mm
- Material: T700 carbon plate
- Top plate thickness: 2.5mm
- Side plate thickness: 2mm
- Keystone thickness: 5mm
- Propeller size: 5~5.1 inch
- Arm Thickness: 6mm
- Color: Black
Includes
- 1x FlyFishRC Volador II VD5 O4 Pro Frame Kit – Black
