FLYSKY FS-SR8C 8 Channels 2.4G Receiver SPECIFICATIONS

Brand Name: DSPOWER

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Radio Systems

Size: 22*15*3mm

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Certification: CE

Upgrade Parts/Accessories: Receiver

Remote Control Peripherals/Devices: Receivers

Tool Supplies: Assembled class

Quantity: 1 pcs

Technical parameters: Value 6

Model Number: FS-SR8C

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

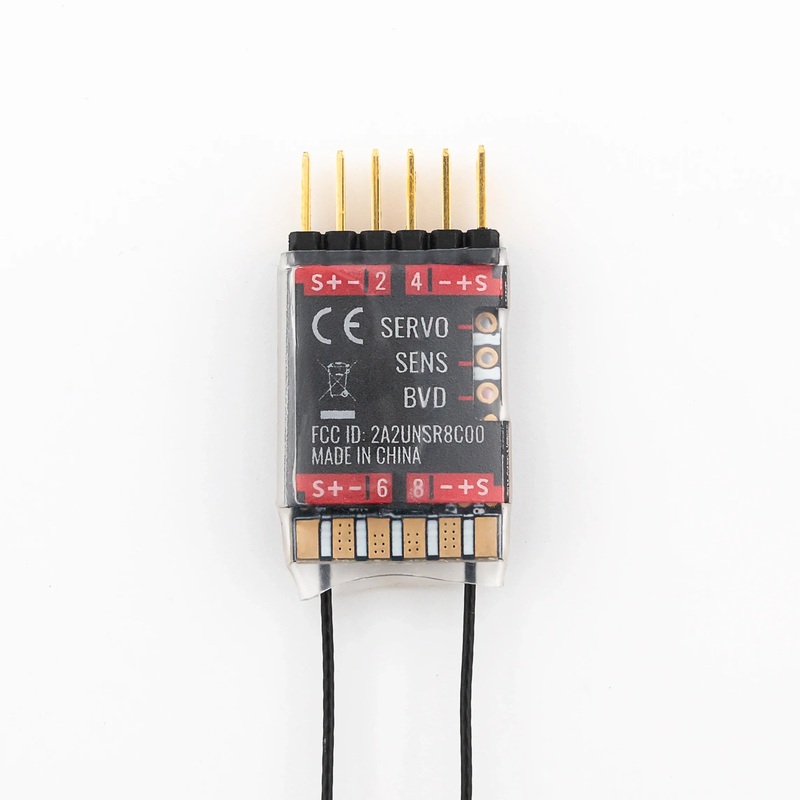

FLYSKY FS-SR8C 8 Channels 2.4G Receiver Dual Antenna for RC Fixed Wing Gliders Robot Model Toy ANT Protocol Transmitter FS-ST8

Specifications:

• Product Name: FS-SR8C

• Compatible Transmitters: Adapts transmitters with ANT protocol. such as FS-ST8

• Compatible Models: Fixed-wing aircraft. delta-wing airplanes. gliders or robots. etc.

• PWM Channels: 8

• RF: 2.4GHz ISM

• Maximum Power: < 20dBm (e.i.r.p.) (EU)

• 2.4G Protocol: ANT

• Resolution: 4096

• Antenna: Two antennas (ipex4)

• Distance: > 800m (Air distance without interference)

• Input Power: 3.5~9V/DC

• Working Current: 70mA(5V)

• Data Output: PWM/PPM/i-BUS/S.BUS

• Online Update: Yes

• Temperature Range: -10 ~ +60

• Humidity Range: 20% ~ 95%

• Dimensions: 22*15*3mm (Excluding pins and antennas)

• Weight: 1g (Excluding pins and antennas) 2g (Including 4*3 pins and two antennas)

• Certifications: CE. FCC ID: 2A2UNSR8C00

Package list:

1 x FS-SR8C Receiver
