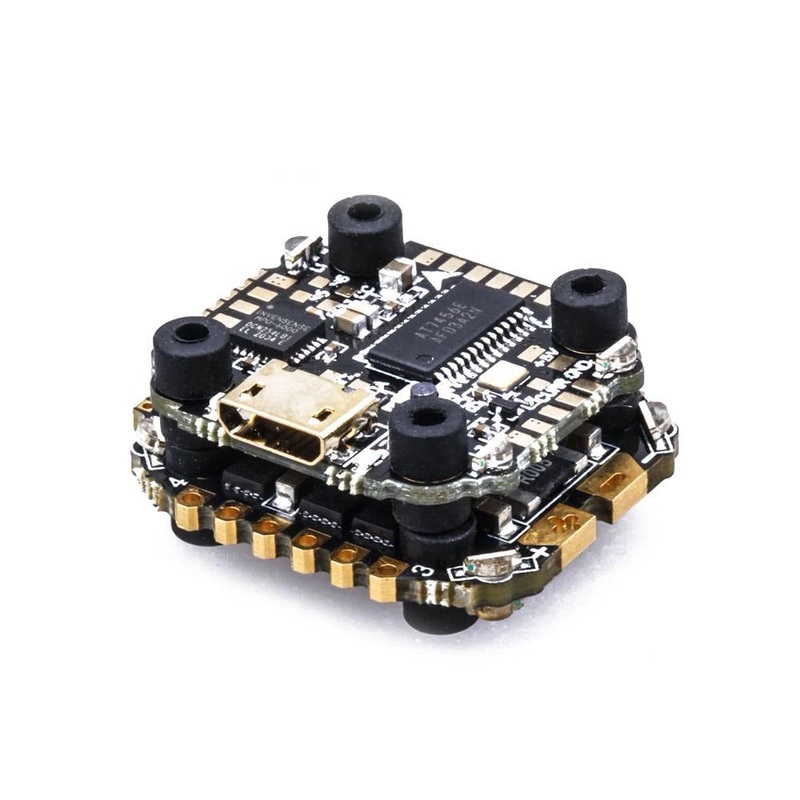

Flywoo GOKU F411 F4 V2.1 16×16 Stack + 35A 2-6S BL_S 4-in-1 ESC

About this product

The Flywoo GOKU F4 35A nano stack features GOKU F411 F4 V2.1 16×16 FC and GOKU 35A 2-6S BL_S 4-in-1 ESC. If you don’t like AIO, but want you want to build an ultralight 3” -5” racing quads, this powerful stack can definitely meet your FPV needs!

The Flywoo GOKU F411 Flight Controller (MPU6000) features 2 hardware UARTS, MPU6000 (SPI) IMU, STM32F411 MCU, and supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. The F411 features 2 hardware serial ports, 2 software serial ports,4 WS2812 LEDs, a black box, I2C, and 5V/2A BEC. The ESC uses BLS, supports DSHOT600 built-in current sensor, supports up to 6S input, and the maximum current is 35A.

Specifications

Flywoo GOKU F411 F4 V2.1

• MCU: STM32F411
• IMU: MPU6000 (SPI)
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 2 hardware UARTS (UART1,2)
• 2 Software serial port
• 1 I2C port for compass/baro
• Onboard LEDWS2812*8(FC*4/ESC*4)
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• PPM and PWM receivers are not supported.
• Onboard 8Mbytes for Blackbox logging
• 5V Power Out: 2.0A max
• 3.3V Power Out: 0.5A max
• Dimensions: 23.5×23.5mm
• Mounting Holes: Standard 16mm square to the center of holes
• Weight: 6.5g

Flywoo 35A 2-6S BL_S 4-in-1 ESC

• Support BLheli / BLHELI_S
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input Voltage: 2-6S Lipo
• Continuous Current: 35A
• Firmware: BLHELI_S

Includes

• 1 xFlywoo GOKU F411 F4 V2.1 16×16
• 1 x Flywoo 35A 2-6S BL_S 4-in-1 ESC
