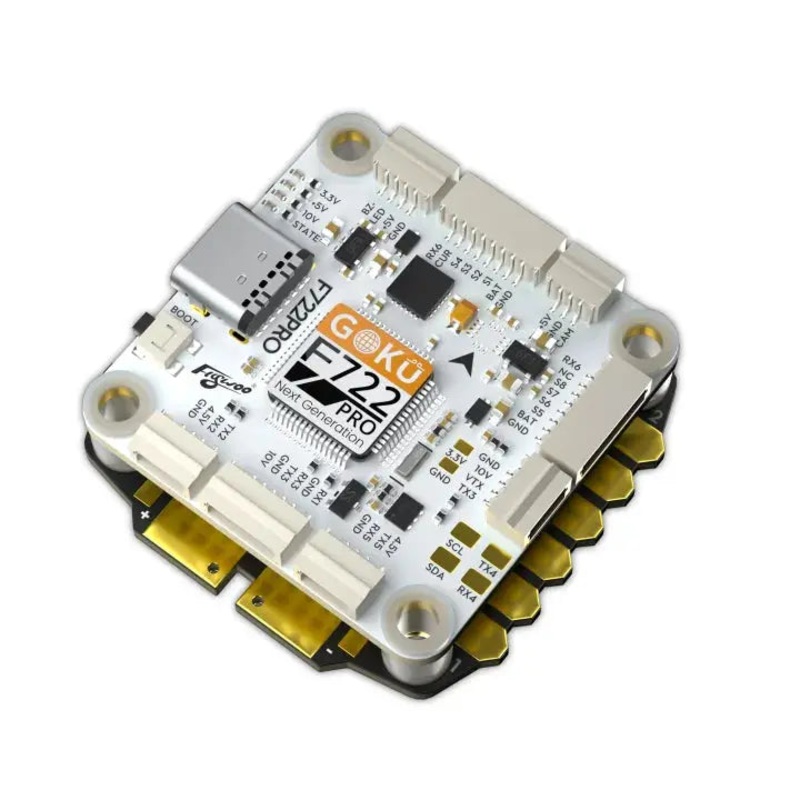

Flywoo GOKU F722 Pro V2 55A 32Bit 128K 30X30 Stack

The Flywoo GOKU F722 Pro V2 Stack is an upgraded high-performance flight controller designed for drone enthusiasts and professionals. This stack features the STM32 F722 processor and ICM42688 gyroscope, providing exceptional stability and precision for high-speed drone racing and freestyle flying. It supports 8 motor outputs and reserves dual 4-in-1 ESC sockets, making it ideal for advanced builds.

With its plug-and-play functionality, the Flywoo GOKU F722 Pro V2 simplifies drone building and is compatible with DJIs O3 Air Unit. Its equipped with a large 16MB black box for flight data storage, and modular installation is a breeze thanks to its snap-lock sockets, eliminating the need for soldering. The Flywoo GOKU F722 Pro V2 Stack also includes robust BECs that provide 10V/3A and 5V/3A outputs, ensuring stable power for peripherals.

With its durable construction, this Flywoo GOKU F722 Pro V2 Stack can handle high temperatures and current loads. This feature-packed controller is perfect for any drone pilot looking to push performance limits.

Highlights

1. High-performance processor:Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response.
2. Precision gyroscope:Features the ICM42688 gyroscope for improved control precision and enhanced flight stability.
3. Modular installation:Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads.
4. Large-capacity black box:Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis.
5. Stable current output:Onboard 10V/3A and 5V/3A BEC to provide stable current output for VTX and various peripherals.
6. Multiple motor outputs:Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections.
7. Durable design:Utilizes immersion gold PCB manufacturing process to ensure high-temperature and high-current resistance, guaranteeing stable operation.

Specifications

GOKU F722 PRO V2 Flight Controller

• BF Flight Controller Firmware:FLYWOO F722PRO
• INAV Firmware:FLYWOO F722PRO
• MCU: STM32F722
• Gyroscope: ICM42688
• OSD: AT7456E
• Barometer: DP310
• Black Box: 16MB
• UARTS: 1/2/3/4/5/6
• Input Voltage: 7.4V-26V/2-6S LiPo
• BEC: 10V3A/5V3A
• Flight Controller Size: 37mm x 37mm x 8mm
• Mounting Holes: M3 30.5×30.5mm
• Weight: 9.9g

GOKU G55M BL32\ AM32 4in1 ESC

• Support BL32 \ AM32 (Depends on which version you ordered)
• Support Dshot300, Dshot600,Dshot1200
• PWM frequency: 24k-128k
• Input Voltage: 3-6S Lipo
• Continuous Current: 55A
• Firmware:
  BL32 GOKU_F4A32_PROAM32AT32DEVF421
• Weight: 15g

In the Box

• 1 x FC&ESC Connection Cable
• 1 x Buzzer Connection Cable
• 1 x GPS Connection Cable
• 1 x DJI O3 Connection Cable
• 1 x Receiver Connection Cable
• 4 x M3 Shock-Absorbing Ball
• 7 x M3 Rubber Ring
• 1 x Analog VTX Connection cable
• 1 x Camera Connection Cable
