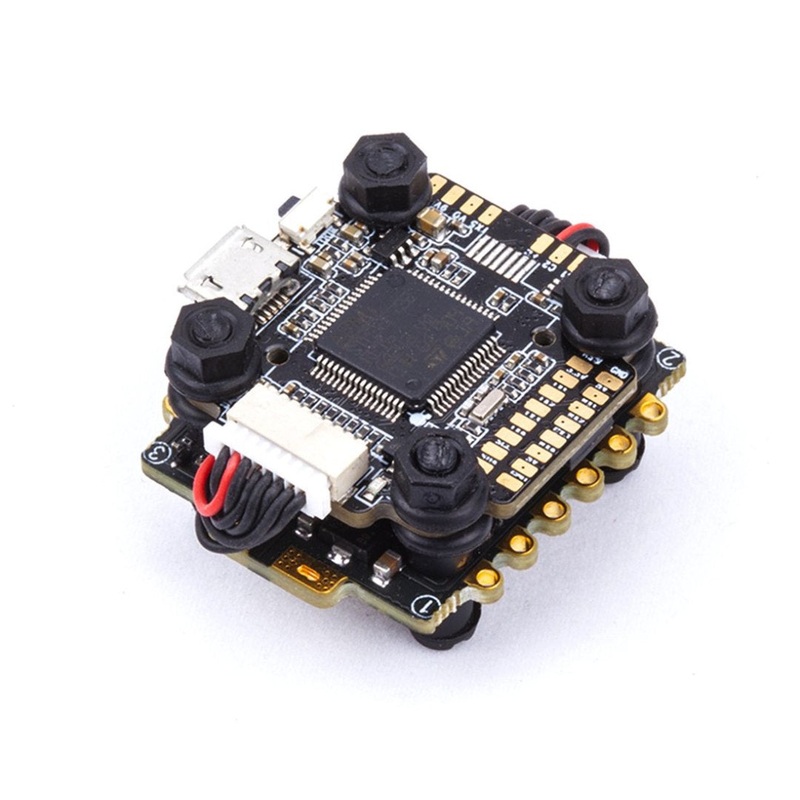

Flywoo GOKU F722Mini F7 Flight Controller & GOKU 406S 40A BL_32 2-6S ESC Stack

Description

INAV Firmware download

20x20mm F722Mini F7 Flight Controller & GOKU 406S 40A BL_32 2-6S 4in1 ESC Stack

Specification:
Brand Name: Flywoo
Model:GOKU F722Mini stack
Item Name: F7 Flight Controller & 40A 4IN1 ESC Flytower

GOKU F722MINI F7 Flight ControllerMCU: STM32F722RET6 216MHzGyroscope: MPU6000Barometer: BMP280/FLASH: 16MInput Voltage: 3-8S Lipo
BEC: 5V 2A / 9V 2ADual camera switch&Support Camera Menu SettingsMax voltage 50V input6 Functional UARTS (UART1,2,3,4,5,6)Max 6 motor output
Mounting Hole: 20x20mm (M3)GOKU 406S 40A 4IN1 ESCItem Name: 40A BLheli_32 2-6S 4in1 Brushless ESCBurst Current: 50AInput Voltage: 2-6SFirmware: BLheli_32 BEC: NOWeight: 7.2g (including heatsink)Mounting Hole: 20x20mm ( M3)- Support Telemetry/Current Meter- Support Oneshot, Multishot, DShot150/300/600 and DShot1200

Package Included:
1x GOKU F722Mini F7 Flight Controller
1x GOKU 406S 40A 4in1 ESC
1x Capacitor
8x Anti-vibration Ball
1x bag of Screws
