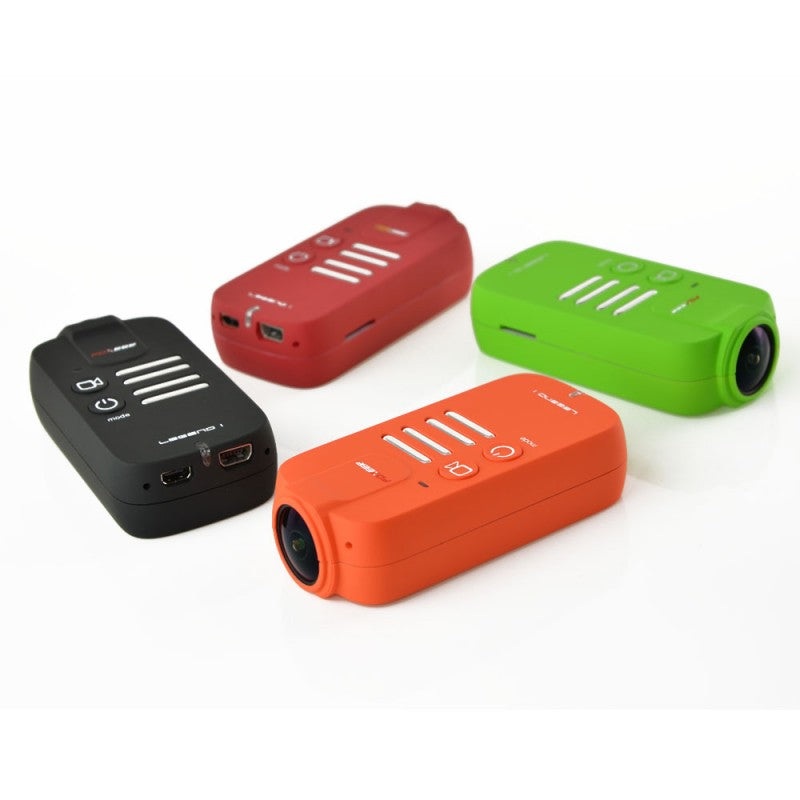

Foxeer Legend 1 Action Camera Overview
The Foxeer Legend 1 1080P 60fps Action Camera is designed for professionals and enthusiasts alike, delivering top-notch performance in a compact and lightweight design. Weighing only 49g, this tiny powerhouse is equipped with an Ambarella A7LS processor and a 16MP Sony Exmor R BSI CMOS sensor, ensuring high-speed pixel processing, enhanced dynamic range, and outstanding color fidelity, even in low-light conditions.
With a 7G optical glass lens featuring a 166 ultra-wide-angle field of view, you can choose between wide, normal, or narrow modes for capturing immersive footage. The 1080P60fps recording capability allows you to capture fast-paced action with smooth clarity. Additionally, the camera supports a range of resolutions, including 1296P30fps, 1080P60fps, 1080P30fps, 720P120fps, and 720P60fps, providing versatile options for different recording needs.
UAV remote control functionality is also a standout feature of this action camera, allowing you to wirelessly activate photo and video capture using a UAV remote controllerperfect for aerial photography and drone applications. The 850mAh LiPo battery ensures extended recording times, and with time-lapse capabilities, you can capture stunning interval-based footage with ease.
Foxeer Legend 1Key Features:
- Ambarella A7LS Processor: Ultra-high-speed pixel processing for sharp and vivid images.
- Sony IMX206 Sensor: 16MP Sony Exmor R BSI CMOS sensor reduces noise and enhances low-light performance.
- Multiple Recording Modes:
- 1080P60fps, 1080P30fps
- 1296P30fps
- 720P120fps, 720P60fps
- 7G Optical Glass Lens: F2.5 large aperture with a 166 ultra-wide-angle view for expansive shots.
- Time-Lapse Photography: Capture photos at intervals from 1 second to 60 seconds for creative video effects.
- UAV Remote Control: Exclusive R&D wireless control capturing technology, allowing remote operation via UAV controllers.
- Lightweight Design: Only 49g, perfect for mounting on drones and other lightweight platforms.
- 850mAh Battery: High-efficiency LiPo battery for long-lasting recording.
Foxeer Legend 1Specifications:
| Foxeer Legend 1 | ||
| Image | Type | 1/2.33 CMOS 16.37 MP (Sony IMX206) |
| Sensor | Effective Pixels | Approx. 16.35 Mega Pixels (4672 * 3500) |
| Output Pixels | Approx. 16.76 Mega Pixels | |
| Lens | Focal Length | Lens f= 3mm |
| F No. | F= 2.5 | |
| F.O.V(D) | 166(H=120 V=89) | |
| Focusing | Type | Fixed |
| Exposure | Control | Programmed AE |
| Compensation | 2EV (0.33 EV steps) | |
| ISO Equivalent | Auto, 100, 200, 400, 800, 1600 | |
| LED | Modes | No |
| White Balance | Auto / Cloudy / Daylight / Incandescent | |
| Shooting | Still Image | Modes: Single Image up to 16M |
| FHD 1080P | 1206P: 2304*1296P 30fps | |
| 1080P: 1920*1080P 60/30 fps | ||
| 720P: 1280*720P 120/60/30 fps | ||
| FOV | Wide / Normal / Narrow | |
| Audio | Mic and Speaker (Mono) Equipped | |
| Storage | Media | Internal memory: no internal memory |
| External memory: supporting SDHC Card up to 64GB | ||
| File Format | Photo : JPEG | |
| Audio : PCM 48KHZ 16bit | ||
| Video : H.264 High Profile Level 4.2 MP4 | ||
| Image Size 5Mp | 16M4608x3456 | |
| 12M4000x3000 | ||
| 8M3264x2448 | ||
| 5M2560x1920 | ||
| Video Output | HDMI: Support 1920X1080P60 output With CEC | |
| Composite: NTSC/PAL | ||
| Time Lapse Function | Video: OFF / 1 Seconds / 2 Seconds / 5 Seconds / 10 Seconds / 30 Seconds / 60 Seconds | |
| Photo Functions | Auto Shooting OFF / 3 Seconds / 5 Seconds / 10 Seconds / 30 Seconds / 60 Seconds | |
| Language | English | |
| Interface | USB 2.0 : Recharging/File Transfer | |
| Power Source | Li-ion rechargeable Battery 850 mAH | |
| Accessories | USB Cable, AV Cable | |
| Dimensions (W*H*D) | L: 75mm, W: 37.5mm, H:17mm | |
| Weight | ||
| Support | Mass Storage Driver | |
| Windows XP(Service pack 2) or later | ||
| Mac OS X 10.4.11 or later | ||
| System Requirements | ||
| For Windows | *PC with processor better than Pentium 4 3.2GHz | |
| *Windows XP(Service pack 2) or later | ||
| *Minimum 1 GB System RAM | ||
| *Minimum 256 MB RAM Video Card | ||
| *USB port, CD-ROM drive | ||
| *1024*768 pixels, 32-bit color display compatible monitor | ||
| Package Includes | 1 X Foxeer HD 60fps camera | |
| 1 X USB cable | ||
| 1 X Manual |
Ideal for:
- Aerial photography and videography with UAVs
- Action sports recording with a lightweight setup
- Time-lapse photography and creative video projects
The Foxeer Legend 1 is a versatile, feature-packed action camera designed for FPV pilots, drone enthusiasts, and anyone in need of high-quality video capture in a compact form factor. With its range of recording options, robust design, and wireless control capabilities, this camera provides everything needed to capture stunning, dynamic footage.
Foxeer Legend 1 Action Camera captures stunning 1080P video at 60 frames per second for smooth and detailed footage.
