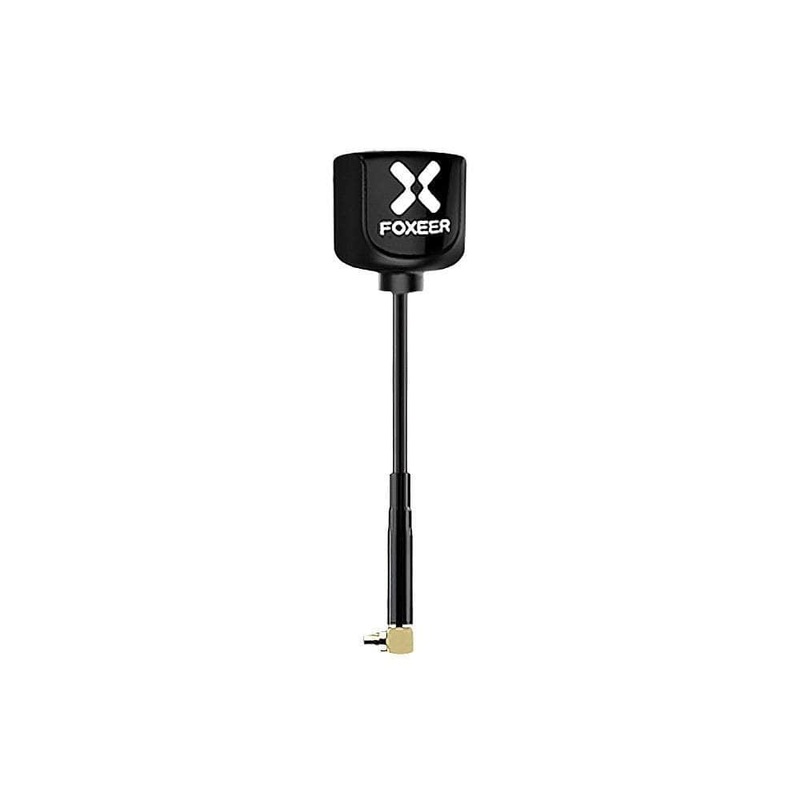

The Foxeer Lollipop V4 5.8GHz 90 MMCX RHCP Antenna is the next version bringing crystal-clear FPV video feed. Classic Foxeer durability and excellent signal performance. With a center frequency of 5.7GHz and 2.6dBi gain, this antenna delivers reliable, high-efficiency transmission across the 5.56GHz range. Perfect for upgrading or repairs.
Check out all ourVTX antennasand ourFoxeer Selection!
Features
- Compact design with 90 MMCX connectors
- Rugged PC+ABS case for durability
- Optimized for 5.8GHz FPV systems
- High-performance 2.6dBi gain
- Includes 2 antennas
- Excellent axial ratio
Specifications
- SWR: 1.07 at center frequency
- Bandwidth: 5.5GHz 6GHz
- Dimensions: 11 60mm
- Center Frequency: 5.7GHz
- Radiation Efficiency: 98%
- Case Material: PC+ABS
- Connector: 90 MMCX
- Axial Ratio: Close to 1
- Weight: 4.5g (each)
- Polarization: RHCP
- Gain: 2.6dBi
Includes
- 2x Foxeer Lollipop V4 5.8GHz 90 MMCX Antenna – RHCP
