Overview
The Foxeer Micro Lollipop is a 5.8G FPV goggles antenna with RHCP polarization and an angle SMA connector. It is designed with a compact Micro Lollipop form factor and a flexible cable for easier installation.
Key Features
- Micro Lollipop: smaller, lighter but stronger
- Fashion design, durable structure
- Adopted imported PC+ABS material, can withstand high strength
- Root reinforcement design, 360 protection
- Flexible cable, easy to bend and install
- Tested VSWR diagram provided (example markers: 5.5000000 GHz / 1.4345; 6.0000000 GHz / 1.3813; sweep start 500 MHz, stop 7 GHz; IFBW 70 kHz; 2020-04-02 17:03)
Specifications
| Center Frequency | 5.7GHz |
| Gain | 2.5dBi |
| Axial Ratio | Close to 1 |
| Band Width | 5.5G~6GHz |
| Radiation Efficiency | 98% |
| SWR | 1.06 at Center Frequency |
| Connector | Angle SMA |
| Dimension | 11*150mm |
| Cable Length | 133mm |
| Polarization | RHCP |
| Case Material | PC+ABS |
| Cable | SFX086 |
| Weight | 9g |
Applications
- 5.8G FPV goggles antenna replacement or upgrade
For compatibility questions (SMA interface, polarization matching, or cable routing), contact [email protected] or visit https://rcdrone.top/.
Details

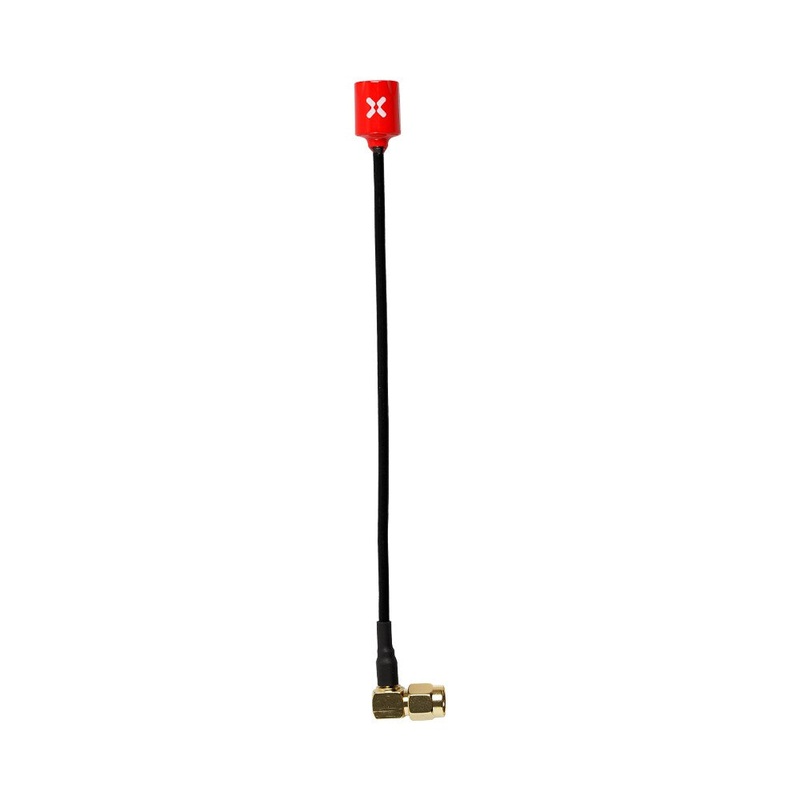

The Foxeer Micro Lollipop FPV antenna uses a long coax lead with a right-angle SMA connector for easy goggle or receiver hookups.
The Micro Lollipop omni antenna uses a flexible cable with reinforced strain relief and a right-angle SMA connector for easier fitting on FPV goggles.
Tested VSWR results show SWR around 1.381.43 at 5.56.0GHz across a 500MHz7GHz sweep.
