Overview
The GEPRC 915M/2.4G Dual-Band T Antenna is an antenna designed for ELRS dual-band receivers, supporting both 915MHz and 2.4GHz reception. It allows switching between frequency bands without changing the antenna on an ELRS dual-band receiver.
Key Features
- 915M + 2.4G dual-band design for ELRS dual-band receivers
- IPEX1 connector
- Compact T-antenna form factor
- Measured SWR reference points provided (see Specifications)
Specifications
| Model | GEPRC 915M/2.4G Dual-Band T Antenna |
| Frequency | 915M + 2.4G Dual-Band |
| Gain | 2dBi |
| SWR | < 2.0 |
| Connector | ipex1 |
| Coaxial cable length | 80mm |
| Dimension (marked) | 38mm |
| Weight | 5.3g |
| SWR measurement points | 915.00000 MHz: 1.5232; 2.4000000 GHz: 1.5123; 2.5000000 GHz: 1.3801 |
Applications
- ELRS dual-band receiver installations requiring 915MHz and 2.4GHz support
For compatibility questions (e.g., confirming IPEX1 fitment or coax length for a specific receiver), contact [email protected] or visit https://rcdrone.top/.
Details

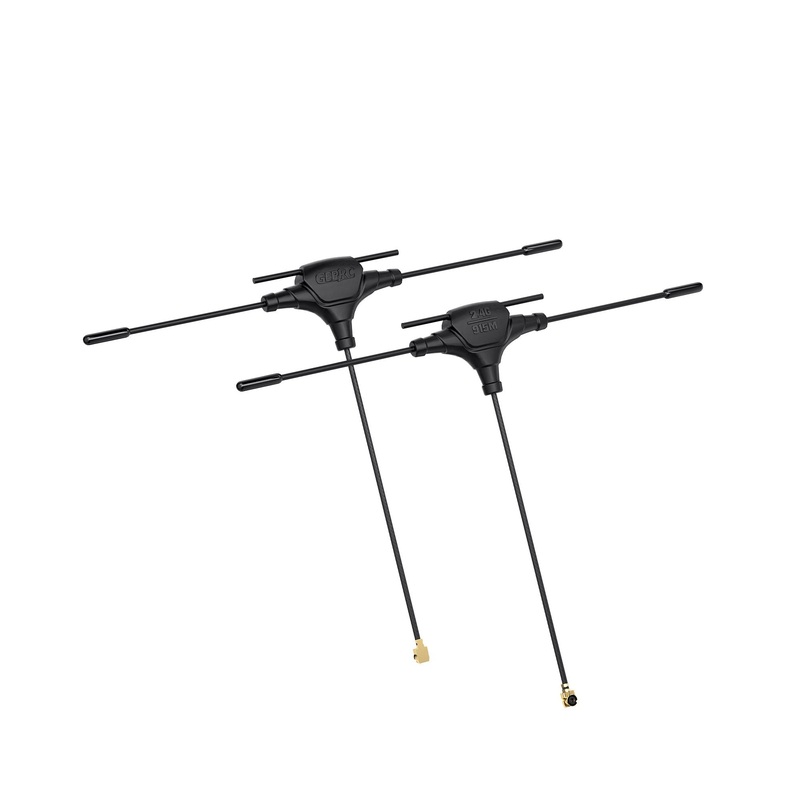

The GEPRC dual-band T antenna uses a compact T-shaped element and long coax leads to simplify receiver antenna routing.
GEPRC 915M/2.4G dual-band T antenna uses an IPEX1 connector with an 80mm coax cable and weighs 5.3g.
The dual-band T antenna is measured at about 1.52 SWR on 915MHz and around 1.511.38 SWR across 2.42.5GHz.
The GEPRC dual-band T antenna uses an IPEX1 connector with an 80mm lead for flexible mounting in compact builds.
The GEPRC dual-band T antenna features a compact center housing with long horizontal elements and a coax lead for clean installs.
The GEPRC dual-band T antenna uses a compact T-shaped element with a coax lead and micro connector for easy mounting in tight builds.
