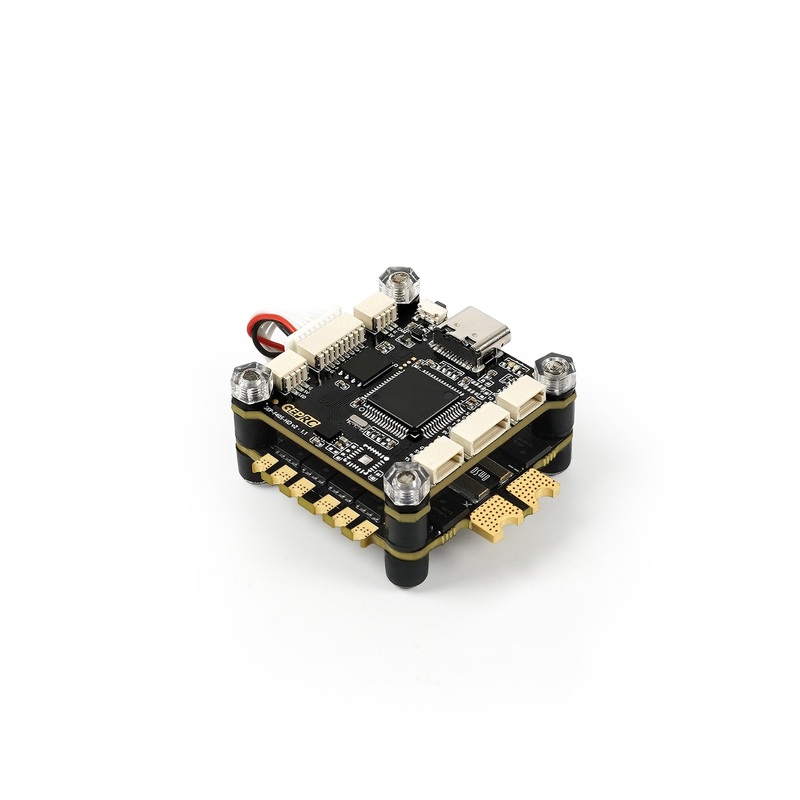

GEPRC TAKER F405 BLS 50A Stack

Are You Looking For GEPRC TAKER F405 BLS 50A Stack In Australia?

GEPRC TAKER F405 BLS 50A STACK is a plug-and-play stack system specially designed for DJI Air Unit. Use STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS50A-4IN1 ESC to have a more delicate hand feeling experience.

The GEPRC TAKER F405 BLS 50A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of soldering. Upgrade the type-C USB connector, which greatly improves the service life of the socket and reduces the risk of poor contact. 9V 2.5A + 5V 3A dual independent BEC, more stable power supply for external devices.

Features

• Use mainstream STM32F405 chip
• Equipped with the latest 42688-P gyroscope
• 16M black box storage
• Integrated LC filter
• Upgrade type-C USB interface
• Directly plugged into the DJI Air Unit
• With GEP-BLS50A-4IN1 ESC, the flying feel is silky
• Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
• 9V 2.5A + 5V 3A dual independent BEC

Specifications

GEP-F405-HD v2 Flight Controller

• MCU: STM32F405
• IMU: ICM42688-P(SPI)
• Air Unit Connection: Direct plugging into DJI Air Unit
• Black Box: 16M onboard
• USB Connector: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V,9V dual BEC
• Firmware Target: GEPRCF405
• Size: 36.836.8mm, hole 30.530.5mm4mm hole becomes 3mm after using a silicone shock-absorbing circle.
• Input Voltage: 3-6S LiPo
• UART: 6
• Power Filter: Integrated LC filter
• Weight: 7.7g

GEP-BLS50A-4in1 ESC

• Input Voltage: 3-6S Lipo
• Galvanometer: Support
• Continuous Current: 50A
• Burst Current: 55A5s
• Support Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600
• Size: 42.939.7mm, hole30.530.5mm4mm hole becomes 3mm after using the silicone shock-
• absorbing circle.
• Weight:13.7g
• Target: G_H_30

Includes

• 1 x Flight Controller
• 1 x ESC
• 1 x Capacitor
• 1 x DJI Air Unit Adapter Cable
• 1 x Flight Controller Adapter Cable
• 1 x XT60 Power cable
• 4 x M3*30 Screws
• 4 x M3*24 Screws
• 8 x Nylon nuts
• 8 x Silicone grommets
• 2 x sh1.0 4pinsilicone cable
• 1 x Camera connection cable

The DC structure better suitable for the O3 internal recording, as there are no propeller is visible during flight. While the X structure is more suitable for freestyle, though you are gonna see propeller is slightly visible during O3 internal recording.

Not fan of DC? well check out True X versioninstead and all ourGEPRC products!

Features

• The DC structure is suitable for O3 internal recording when no propeller is visible during flight, while the X structure is more suitable for freestyle when the propeller is slightly visible during O3 internal recording.
• Upgraded lens aluminum alloy side plate, durable and more visual impact
• Built-in Bluetooth, supports mobile phone wireless connection for parameter tuning
• Developed specifically for freestyle with a squashed X arm design.
• The HD version uses DJIs new O3 VTX, clear image, stable signal, low-latency, long-distance, and supports up to 4K/60fps recording
• SPAN G50A BLHeli_32 4in1 50A ESC with the latest GEPRC 2107.5 motor, with strong power, fast response speed, precise throttle control, and smooth flight experience
• Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment
• With an independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter
• Two kinds of 3D printing camera mounts are designed, which can be mounted with a full range of GoPro cameras, as well as Naked GoPro 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear
• Add coral orange and emerald green colors to the O3 version to add more colors to your flight
• MARK5 O3 is optimized for freestyle, with a smoother flight experience

Specifications

• Model: MARK5 DC HD O3 Quadcopter
• Brand: GEPRC
• Frame: GEP-MK5D O3/GEP-MK5X O3
• Wheelbase: 225mm
• Top plate: 2.5mm
• Bottom plate: 2.5mm
• Arm plate: 5mm
• FC system: SPAN F722-BT-HD V2
• MCU: STM32F722
• Gyro: 42688-P(SPI)
• OSD: BetaFlight OSD w/AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• VTX: DJI O3 Air Unit
• Camera: DJI O3
• Propeller: Gemfan 5136
• Antenna: DJI O3 antenna
• Motor: SPEEDX2 2107.5-1960KV (6S Version) / SPEEDX2 2107.5-2450KV4S Version
• Weight: 426.0g (MARK5 DC HD O3 including 3D printed parts)
• Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G
• Recommended Battery: LiPo 4S 1300mAh-1800mAh (4S Version) / LiPo 6S 1050mAh-1550mAh(6S Version)

Includes

• 1x MARK5 DC HD O3 Quadcopter
• 4x Gemfan 5136 propellers
• 1x Battery strap M15x250mm
• 2x Battery strap M20x220mm
• 2x Battery Silicone Pads
• 1x 3D printed parts
• 1x Action cam mount holder
• 1x Set of screws
• 1x Set of screwdrivers
• 1x Antenna fixed tube
