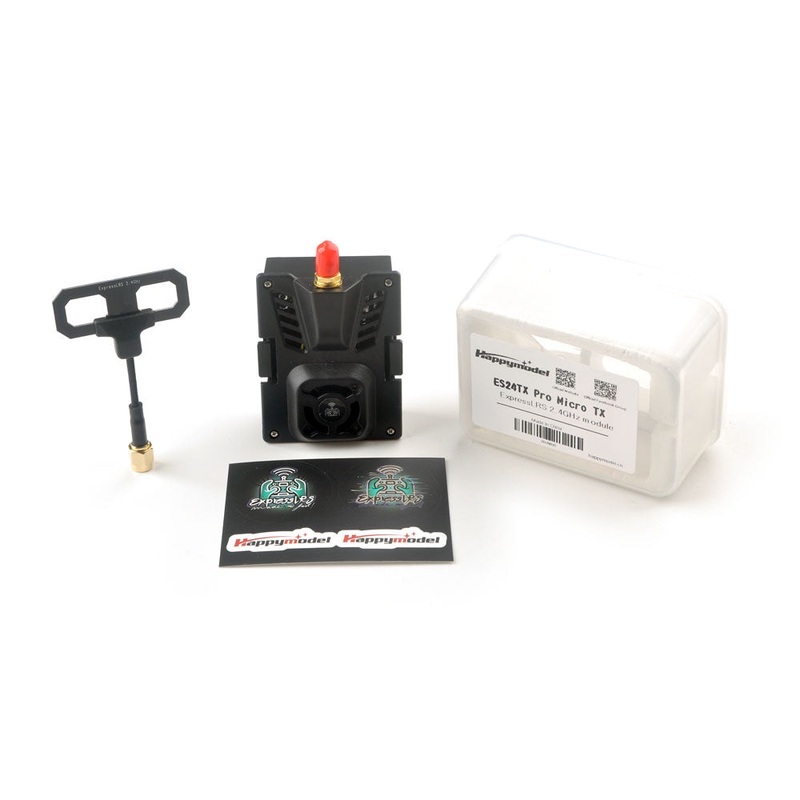

Happymodel ES24TX Pro Micro ExpressLRS ELRS TX module

Are you looking to buy a HappyModel ES24TX Pro Micro ExpressLRS ELRS TX module in Australia?

The ES24TX Pro Micro ExpressLRS TX module is a upgrade version of ES24TX module.
Max output up to 1000mw, reserved Cooling Fan and RGB LED module. This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay. This time the ES24TX Pro module comes completely assembled before out of factory.

Specifications

• Regulatory Domain: ISM2400
• MCU:ESP32(main),ESP8285(aux,as espbackpack)
• RF chip: SX1281IMLTRT
• JR standard 5pin socket
• Frequency Range: 2400 MHz to 2500 MHz
• Maximum receive refresh rate: 500Hz
• Minimum receiver refresh rate: 25Hz
• RF Output Power: >30dBm
• Power supply voltage: 5v~10v
• Weight: 51gram(without antenna
• Dimension: 70mm*49mm*32.5mm
• Antenna gain: 4.18dBi

Firmware

• Target: HappyModel_ES24TX_Pro_Series_2400_TX

Includes

• 1x ES24TX Pro Micro TX module
• 1x Happymodel 2.4GHz Moxon antenna
