HappyModel ExpressLRS EPW6 TCXO ELRS 2.4GHz 6CH PWM RC Receiver Fixed Wing

Specifications:

• Item:Happymodel EPW6 TCXO 2.4GHz pwm receiver
• ESP8285, SX1280/1281
• Antenna connector: IPEX MHF 1/U.FL
• 6x PWM outputs
• RF Frequency: 2.4GHz (2400~2480MHz)
• Telemetry power: 12dbm
• Receiver protocol: PWM or CRSF
• Input voltage: +5v~8.4v
• PCB size: 19mm x 17.5mm
• Weight: 1.49g / antenna

Firmware:

• Target option1: GenericESP82856xPWM2.4GhzRX
• PWM receiver via 1~6 PWM outputs
• Target option2:HappyModel_EP_2400_RX
• CRSF Serial receiver via TX and RX
• Firmware update via WIFI

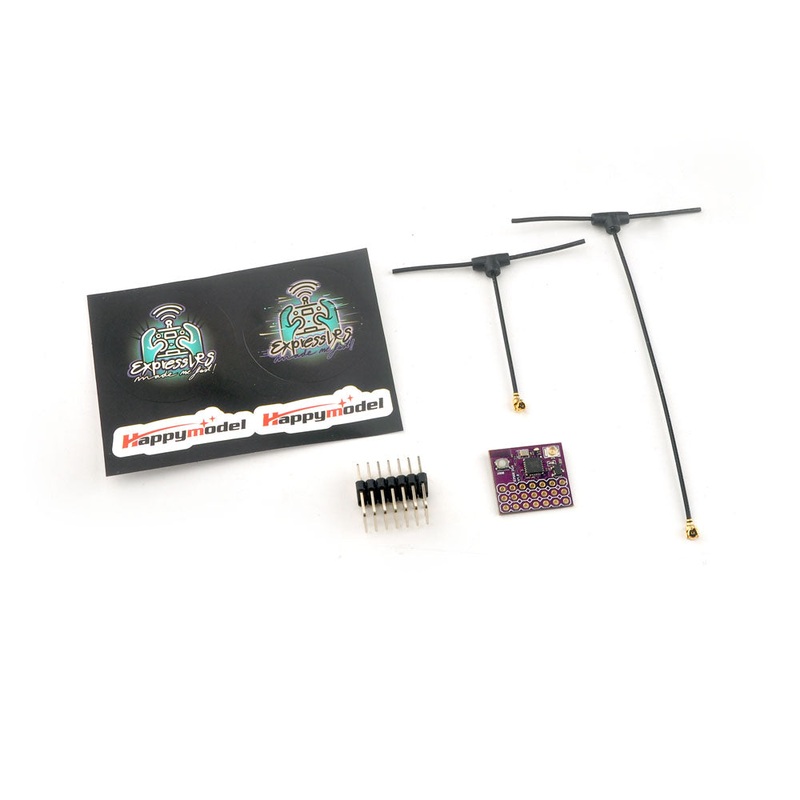

Package Included:

• 1x Happymodel EPW6 TCXO 2.4GHz PWM Receiver
• 2x 2.4GHz antenna
• 3x 7pin 2.54mm
