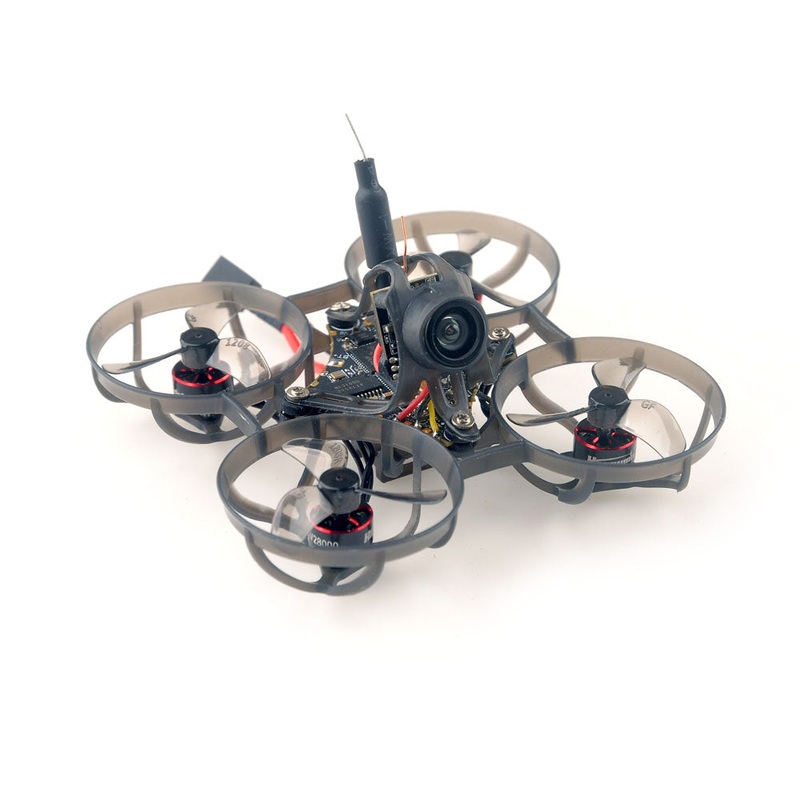

HappyModel Mobula6 2024 1S 65mm Ultra Light Micro FPV TinyWhoop ELRS (PH2.0)
*This is PH2.0 Battery Connector Version
Features:
- AIO Flight controller with Serial ELRS Receiver and 5.8G Openvtx
- Super light 1S 65mm Brushless whoop only 17.7g
- Equipment with the lightest brushless motors-SE0702 only 1.46gram
- FX17-B 1/3 CMOS 800TVL Camera awesome footage
- Smooth and powerful
- Compatible with 1S Lipo/LIHV (PH2.0)
- Note: Battery Not Included
Specifications:
- Brand Name: Happymodel
- Item Name: Mobula6 2024 1S 65mm ultra-light micro FPV Whoop
- Wheelbase: 65mm
- Size: 81mm*81mm*37mm
- Weight: 17.7g
Receiver Option:
- 2.4GHz ExpressLRS Serial receiver
Spare Parts Specifications:
|
Motor |
Mode: SE0702 KV28000 |
|
Propellers |
Materials: PC Inch: 31mm Pitch:0.8 in Weight:0.21g Mounthole diameter:1mm |
|
Flight controller |
SuperX ELRS AIO 5-IN-1 Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH),ESP32-PICO-D4 Built-in Betaflight OSD(SPI Control) Built-in current meter sensor, current meter scale 1175 |
|
Onboard 4in1 ESC |
Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Recommend ESC Startup power value to min1100/max1200 |
|
Onboard SerialExpressLRS receiver |
Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V3.0 Antenna: Enameled copper wireantenna Receiver protocol: Serial_basedCRSF Compatible with ExpressLRS V3.x.xTX Module Could flash single ELRS receiver firmware by Wifi ExpressLRS firmware target:Generic ESP32 2.4Ghz Rx and VTx |
|
Onboard 5.8g VTX |
Firmware version: OPENVTX MSP VTX PIT Mode support Channels:40ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U.FL |
|
FX17-B Camera |
Model: FX17-B Image Sensor: 1/3″ CMOS Horizontal Resolution: 800TVL FOV 150 Signal System: NTSC Net Weight: 1.5g Dimensions: L14mm*W14mm*H13mm |
Package Includes:
|
Item Name |
Qty |
|
Mobula6 2024 1S 65mm whoop Drone Frame +Canopy |
1 |
|
SuperX ELRS AIO 5-IN-1 Flight controller |
1 |
|
SE0702 KV28000 brushless motor |
4 |
|
Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw) |
1 |
|
FX17-B 1/3 CMOS 800TVL camera NTSC 4:3 |
1 |
|
Onboard 5.8G 25mw~400mw VTX |
1 |
|
Spare canopy |
1 |
|
Propeller disassemble tool |
1 |
|
Screwdriver |
1 |
