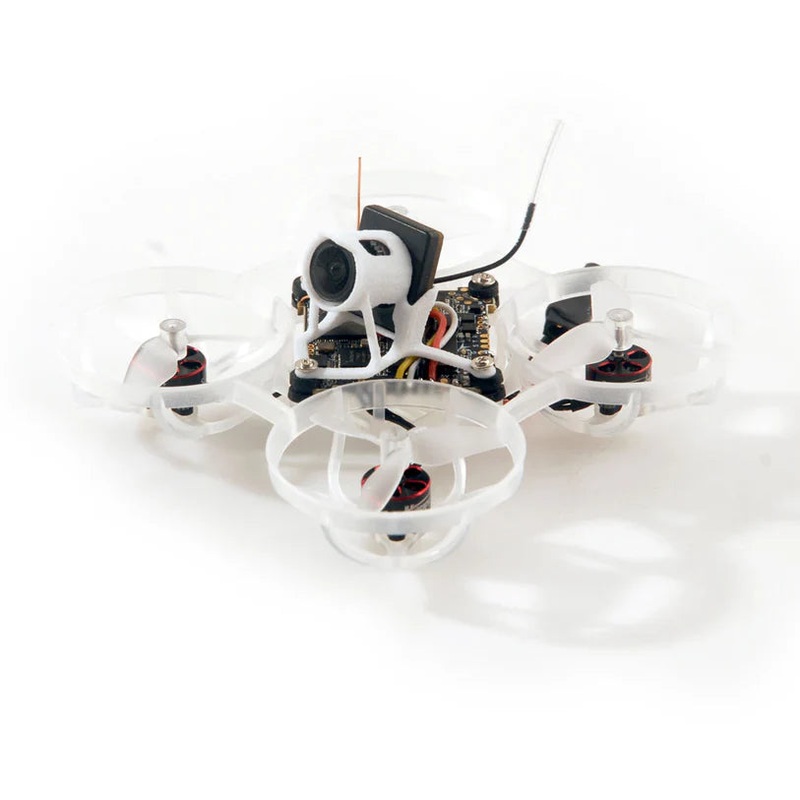

This Mobula6 Freestyle comes equipped with the amazing HDZero system, letting you fly FPV in much higher quality than analog!
Item may vary from pictures
Package Includes:
1x Mobula6 Freestyle (HDZero Edition)
1x Propeller Set
1x Hardware Packet
Motor Specifications:
Mode: SE0702 KV28000
Configuration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:1mm
Motor Dimension(Dia.*Len):9.5mm*14mm
Weight(g):1.49g
Cells(Lipo):1S only
Propeller Specifications:
Materials: PC
Inch: 31mm
Pitch: 0.8 in
Weight: 0.21g
Mount hole diameter: 1mm
Flight controller Specifications:
SuperX HD ELRS
Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update
Bluejay ESC Firmware ready
Built-in 5V 1A BEC
Built-in voltage detection
No betaflight analog osd chip
ESC Specifications:
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 Bluejay, 0.19, 48kHz
Default protocol: DSHOT300
RX Specifications:
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1 receiver
Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through
VTX Specifications:
Composite HD Video interface
1S Input
25mW/200mW RF output
25.525.2 M2 soft mounting
Antenna Retention
32.432.5mm (29x29mm inner)
4.5grames/4mm Thickness (w/o shielding)
Camera Specifications:
Image Sensor : 1/3
Resolution: 720@60fps 4:3
LENS: FOV D:150 H:120 V:98
Shutter: Rolling Shutter
Net Weight: 1.6g (With Cable)
Dimensions: L14mm*W14mm*H13mm
