Description

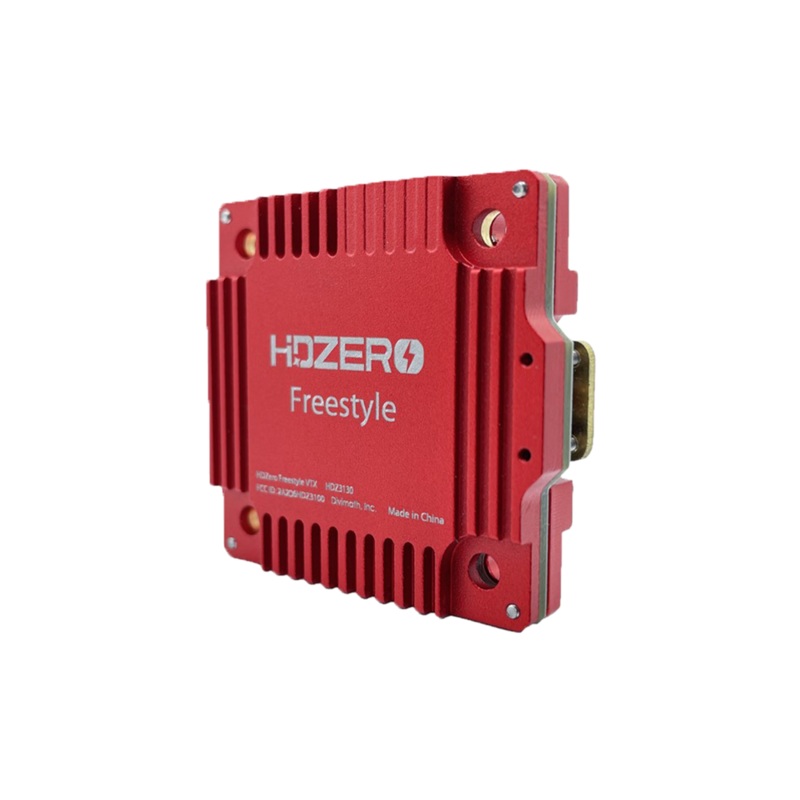

The HDZero Freestyle VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 1000mw on 5.8GHz. It works with the HDZero/Shark Bytegoggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.
The VTX includes an U.FL RHCP antenna. The power input range is 2S 6S. Though the VTX integrates a surge protection circuit, a large capacitor (450+uF) parallel with battery leads is mandatory to smooth the power supply of the whole quad.
Specifications
Manual download
|
Model: |
HDZero Freestyle |
|
SKU |
HDZ3130 |
|
Frequency: |
5.725-5.850GHz |
|
Resolution Default: |
1280*720@60fps |
|
RFpower |
25mw/200mw/500mw/1000mw |
|
RF Connector: |
Secured U.FL |
|
VideoConnector: |
Secured MIPI |
|
FCprotocol |
MSP Canvas Mode/SmartAudio |
|
Size: |
40mm x 42mm x 10mm |
|
Weight: |
28g |
|
Power: |
6-15W |
|
Power input |
7V-26V(2S-6S) |
|
Mounting |
30.5mm x 30.5mm M3holes |
Includes
HDZero FreestyleVTX * 1;
HDZero RHCP Antenna * 1;
Power/ UartCables* 1
u.FL Antenna Retention Screws * 2/Plate * 1
MIPIRetention Screws * 2/Plate * 1
Important Notes:
- The Freestyle VTX consumes up to 15W. If it is connected with FC, make sure the FC has enough current. For example, the FC has 10V, it needs minimum 1.5A current output.
- Removing the heat sink is not recommended because it is part of the design.
