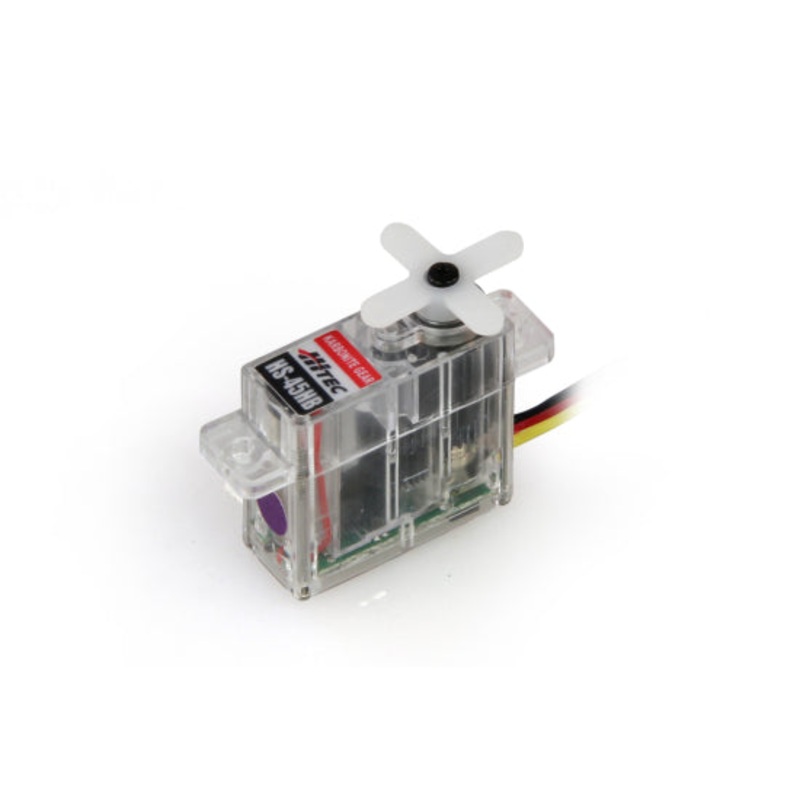

Hitecs HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.
Specifications
Motor Type: 3 Pole
Bearing Type: Top Ball Bearing
Speed (4.8V/6.0V): 0.14 / 0.12 sec @ 60 deg.
Torque oz./in. (4.8V/6.0V): 14 / 17
Torque kg./cm. (4.8V/6.0V): 1.0 / 1.2
Size in Inches: 0.92 x 0.38 x 0.88
Size in Millimeters: 23.37 x 9.65 x 22.35
Weight ounces: 0.28
Weight grams: 7.94
Advanced Servo Specifications
Control System: +Pulse Width Control 1500usec Neutral
Operating Voltage Range: 4.8V – 6V
Operating Temperature Range: -20C to +60C (-4F to +140F)
Idle Current: 8mA
No Load Running Current (4.8V/6.0V): 100mA/60
Stall Current (4.8V/6.0V): 440mA
Dead Band Width: 5usec
Potentiometer Type: 2 Slider/Direct Drive
Connector Wire Length: 250mm (9.84 in)
Connector Wire Gauge: 28AWG
