Hobbywing X6SE Motor Specification
Key Parameters
| Parameter | Specification |
|---|---|
| Max Thrust | 6.2 kg |
| Rated Thrust | 2.2 kg |
| System Weight | 385 g |
| Recommended Battery | 6S LiPo |
| Compatible Tube Diameter | 25 mm |
Additional Specifications
| Parameter | Specification |
|---|---|
| Propeller Weight | 66 g |
| System Efficiency | 10.5 g/W |
| Endurance Time | 60+ minutes |
| Compatible Propeller Size | 22 x 7.0 inches |
| Operating Temperature | 0 to 50C |
| Protection Class | IP43 |
| System Weight (including cables) | 385 g |
Hobbywing X6SE MotorFeatures
- Modular Design: The motor and ESC are designed in a modular fashion for easy maintenance and replacement.
- High Efficiency: Optimized for high efficiency, providing reliable and sustained performance.
- Lightweight: With a system weight of just 385 g, it offers excellent power-to-weight ratio.
- Smart LED Light: Integrated LED lights for enhanced visibility and status indication.
- CAN Communication Interface: Integrated CAN communication for intelligent management and compatibility with mainstream flight controllers including APM, Pixhawk, and DJI.
Applications
- Flight Training: Ideal for training new pilots.
- Educational Purposes: Suitable for educational training and demonstrations.
- Aerial Photography: Perfect for stable and high-quality aerial shots.
- Logistics Delivery: Suitable for lightweight logistics and delivery applications.
Hobbywing X6SE motors are designed to meet the demanding needs of various educational and commercial applications, offering exceptional performance, reliability, and versatility.

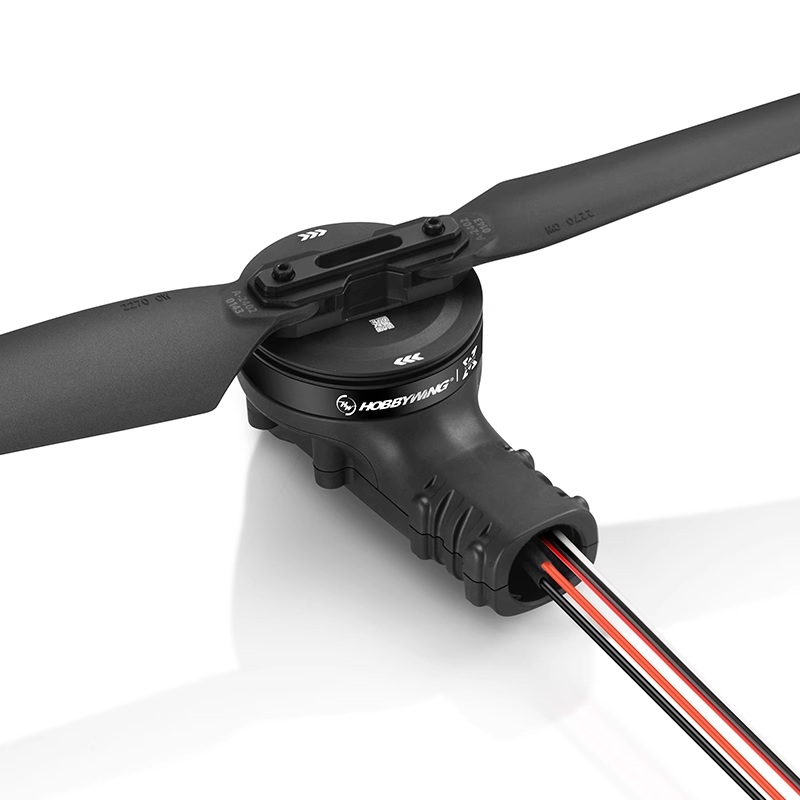

Hobbywing X6SE Motor: A 6.2KG max thrust, integrated power system suitable for educational and training drones. The motor features 25mm rotor diameter, 2.2kg weight, and 3859KV rating.
Hobbywing X6SE Motor: A powerful integrated power system designed for education and training drones, featuring a maximum thrust of 6.2 kg and suitable for applications such as aerial photography and videography. Key specifications include a propeller diameter of 22*7.0 inches, a motor size of 25mm, and an operating range of 0-50.9C degrees with a current draw of approximately 2.2 kg.
