Overview

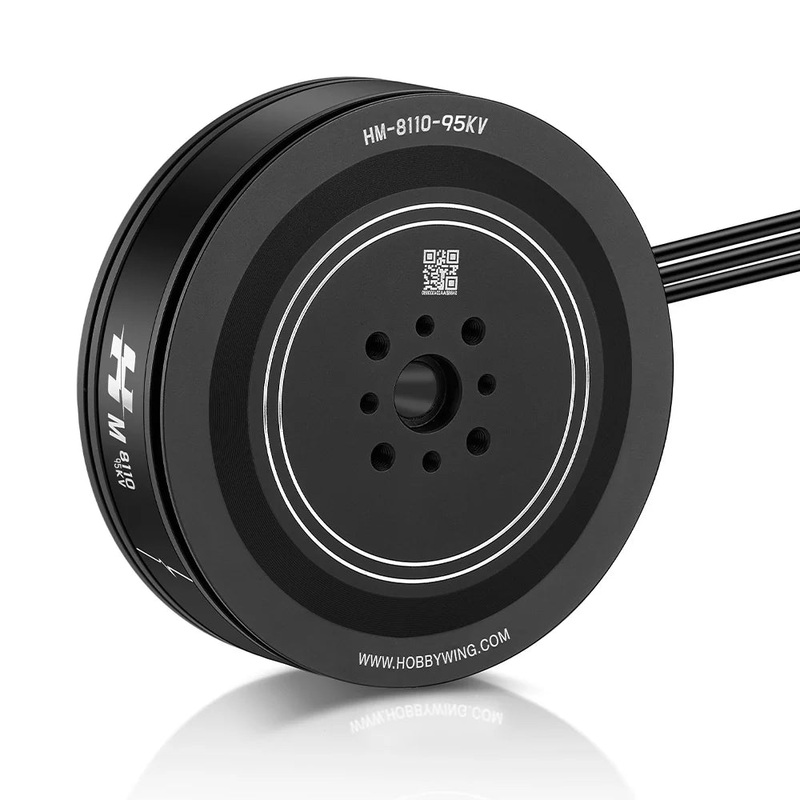

Hobbywing XRotor M8110 Motor for Industrial Multirotor Drone (M8110 HighProt) is a brushless outer-rotor motor designed for 12S LiPo industrial multirotor platforms. Two KV variants are offered (95 KV and 110 KV) with a protected outer-rotor housing (protection level IP45), waterproof bearings, and materials specified for high-temperature and high-reliability operation.
For pre-sales, technical support, or warranty inquiries contact [email protected].
Key Features
- Outer-rotor design with fully enclosed structure and IP45 protection level.
- Two KV options: 95 KV and 110 KV to match different payload and efficiency requirements.
- Stator punched from high-standard low-loss silicon steel with 180C magnet and 220C enamelled wire ratings.
- Waterproof bearings and dynamic balance 10mg for reduced vibration and longer life.
- Precision CNC rotor bracket and integrated bracket/shaft design to improve co-axiality and reduce part count.
- Multiple mounting patterns for propeller and motor mounting: prop mounting 4 x M4 @ D23 + 4 x M3 @ D20; motor mounting 4 x M4 @ D36.
- Recommended for 12S LiPo systems with XRotor Pro 60A / XRotor Pro H60A ESCs and MSC-series propellers.
Specifications
| Parameter | 95 KV | 110 KV |
|---|---|---|
| Model | M8110 HighProt | |
| KV | 95 | 110 |
| Motor size | Diameter 87.1 mm H 28.9 mm | |
| Stator size | Diameter 81.0 mm | |
| Stator process | High-standard silicon steel sheet, rust proof, 180C high-temperature resistance paint-coat | |
| Enamelled wire temperature rating | 220C | |
| Magnet temperature rating | 180C | |
| Isolation test | 500 V AC high-voltage resistance test | |
| Protection level | IP45 | |
| Slot & Pole | 36N42P | |
| Dynamic balance | 10 mg | |
| Bearing | Waterproof bearing | |
| Motor axle diameter | Shaft sleeve 10 mm | |
| Prop mounting dimensions | 4 x M4 @ D23 + 4 x M3 @ D20 | |
| Motor mounting dimensions | 4 x M4 @ D36 | |
| Battery (recommended) | 12S LiPo | |
| No-load current | 1.1 A | 1.27 A |
| Maximum current (Non-hermetic ambient temperature 25C) | 43.2 A | 39.2 A |
| Max power | 1992 W | 1803 W |
| Max thrust | 11.3 kg | 11.0 kg |
| Resistance | 132.9 mOhm | 112.3 mOhm |
| Wire size | 16WG | 16AWG |
| Wire length | 100 mm | |
| Weight (with wire) | 315 g | 317 g |
| Rated power input | 400 W | |
| Rated power output | 340 W |
Applications
Recommended propellers: MSC 29 x 9.5 / MSC 30 x 9.8 / MSC 32 x 10.5. Recommended ESC: XRotor Pro 60A 14S (or XRotor Pro H60A 14S). Recommended battery: 12S LiPo. Expected thrust per rotor: 3.04.0 kg. Typical quadrotor takeoff weight range with these motors: 12.016.0 kg. The motor is intended for industrial multirotor drone platforms requiring long endurance and high payload capacity.
Performance
M8110 95KV+MSC 30×9.8 Load performance parameters
M8110 95KV+MSC 30×9.8 Motor Propeller Pull Test Data
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(Nm) |
Power Output(W) |
Temperature() |
|---|---|---|---|---|---|---|---|---|---|---|
|
46V (12S LiPo) |
MSC 30×9.8 |
33% |
1281 |
1.9 |
89.6 |
1366 |
14.3 |
0.45 |
76.1 |
68.0 |
|
35% |
1421 |
2.2 |
101.3 |
1433 |
14.0 |
0.49 |
86.1 |
|||
|
37% |
1575 |
2.5 |
114.8 |
1505 |
13.7 |
0.54 |
97.6 |
|||
|
39% |
1743 |
2.8 |
130.1 |
1580 |
13.4 |
0.60 |
110.6 |
|||
|
42% |
2015 |
3.4 |
156.5 |
1698 |
12.9 |
0.69 |
133.0 |
|||
|
45% |
2311 |
4.1 |
186.9 |
1818 |
12.4 |
0.79 |
158.8 |
|||
|
48% |
2626 |
4.8 |
221.2 |
1939 |
11.9 |
0.89 |
188.0 |
|||
|
51% |
2956 |
5.6 |
259.3 |
2057 |
11.4 |
1.00 |
220.4 |
|||
|
54% |
3298 |
6.5 |
301.1 |
2172 |
11.0 |
1.12 |
256.0 |
|||
|
57% |
3650 |
7.5 |
346.4 |
2282 |
10.5 |
1.23 |
294.5 |
|||
|
60% |
4008 |
8.6 |
395.1 |
2388 |
10.1 |
1.35 |
335.8 |
|||
|
63% |
4371 |
9.7 |
447.0 |
2490 |
9.8 |
1.47 |
380.0 |
|||
|
66% |
4736 |
10.9 |
502.2 |
2588 |
9.4 |
1.59 |
426.9 |
|||
|
69% |
5105 |
12.2 |
560.7 |
2683 |
9.1 |
1.71 |
476.6 |
|||
|
72% |
5477 |
13.5 |
622.6 |
2776 |
8.8 |
1.84 |
529.2 |
|||
|
75% |
5853 |
14.9 |
688.3 |
2870 |
8.5 |
1.96 |
585.1 |
|||
|
78% |
6237 |
16.5 |
758.3 |
2963 |
8.2 |
2.09 |
644.5 |
|||
|
81% |
6631 |
18.1 |
833.2 |
3059 |
8.0 |
2.23 |
708.2 |
|||
|
84% |
7040 |
19.8 |
913.9 |
3157 |
7.7 |
2.37 |
776.8 |
|||
|
87% |
7472 |
21.8 |
1001.6 |
3259 |
7.5 |
2.52 |
851.4 |
|||
|
90% |
7933 |
23.8 |
1097.4 |
3363 |
7.2 |
2.68 |
932.8 |
|||
|
100% |
9708 |
31.6 |
1454.1 |
3628 |
6.7 |
3.22 |
1236.0 |
The above data is measured by HobbyWing laboratory at room temperature 25, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M8110 95KV+MSC 32×10.5 Load performance parameters
M8110 95KV+MSC 32×10.5 Motor Propeller Pull Test Data
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(Nm) |
Power Output(W) |
Temperature() |
|---|---|---|---|---|---|---|---|---|---|---|
|
46V (12S LiPo) |
MSC 32×10.5 |
33% |
1654 |
2.5 |
116.5 |
1307 |
14.2 |
0.64 |
99.0 |
85.0 |
|
35% |
1812 |
2.8 |
130.3 |
1364 |
13.9 |
0.69 |
110.7 |
|||
|
37% |
1996 |
3.2 |
147.2 |
1428 |
13.6 |
0.76 |
125.1 |
|||
|
39% |
2202 |
3.6 |
167.3 |
1498 |
13.2 |
0.84 |
142.2 |
|||
|
42% |
2545 |
4.4 |
203.0 |
1609 |
12.5 |
0.97 |
172.5 |
|||
|
45% |
2918 |
5.3 |
245.1 |
1723 |
11.9 |
1.11 |
208.3 |
|||
|
48% |
3313 |
6.4 |
293.1 |
1836 |
11.3 |
1.25 |
249.1 |
|||
|
51% |
3722 |
7.5 |
346.3 |
1946 |
10.7 |
1.40 |
294.3 |
|||
|
54% |
4141 |
8.8 |
404.2 |
2050 |
10.2 |
1.56 |
343.5 |
|||
|
57% |
4562 |
10.1 |
466.2 |
2150 |
9.8 |
1.72 |
396.2 |
|||
|
60% |
4985 |
11.6 |
531.9 |
2243 |
9.4 |
1.87 |
452.1 |
|||
|
63% |
5406 |
13.1 |
601.2 |
2332 |
9.0 |
2.03 |
511.0 |
|||
|
66% |
5825 |
14.6 |
674.0 |
2417 |
8.6 |
2.18 |
572.9 |
|||
|
69% |
6243 |
16.3 |
750.4 |
2498 |
8.3 |
2.34 |
637.8 |
|||
|
72% |
6661 |
18.0 |
830.9 |
2579 |
8.0 |
2.49 |
706.3 |
|||
|
75% |
7082 |
19.9 |
916.2 |
2658 |
7.7 |
2.65 |
778.7 |
|||
|
78% |
7510 |
21.9 |
1007.2 |
2738 |
7.5 |
2.81 |
856.1 |
|||
|
81% |
7950 |
24.0 |
1105.4 |
2820 |
7.2 |
2.98 |
939.6 |
|||
|
84% |
8408 |
26.3 |
1212.5 |
2904 |
6.9 |
3.15 |
1030.6 |
|||
|
87% |
8890 |
28.9 |
1330.5 |
2991 |
6.7 |
3.34 |
1130.9 |
|||
|
90% |
9405 |
31.7 |
1461.9 |
3079 |
6.4 |
3.53 |
1242.6 |
|||
|
100% |
11354 |
43.3 |
1992.2 |
3301 |
5.7 |
4.22 |
1693.4 |
The above data is measured by HobbyWing laboratory at room temperature 25, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M8110 110KV+MSC 29×9.5 Load performance parameters
M8110 110KV+MSC 29×9.5 Motor Propeller Pull Test Data
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(Nm) |
Power Output(W) |
Temperature() |
|---|---|---|---|---|---|---|---|---|---|---|
|
46V (12S LiPo) |
MSC 29×9.5 |
33% |
1420 |
2.4 |
108.5 |
1461 |
13.1 |
0.50 |
92.2 |
76.0 |
|
35% |
1581 |
2.6 |
120.5 |
1533 |
13.1 |
0.55 |
102.4 |
|||
|
37% |
1761 |
2.9 |
135.5 |
1612 |
13.0 |
0.61 |
115.2 |
|||
|
39% |
1957 |
3.3 |
153.5 |
1696 |
12.7 |
0.68 |
130.5 |
|||
|
42% |
2276 |
4.0 |
186.1 |
1827 |
12.2 |
0.78 |
158.2 |
|||
|
45% |
2619 |
4.9 |
224.8 |
1960 |
11.7 |
0.90 |
191.1 |
|||
|
48% |
2980 |
5.8 |
268.9 |
2092 |
11.1 |
1.02 |
228.6 |
|||
|
51% |
3353 |
6.9 |
317.7 |
2220 |
10.6 |
1.15 |
270.0 |
|||
|
54% |
3735 |
8.0 |
370.3 |
2342 |
10.1 |
1.27 |
314.8 |
|||
|
57% |
4122 |
9.3 |
426.3 |
2458 |
9.7 |
1.40 |
362.3 |
|||
|
60% |
4511 |
10.5 |
485.2 |
2567 |
9.3 |
1.53 |
412.5 |
|||
|
63% |
4902 |
11.9 |
547.2 |
2672 |
9.0 |
1.66 |
465.1 |
|||
|
66% |
5294 |
13.3 |
612.2 |
2772 |
8.6 |
1.79 |
520.4 |
|||
|
69% |
5687 |
14.8 |
680.8 |
2869 |
8.4 |
1.93 |
578.7 |
|||
|
72% |
6084 |
16.4 |
753.4 |
2965 |
8.1 |
2.06 |
640.4 |
|||
|
75% |
6487 |
18.0 |
831.0 |
3061 |
7.8 |
2.20 |
706.3 |
|||
|
78% |
6898 |
19.9 |
914.5 |
3159 |
7.5 |
2.34 |
777.3 |
|||
|
81% |
7323 |
21.8 |
1005.3 |
3260 |
7.3 |
2.49 |
854.5 |
|||
|
84% |
7767 |
24.0 |
1104.7 |
3364 |
7.0 |
2.64 |
939.0 |
|||
|
87% |
8235 |
26.4 |
1214.2 |
3474 |
6.8 |
2.81 |
1032.1 |
|||
|
90% |
8735 |
29.0 |
1334.9 |
3586 |
6.5 |
2.99 |
1134.7 |
|||
|
100% |
10624 |
38.5 |
1772.7 |
3870 |
6.0 |
3.60 |
1506.8 |
The above data is measured by HobbyWing laboratory at room temperature 25, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M8110 110KV+MSC 30×9.8 Load performance parameters
M8110 110KV+MSC 30×9.8 Motor Propeller Pull Test Data
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(Nm) |
Power Output(W) |
Temperature() |
|---|---|---|---|---|---|---|---|---|---|---|
|
46V (12S LiPo) |
MSC 30×9.8 |
33% |
1468 |
2.3 |
106.8 |
1454 |
13.7 |
0.51 |
90.8 |
81.0 |
|
35% |
1614 |
2.6 |
120.5 |
1525 |
13.4 |
0.56 |
102.5 |
|||
|
37% |
1787 |
3.0 |
137.2 |
1606 |
13.0 |
0.62 |
116.7 |
|||
|
39% |
1984 |
3.4 |
156.6 |
1692 |
12.7 |
0.68 |
133.1 |
|||
|
42% |
2313 |
4.1 |
190.4 |
1827 |
12.2 |
0.79 |
161.8 |
|||
|
45% |
2672 |
5.0 |
229.2 |
1962 |
11.7 |
0.91 |
194.9 |
|||
|
48% |
3051 |
5.9 |
273.0 |
2093 |
11.2 |
1.03 |
232.0 |
|||
|
51% |
3441 |
7.0 |
321.2 |
2219 |
10.7 |
1.16 |
273.0 |
|||
|
54% |
3837 |
8.1 |
373.6 |
2338 |
10.3 |
1.29 |
317.6 |
|||
|
57% |
4236 |
9.3 |
429.9 |
2452 |
9.9 |
1.42 |
365.4 |
|||
|
60% |
4634 |
10.6 |
489.8 |
2560 |
9.5 |
1.55 |
416.3 |
|||
|
63% |
5031 |
12.0 |
553.1 |
2665 |
9.1 |
1.68 |
470.2 |
|||
|
66% |
5427 |
13.5 |
620.0 |
2767 |
8.8 |
1.81 |
527.0 |
|||
|
69% |
5825 |
15.0 |
690.5 |
2866 |
